Vishay 1 kV 40 A Fast Recovery Switching Diode 2-Pin T-Module VS-T40HFL100S05

Free Delivery in India | Lowest Global Shipping Charges

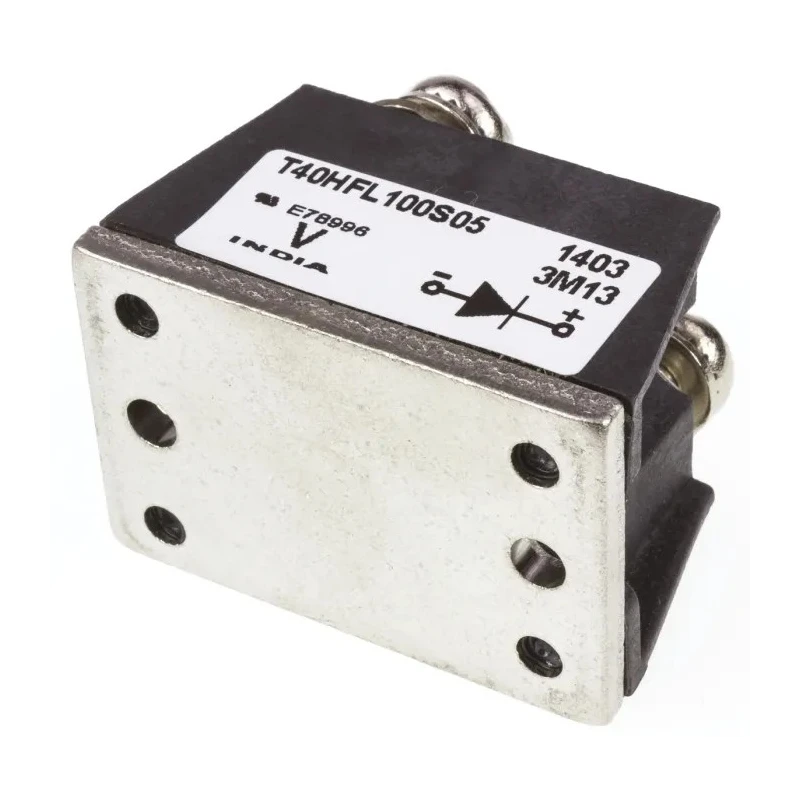

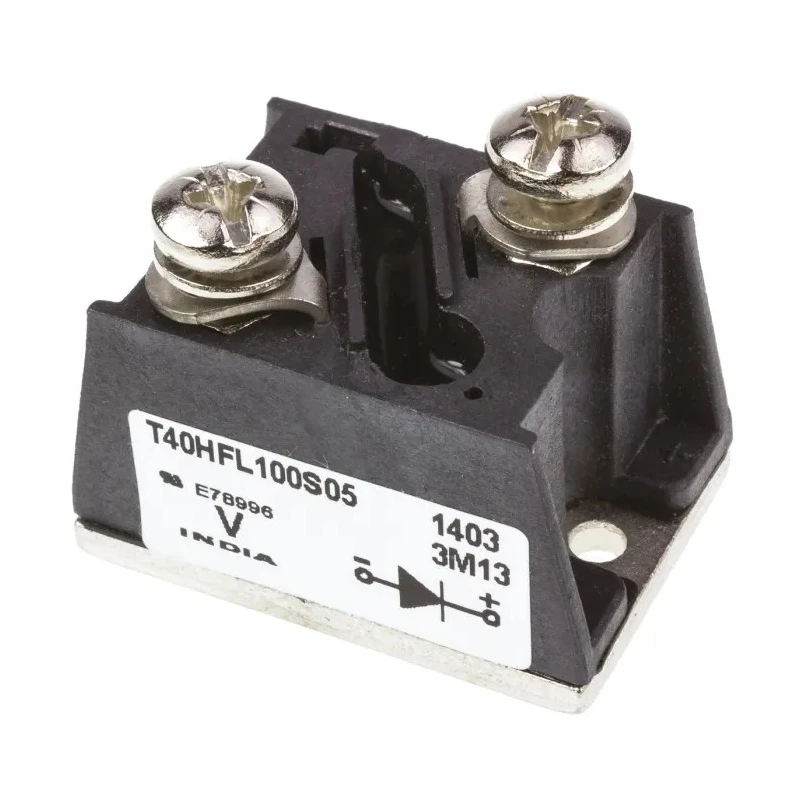

Vishay 1 kV 40 A Fast Recovery Switching Diode 2-Pin T-Module VS-T40HFL100S05

Name: Vishay 1 kV 40 A Fast Recovery Switching Diode 2-Pin T-Module VS-T40HFL100S05
Brand: Vishay
SKU: 182992
Price: 37.88 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	25mm
Brand	Vishay
Height	25mm
Length	41mm
Model	VS-T40HFL100S05
Width	27mm
Mount Type	Panel
Series	VSX
Maximum Operating Temperature	125°C
Package Type	T-Module
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	40A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	500A
Maximum Forward Voltage Vf	1.6V
Peak Reverse Recovery Time trr	500ns
Vishay 1 kV 85 A Diode Switching 2-Pin T-ModuleBrand	Vishay

Key Features

The diode features fast recovery time characteristics suitable for high-speed switching applications.
The base plate is electrically isolated allowing for compact assembly with common heatsinks.
It supports a maximum continuous forward current of 40A and peak reverse repetitive voltage of 1kV.
The module is designed with a 2-pin configuration and a T-module package for easy panel mount installation.
Operating temperature ranges from -40°C to 125°C ensuring robustness in industrial environments.
Peak reverse recovery time is 500ns, enhancing switching efficiency.
Maximum forward voltage is 1.6V and peak surge current rating is 500A.
The device complies with RoHS standards and is manufactured in India.

Product Description

Vishay VS-T40HFL100S05 is a high-performance fast recovery diode designed as a single diode in a 2-pin T-module package. It delivers a peak reverse repetitive voltage of 1 kV and can handle a maximum continuous forward current of 40 A, making it ideal for power switching and fast switching needs.

This diode module features an electrically isolated metal base plate enabling common heatsink use and compact mechanical designs for rapid assembly. It is optimized for use as a freewheel diode in power electronics applications including self-commutated inverters, DC choppers, motor control systems, inductive heating, and electronic welding equipment.

The device exhibits a fast peak reverse recovery time of 500 ns and a maximum forward voltage drop of 1.6 V, contributing to improved switching efficiency and reduced losses in high-speed circuits. It is engineered to operate reliably in harsh industrial environments with an operating temperature range from -40°C to 125°C.

The module's T-package format simplifies mounting on panels with a 2-pin configuration. It has physical dimensions approximately 41 mm in length, 27 mm in width, and 25 mm in height, and includes RoHS compliance, ensuring environmental safety standards are met.

Typical applications include industrial power supplies, motor control, welding equipment, and fast switching circuits requiring robust, efficient diode modules. Its electrical isolation and compactness enhance design flexibility and reliability for industrial, manufacturing, and power electronics systems.

Fast recovery time characteristics suitable for power switching applications. Electrically isolated base plate for flexible heatsink integration. High forward current capacity up to 40A and voltage rating of 1 kV. Compact 2-pin T-module package supports panel mounting.

Wide operating temperature range (-40°C to 125°C) for industrial use. RoHS compliant and manufactured in India. Explore EnvMart’s extensive range of semiconductor diodes and rectifiers for industrial, laboratory, and power electronics applications.
