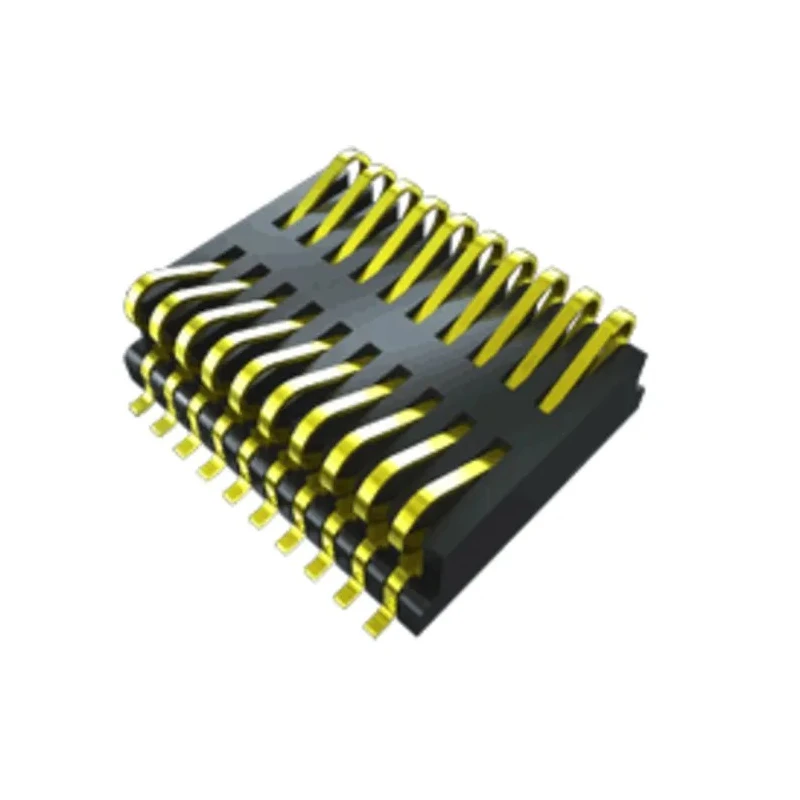

Samtec FSI Series Straight Surface PCB Header 40 Contacts 1 mm Pitch 2 Row Shrouded FSI-120-03-G-D-M-AB

Free Delivery in India | Lowest Global Shipping Charges

Samtec FSI Series Straight Surface PCB Header 40 Contacts 1 mm Pitch 2 Row Shrouded FSI-120-03-G-D-M-AB

Name: Samtec FSI Series Straight Surface PCB Header 40 Contacts 1 mm Pitch 2 Row Shrouded FSI-120-03-G-D-M-AB
Brand: Samtec
SKU: 215969
Price: 14.3 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	220V
Brand	Samtec
Orientation	Straight
Current	2.8A
Model	FSI-120-03-G-D-M-AB
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	FSI
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Elevated profile	3 mm, 6 mm, 10 mm

Key Features

Constructed with liquid crystal polymer housing for high durability.
Features gold-plated bronze contacts ensuring reliable electrical connection.
Supports continuous current rating of 2.8 A for moderate power applications.
Operates within a temperature range from -55°C to 125°C for broad environmental tolerance.
Designed for board-to-board connector systems with straight orientation.
Surface mount type ensures ease of PCB integration.
Contact gender is male with solder termination type.
Includes elevated profiles of 3 mm, 6 mm, and 10 mm to accommodate different stacking requirements.

Product Description

Samtec FSI-120-03-G-D-M-AB is a high-quality PCB header from the FSI series designed for electronic components and power connectors applications. This straight surface-mount header has 40 male contacts arranged in 2 rows with a compact 1 mm pitch, ideal for board-to-board connections in dense PCB layouts.

The housing is made of liquid crystal polymer, offering excellent mechanical strength and thermal stability between -55°C and 125°C, suitable for harsh industrial and commercial environments.

Contacts are crafted from bronze and plated with gold, providing superior conductivity and corrosion resistance. The solder termination ensures reliable and robust connections to the PCB.

The header supports up to 2.8 A continuous current and a voltage rating of 220 V, making it suitable for medium power electronic devices and systems. Available elevated profile options of 3 mm, 6 mm, and 10 mm accommodate various stacking heights, enhancing design flexibility.

This shrouded connector system ensures secure mating and protection against accidental damage or shorts. Constructed with liquid crystal polymer housing for high durability. Features gold-plated bronze contacts ensuring reliable electrical connection.

Supports continuous current rating of 2.8 A for moderate power applications. Operates within a temperature range from -55°C to 125°C for broad environmental tolerance. Designed for board-to-board connector systems with straight orientation.

Surface mount type ensures ease of PCB integration. Contact gender is male with solder termination type. Voltage rating up to 220 V for various electronic uses. Includes elevated profiles of 3 mm, 6 mm, and 10 mm to accommodate different stacking requirements.

This product is ideal for applications in industrial electronics, telecommunications, computing hardware, and electronic manufacturing sectors. Explore more electronic connectors and PCB Headers in the Electronics & Electricals category on EnvMart.
