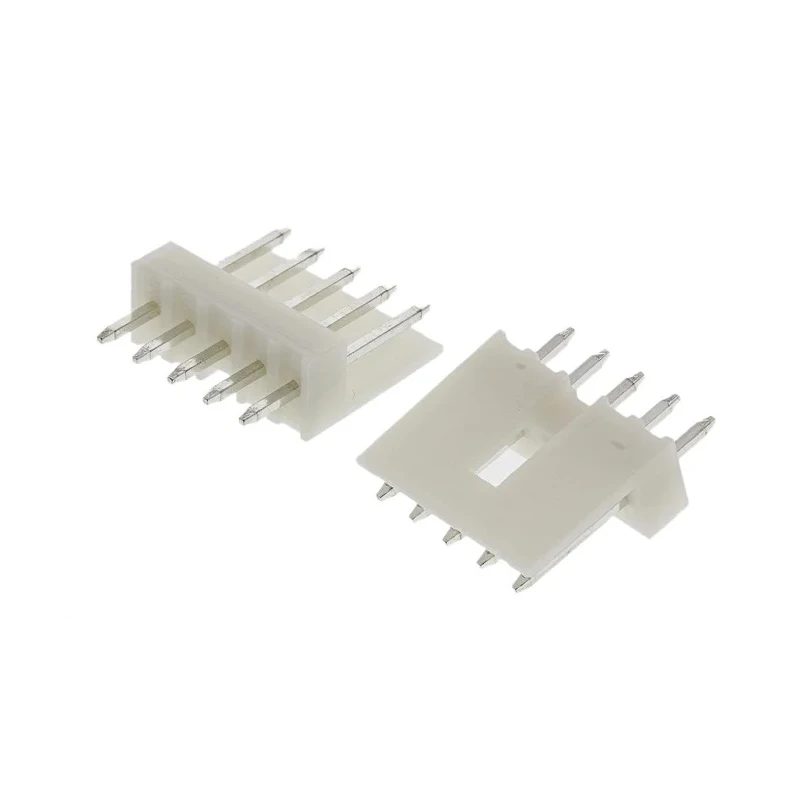

TE Connectivity EI Series Straight Through Hole PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171825-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity EI Series Straight Through Hole PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171825-5

Name: TE Connectivity EI Series Straight Through Hole PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171825-5
Brand: TE Connectivity
SKU: 218548
Price: 0.48 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	TE Connectivity
Orientation	Straight
Current	5A
Model	171825-5
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	EI
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a straight orientation and one row configuration.
Shrouded design ensures secure polarized locking latch connection.
Constructed from durable nylon housing material rated UL 94V-0.
Contacts are made of brass with tin plating for enhanced conductivity and corrosion resistance.
Operates safely between -65°C and 105°C temperature range.
Supports operating voltage up to 350V and current rating of 5A.
Designed for through hole mounting with solder termination type.
Compact 2.5 mm pitch spacing optimizes PCB density in electronic assemblies.

Product Description

TE Connectivity 171825-5 EI Series Straight Through Hole PCB Header is engineered for high-density wire-to-board applications. Its 5 contact, 2.5 mm pitch, single row shrouded configuration delivers reliable and secure connections essential in modern electronic assemblies.

The connector housing is fabricated from UL 94V-0 rated nylon, providing excellent electrical insulation and fire resistance. The tin-plated brass contacts ensure robust conductivity and corrosion resistance under challenging industrial environments.

This PCB header features a polarized locking latch mechanism to prevent misalignment and accidental disconnection, optimizing production efficiency and reliability.

Operating within a wide temperature range of -65°C to 105°C, it is suitable for demanding applications in industrial automation, instrumentation, power supply circuits, and electronic control systems.

With a through hole solder mounting design and a compact 2.5 mm pitch, this header supports high-density PCB layouts while maintaining mechanical stability and electrical integrity.

Features a straight orientation and one row configuration. Shrouded design ensures secure polarized locking latch connection. Constructed from durable nylon housing material rated UL 94V-0. Contacts are made of brass with tin plating for enhanced conductivity and corrosion resistance.

Operates safely between -65°C and 105°C temperature range. Supports operating voltage up to 350V and current rating of 5A. Designed for through hole mounting with solder termination type. Compact 2.5 mm pitch spacing optimizes PCB density in electronic assemblies.

Male contact gender suitable for mating with compatible receptacles. Ideal for electronics manufacturing, industrial automation, and power distribution circuit boards.

This TE Connectivity PCB header is a reliable choice for OEMs and electronic manufacturers requiring durable and efficient connector solutions. Suitable for industrial, laboratory, and commercial electronic applications.
