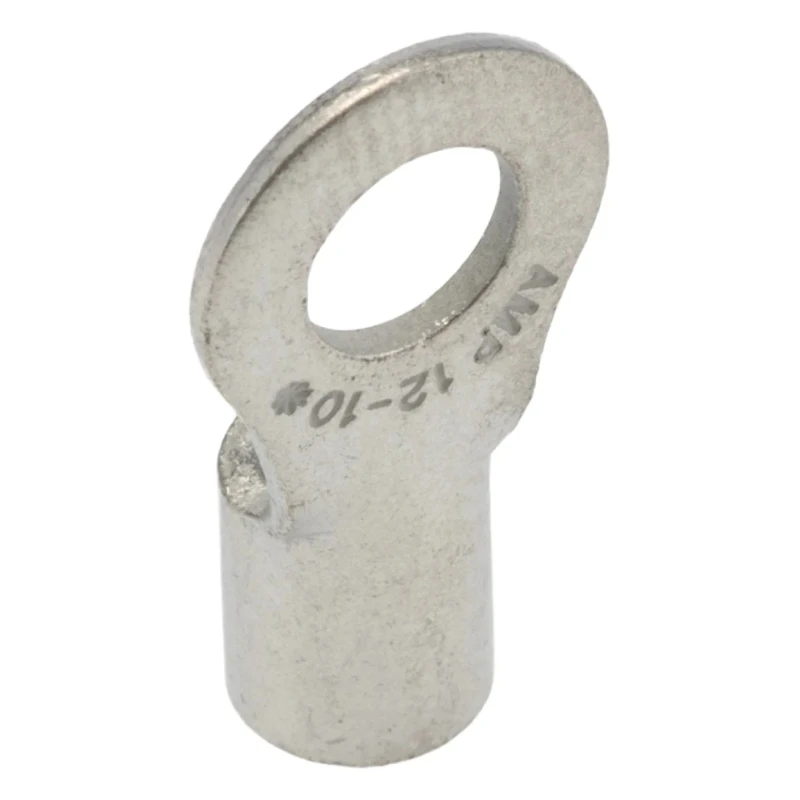

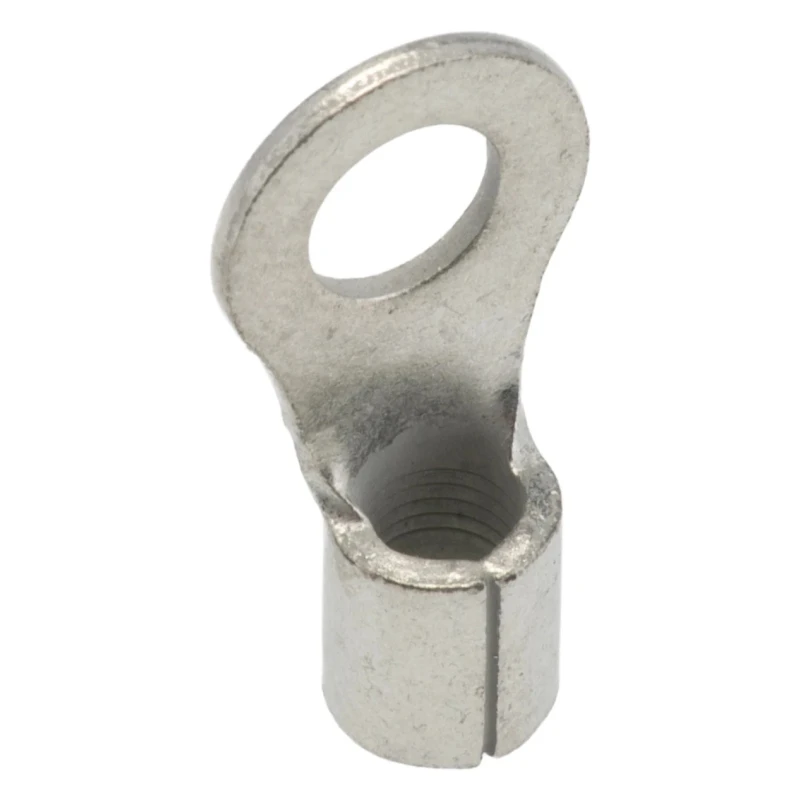

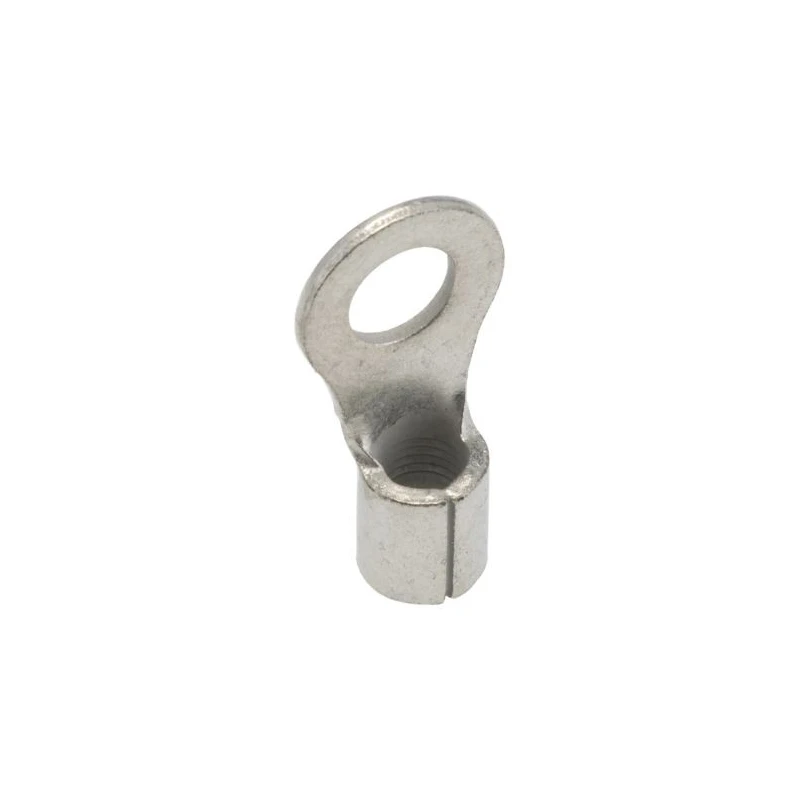

TE Connectivity Solistrand Uninsulated Crimp Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size 33457
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.99mm |
| Model | 33457 |
| Insulation | Uninsulated |
| Overall Length | 19.43mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 9.53mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Made from high conductivity copper for optimal electrical performance.
- Electro tin plating improves resistance to corrosion.
- Robust design ensures durability in harsh environments.
- Brazed seams enhance barrel strength for industrial use.
- Serrated barrel interior maximizes tensile strength and electrical contact.
- Bell-shaped barrel entrance enables quick and easy wire insertion.
- Rated for maximum operating temperature of 170°C for reliable performance.
- Suitable for heavy equipment, motors, transformers, telecommunications, and control instruments.
Product Description
TE Connectivity 33457 Solistrand Uninsulated Crimp Ring Terminal is engineered for reliable electrical connections using M5 stud size with compatibility for wire sizes ranging from 12 AWG to 10 AWG. Constructed from fine grade copper, the terminal offers superior conductivity and performance in demanding applications.
The electro tin plating enhances corrosion resistance while the brazed seams provide increased mechanical strength around the barrel to withstand harsh industrial environments. The barrel's inner serrations ensure maximum tensile strength and electrical contact after crimping, while the bell-shaped mouth facilitates easy wire insertion, reducing installation time.
Operating up to 170°C, this crimp ring terminal supports a wide range of industrial applications including materials handling equipment, heavy machinery motors, transformers, switchgear, telecommunications systems, appliances, panel boxes, power supplies, and instrumentation control.
Constructed from high conductivity copper for excellent electrical performance. Electro tin plating for enhanced corrosion resistance. Robust brazed seams increase barrel strength for durability. Serrated internal barrel surface optimizes tensile strength and contact area.
Bell-shaped barrel mouth for efficient wire insertion. Rated for maximum operating temperature of 170°C. Ideal for motors, heavy equipment, power supplies, and telecommunications. Meets RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standards.
This product is part of the TE Connectivity SOLISTRAND range, designed to maintain superior performance even in challenging environments. Explore more TE Connectivity products and Ring Terminals on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp ring terminal is rated for a maximum operating temperature of 170°C, ensuring reliable performance in various applications.
It is compatible with wire sizes ranging from 12 AWG to 10 AWG, accommodating a variety of electrical connections.
The stud size for this model is M5, making it suitable for a range of mounting applications.
This terminal is constructed from high conductivity copper and features electro tin plating to enhance corrosion resistance.
The overall length of this terminal is 19.43mm, with an outer ring diameter of 9.53mm and an inner ring diameter of 5mm.
It meets RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standards, ensuring compliance with industry regulations.
The serrated barrel interior maximizes tensile strength and electrical contact after crimping, enhancing the reliability of connections.
The thickness of this terminal is 0.99mm, contributing to its robust design.
This model is suitable for heavy equipment, motors, transformers, telecommunications, and control instruments.
The bell-shaped barrel entrance facilitates quick and easy wire insertion, reducing installation time.
The country of origin for this crimp ring terminal is India.
Brazed seams enhance the barrel strength, making it suitable for use in harsh industrial environments.
