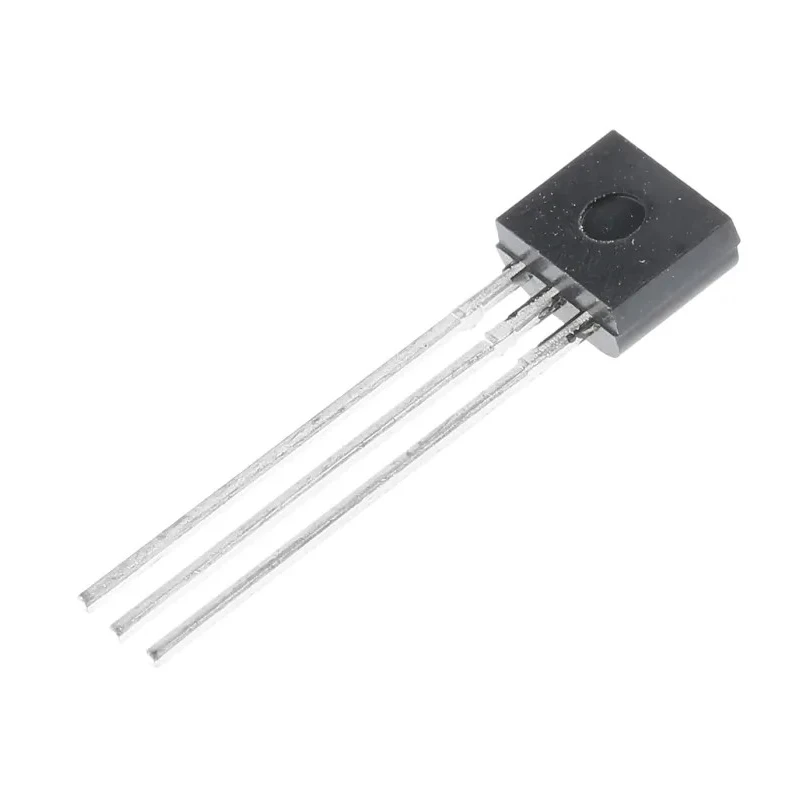

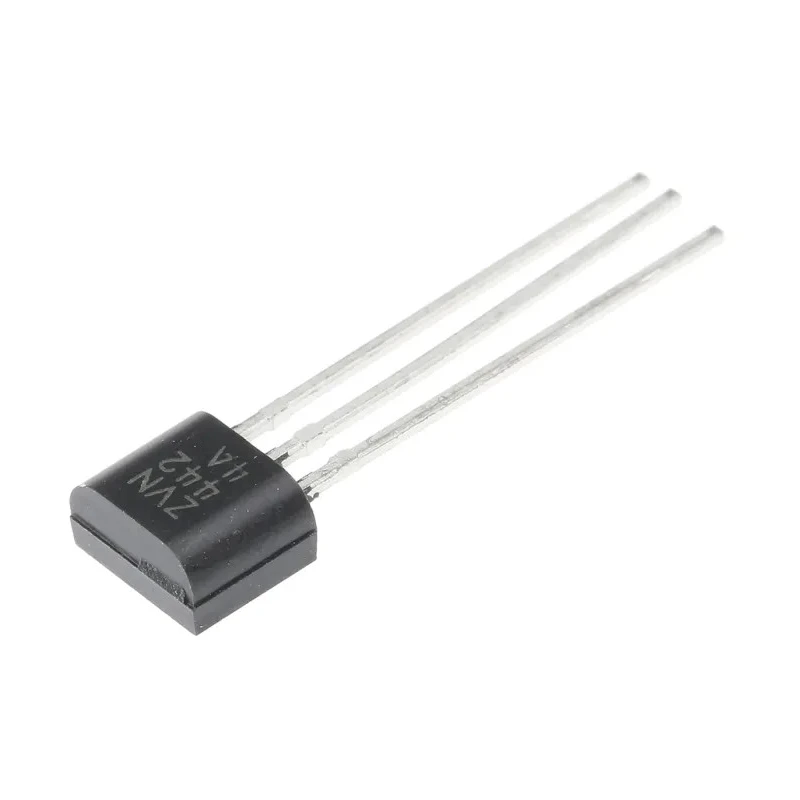

DiodesZetex N-Channel Enhancement MOSFET 3-Pin E-Line, 260 mA, 240 V ZVN4424A
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 4.01mm |
| Length | 4.77mm |
| Model | ZVN4424A |
| Width | 2.41mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | E-Line |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100, AEC-Q104, AEC-Q200, AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 260mA |
| Maximum Drain Source Voltage Vds | 240V |
| Maximum Drain Source Resistance Rds | 5.5Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 750mW |
| Maximum Gate Source Voltage Vgs | -40, +40V |
Key Features
- Maximum continuous drain current is 260 mA ensuring suitable current rating for low power circuits.
- Maximum drain-source voltage rated at 240 V for reliable high voltage operation.
- Enhancement type channel mode provides effective switching characteristics.
- 3-pin E-Line through hole mounting package enables easy PCB integration.
- Maximum power dissipation of 750 mW supports moderate thermal handling.
- Wide operating temperature range from -55°C to 150°C ensures versatility in harsh environments.
- Maximum gate-source voltage ranges from -40 to +40 V protecting gate integrity.
- Pin count of 3 simplifies circuit design and connectivity.
Product Description
DiodesZetex ZVN4424A is a high-quality N-Channel Enhancement MOSFET designed for semiconductor applications requiring reliable switching with moderate current and voltage handling. Housed in a 3-Pin E-Line through hole package, this device supports a maximum continuous drain current of 260 mA and operational drain-source voltage of up to 240 V. Its enhancement mode channel offers dependable control suitable for various electronic circuits.
The device features a compact footprint with dimensions of 4.77 mm length, 2.41 mm width, and 4.01 mm height, facilitating easy integration into PCB layouts. With a maximum power dissipation of 750 mW and a broad operating temperature range from -55°C to 150°C, it is well-suited for industrial, automotive, and general electronic applications. The maximum gate-source voltage tolerance is -40 V to +40 V, ensuring robust gate handling.
Designed for through hole mounting, the ZVN4424A simplifies assembly and circuit design with its 3-pin configuration. It meets stringent automotive standards including AEC-Q100, AEC-Q104, AEC-Q200, and AEC-Q101, making it a reliable choice for safety-critical environments.
Supports 260 mA continuous drain current for low power applications. Rated for 240 V drain-source voltage for high voltage tolerance. Enhancement mode channel for efficient switching. 3-pin E-Line through hole package for easy PCB mounting.
Max power dissipation of 750 mW handling moderate thermal loads. Operating temperature range of -55°C to 150°C for demanding environments. Gate-source voltage limit of -40 to +40 V protects device integrity. Compliant with multiple automotive quality standards.
Compact and robust physical dimensions.
This MOSFET is ideal for industrial electronics, automotive circuits, control systems, and semiconductor device manufacturing. Available as a new product, it ensures high reliability and quality for advanced functional designs. Explore the MOSFET category on EnvMart for compatible components and devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ZVN4424A supports a maximum continuous drain current of 260 mA, making it suitable for low power applications.
This model is rated for a maximum drain-source voltage of 240 V, ensuring reliable operation in high voltage applications.
It features an enhancement mode channel, which provides effective switching characteristics for various electronic circuits.
The dimensions of this MOSFET are 4.77 mm in length, 2.41 mm in width, and 4.01 mm in height, facilitating easy PCB integration.
It has a maximum power dissipation of 750 mW, which supports moderate thermal handling in applications.
The operating temperature range for this MOSFET is from -55°C to 150°C, allowing it to function in harsh environments.
The maximum gate-source voltage tolerance is -40 V to +40 V, which helps protect the gate integrity.
This model features a pin count of 3, simplifying circuit design and connectivity.
It is designed for through hole mounting, which facilitates easy assembly on printed circuit boards (PCBs).
The ZVN4424A meets several automotive quality standards including AEC-Q100, AEC-Q104, AEC-Q200, and AEC-Q101.
This MOSFET is ideal for industrial electronics, automotive circuits, control systems, and semiconductor device manufacturing.
The maximum drain-source resistance is specified at 5.5 Ω, which is relevant for its performance in circuits.
