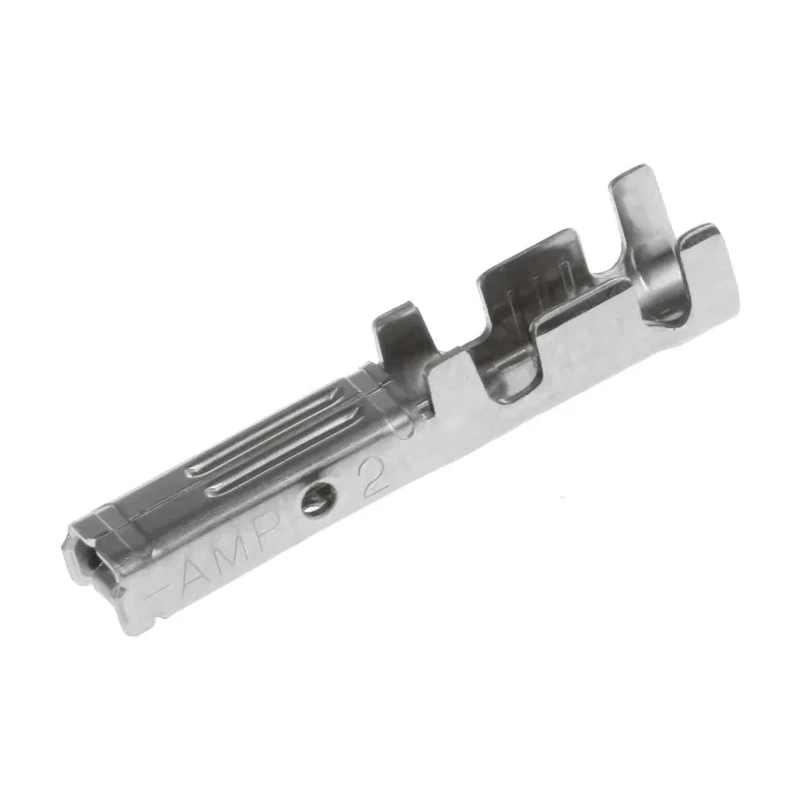

TE Connectivity Dynamic 3000 Series Female Crimp Terminal 16 AWG Min Crimp 14 AWG Max 917511-2

TE Connectivity 917511-2 Dynamic 3000 Series Female Crimp Terminal is engineered for high reliability in industrial and electronic applications. This crimp contact is designed specifically for use with the Dynamic 3000 connector housings, providing secure and reliable connections suitable for combined signal and power transmission.

Constructed from high-quality copper alloy with gold plating, the terminal offers excellent electrical conductivity along with corrosion resistance. The twist resistant box style design and three-point contact system ensure exceptional electrical reliability even in demanding environments.

The terminal supports a current capacity of 3A and accommodates wire sizes ranging from 16 AWG minimum to 14 AWG maximum, with a maximum contact resistance of 3 milliohms. It operates within a wide temperature range from -55°C up to 105°C, making it ideal for diverse industrial and manufacturing applications where reliability under extreme conditions is critical.

The 917511-2 terminal features a crimp termination type that is suited for environments with high vibration, ensuring consistent contact pressure and secure locking inside the connector housing. The length of each contact is 11.94mm, providing precise dimensional compatibility with the Dynamic 3000 series connectors. When inserted, a lance in the housing securely locks the contact, confirmed by an audible click, and the contact can be removed easily with proper tooling.

This product is manufactured in Japan to stringent quality standards, meeting the expectations for electrical and industrial connectors. The Dynamic 3000 series is widely used in industrial machinery for combined power and signal applications.

Designed for Dynamic 3000 connector housings with secure locking mechanism. Gold plated copper alloy material for enhanced conductivity and corrosion resistance. Rated current capacity of 3A with maximum contact resistance of 3 milliohms.

Operates reliably between -55°C and 105°C operating temperatures. Crimp termination type suitable for high vibration industrial environments. Length of each contact is 11.94mm ensuring precise fit within housing. Twist resistant box-type receptacle with three points of electrical contact for reliability.

Available in standard and high pressure contact pressure variants for varied application needs. Manufactured in Japan assuring quality and durability. Explore more from TE Connectivity and the complete range of crimp contacts and connector accessories here at EnvMart.
