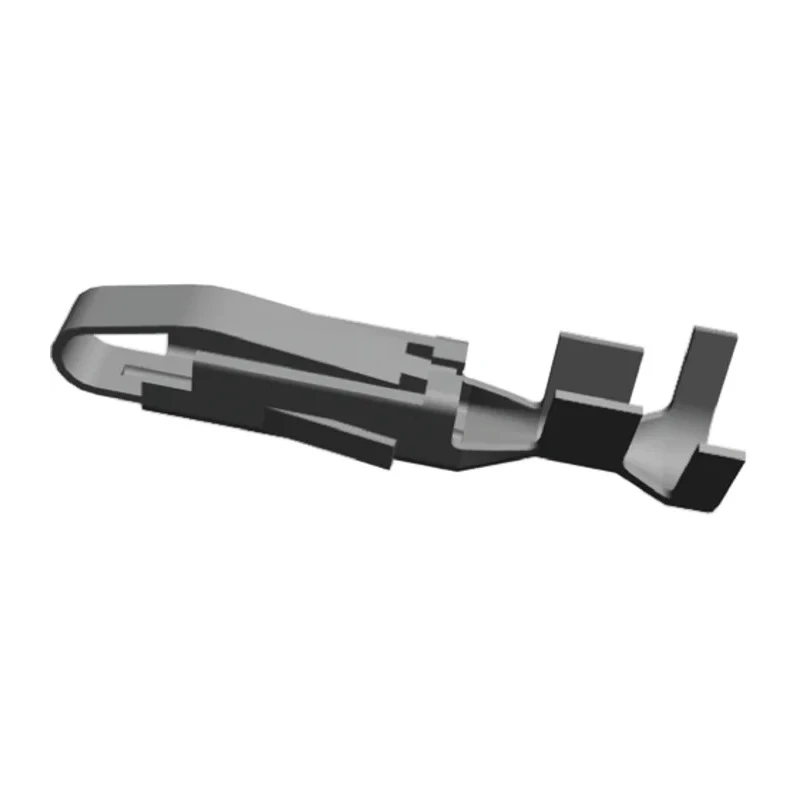

TE Connectivity Low Power Drawer Series Female Crimp Terminal, 7A Current, 18 AWG Min Crimp, 14 AWG Max, Gold 170314-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Length | 21mm |
| Model | 170314-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Low Power Drawer |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Standard Blind-Mate Drawer Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.9mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 14AWG |
| TE Connectivity Male to Female PCB Connector ContactBrand | TE Connectivity |
Key Features
- Supports a current rating of 7A for reliable electrical connections.
- Compatible with wire sizes ranging from 18 AWG minimum to 14 AWG maximum.
- Features gold-plated contacts for enhanced corrosion resistance and conductivity.
- Constructed with phosphor bronze contact material ensuring durability.
- Operates reliably in temperatures from -30°C to 105°C.
- Termination type is crimp for secure wire connection.
- Low power drawer series ensuring efficient connection in low current circuits.
- RoHS compliant, without specific certifications stated.
Product Description
TE Connectivity 170314-1 Low Power Drawer Series Female Crimp Terminal is engineered for use with standard blind-mate drawer connector housing, supporting a current rating of 7 amperes. Its design accommodates wire sizes from 18 AWG to 14 AWG, ensuring versatility for diverse electronic applications.
Gold-plated contacts provide excellent resistance against corrosion and improve electrical conductivity. The contact material, made from phosphor bronze, enhances mechanical strength and reliability under operational stress.
This terminal operates efficiently within a temperature range of -30°C to 105°C, making it suitable for various industrial, electronics manufacturing, and power connector applications.
The crimp termination type ensures a robust and secure wire connection, critical for maintaining signal integrity in sensitive electronic circuits. The terminal length is 21 mm, offering a compact form factor for tight installation spaces.
Designed primarily for electronic components and power connectors sector, it is ideal for applications in industrial automation, electronics assembly, and repair scenarios where standard blind-mate drawer connectors are used.
Supports 7A current rating. Gold-plated contacts for durability. Accommodates 18 AWG to 14 AWG wire sizes. Phosphor bronze contact material. Operating temperature between -30°C and 105°C. 21 mm length compact design. Crimp termination for secure connections.
Low Power Drawer Series connector type. Suitable for industrial and electronics manufacturing environments. Explore EnvMart's extensive range of power connectors and Crimp Terminals to find compatible components and enhance your electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 7A, making it suitable for low current circuits.
It accommodates wire sizes ranging from 18 AWG minimum to 14 AWG maximum, allowing for versatile applications.
The terminal operates efficiently within a temperature range of -30°C to 105°C, suitable for various environments.
The contact material is phosphor bronze, and it features gold plating for enhanced corrosion resistance and conductivity.
The terminal has a compact length of 21 mm, which is beneficial for tight installation spaces.
It uses a crimp termination type, ensuring a secure and robust wire connection critical for maintaining signal integrity.
Yes, it is RoHS compliant, indicating it meets specific environmental standards regarding hazardous substances.
It is ideal for applications in industrial automation, electronics assembly, and repair scenarios where standard blind-mate drawer connectors are used.
This terminal is a female crimp terminal, designed for use with male connectors.
It is designed for use with standard blind-mate drawer connector housing, ensuring compatibility in electronic assemblies.
The country of origin for this terminal is India.
It can accommodate a maximum wire size of 2 mm², providing flexibility in wire selection.
