| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 44516 Mini-Fit BMI Slide and Lock Panel Mount, 5557 Mini-Fit Jr. Receptacle Housing, Mini-Fit BMI Panel Mount Receptacle Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

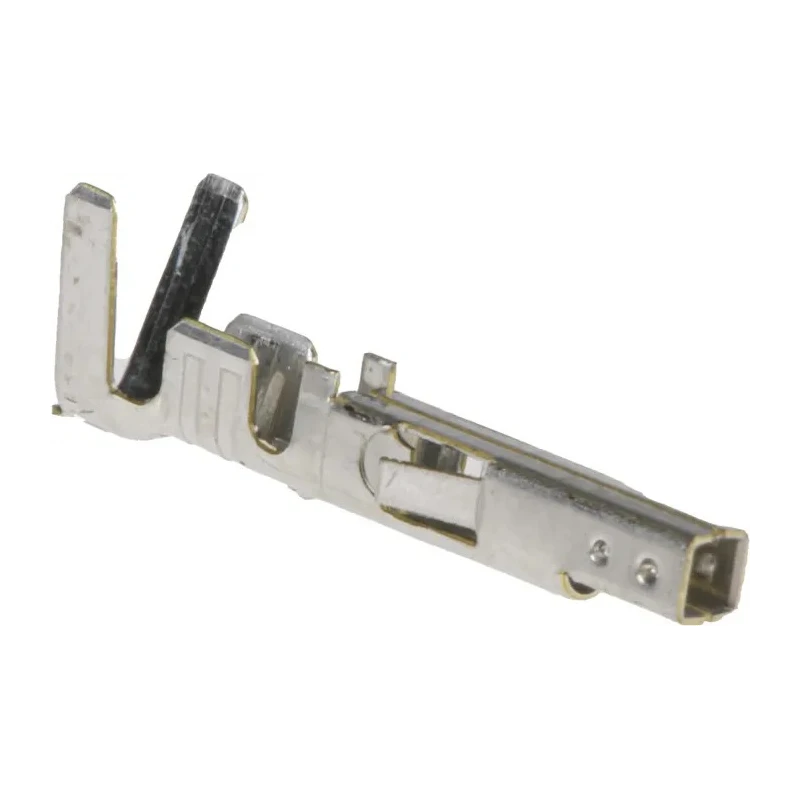

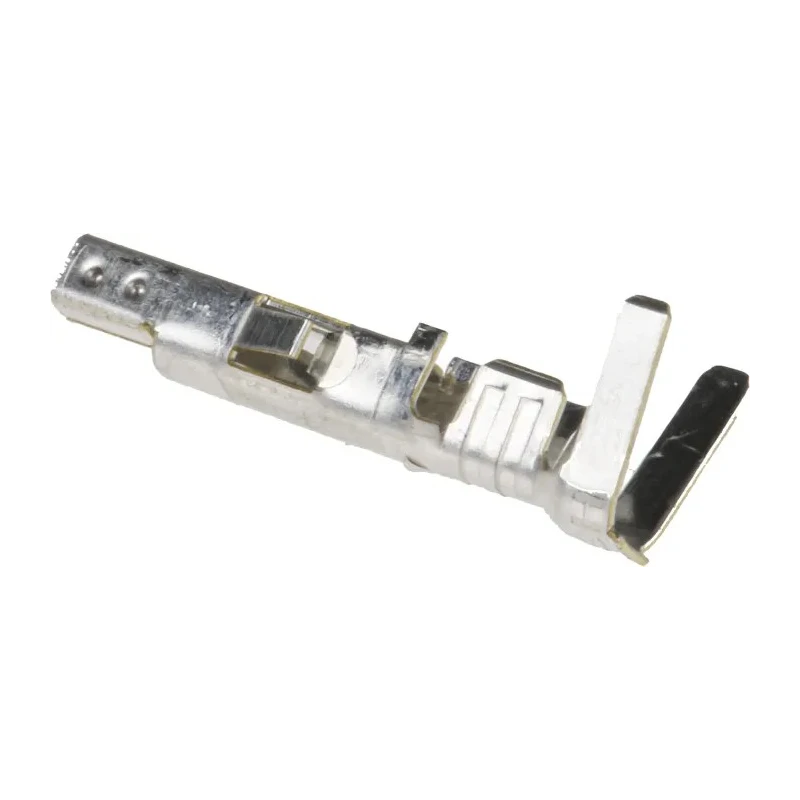

Molex 39-00-0038 Female Crimp Terminal, part of the 5556 Series, provides secure and reliable connections for wire sizes 24 AWG minimum to 18 AWG maximum. This tin-plated brass crimp terminal supports currents up to 9A and features a positive locking housing to avoid accidental disconnection in demanding industrial and commercial applications.
The terminal is compatible with various Mini-Fit housings such as 44516 Mini-Fit BMI Slide and Lock Panel Mount and 5557 Mini-Fit Jr. Receptacle Housing, allowing for flexibility in connector assemblies. Its self-aligning interface and polarized mating geometry facilitate easy mating even in hard-to-reach or restricted spaces while ensuring correct connector alignment and preventing mismatches.
Designed for industrial uses including electronic control modules, telecommunications, communications and networking equipment, gaming devices, and various automation systems, this terminal operates reliably over a temperature range from -40°C to 105°C. The low halogen construction improves safety by limiting toxic gas generation in fire scenarios.
The terminal accepts a wide wire size range from 24 AWG to 18 AWG and supports up to 30 mating cycles for enhanced durability and longevity in applications subjected to frequent connect/disconnect cycles.
Compatible with multiple Mini-Fit housings for versatile connector solutions. Maximum current rating of 9A suitable for demanding power applications. Tin plating ensures corrosion resistance and electrical performance. Operates over wide temperature range from -40°C to 105°C.
Positive locking housing prevents accidental disconnection. Low halogen material enhances fire safety. Polarized geometry prevents mismatches during assembly. Supports up to 30 mating cycles for durability. Brass contact material with reliable electrical conductivity.
This Molex 5556 Series Female Crimp Terminal is ideal for use in industrial automation, telecommunications, networking, electronic control modules, and gaming equipment applications. It offers design flexibility, reliable electrical connection, and mechanical security in harsh and demanding environments.
