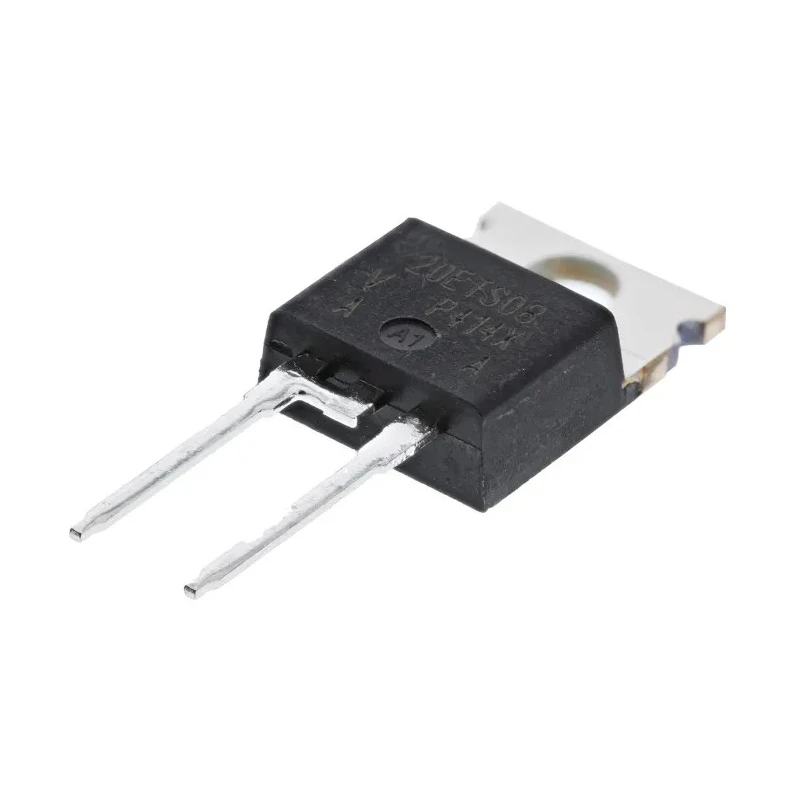

Vishay 800 V 20 A Standard Recovery Power Diode Through Hole TO-220 VS-20ETS08-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 29.37mm |
| Length | 10.51mm |
| Model | VS-20ETS08-M3 |
| Width | 4.65mm |
| Mount Type | Through Hole |
| Series | VS-20ETF-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Input |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Maximum Forward Voltage Vf | 1.1V |
Key Features
- Designed with single diode configuration optimized for standard recovery applications.
- Features low maximum forward voltage of 1.1 V ensuring efficient conduction.
- Withstands peak non-repetitive forward surge current up to 300 A for robust transient performance.
- Operates reliably over a wide temperature range from -40°C to 150°C.
- Ideal for power rectification in industrial, electronic, automotive, and power supply equipment.
- Package designed for through-hole mounting provides mechanical stability.
- No automotive certification but compliant with industry standards for power diodes.
Product Description
Vishay VS-20ETS08-M3 is a high-performance standard recovery power diode engineered for demanding electrical and electronic applications requiring 800 V peak reverse voltage and 20 A continuous forward current. Packaged in a TO-220 through-hole case, it integrates a single diode configuration optimized for efficient power rectification and surge handling.
This diode exhibits a low maximum forward voltage drop of 1.1 V, minimizing power losses and enhancing energy efficiency in circuits. It supports a considerable peak non-repetitive forward surge current of up to 300 A, enabling it to tolerate transient overloads without degradation.
It operates reliably within an extensive temperature range from -40°C minimum to 150°C maximum junction temperature, ensuring durability across diverse industrial, laboratory, and automotive environments. Its compact physical dimensions (10.51 mm length, 4.65 mm width, 29.37 mm height) and through-hole mounting type allow straightforward installation on printed circuit boards.
Applications of the VS-20ETS08-M3 diode include power supply rectification, industrial electronic equipment, automotive electronics, and discrete semiconductor circuits requiring robust and efficient diode solutions.
Single diode configuration ensures targeted rectifier performance. TO-220 package supports effective heat dissipation and mechanical stability. Compatible with standard recovery diode series VS-20ETF-M3 from Vishay. Operating temperature range from -40°C up to 150°C ensures stable performance in harsh conditions.
Peak forward surge current capacity of 300 A for transient event resilience. Low peak reverse current of 1 mA minimizing leakage losses. Height 29.37 mm, length 10.51 mm, and width 4.65 mm for space-efficient mounting.
Vishay's commitment to quality and performance provides designers and engineers with a reliable diode solution tailored to modern power and industrial electronics. This diode supports a variety of use cases including power rectifiers, power supplies, converters, and switch mode power applications in commercial and industrial settings.
Browse EnvMart's Semiconductor and Power Components categories for more Vishay diodes and related electronic components tailored to your industry needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse voltage rating of this diode is 800 V.
The maximum continuous forward current is 20 A.
This model is packaged in a TO-220 type, designed for through-hole mounting.
The maximum forward voltage drop is 1.1 V, which helps to minimize power losses.
It can withstand a peak non-repetitive forward surge current of up to 300 A.
The diode operates reliably over a temperature range from -40°C to 150°C.
The dimensions are 10.51 mm in length, 4.65 mm in width, and 29.37 mm in height.
Yes, it is compatible with the standard recovery diode series VS-20ETF-M3 from Vishay.
The peak reverse current is 1 mA, which helps to minimize leakage losses.
It utilizes a single diode configuration optimized for standard recovery applications.
This diode is suitable for power rectification in industrial, electronic, automotive, and power supply equipment.
The diode is manufactured in India.
