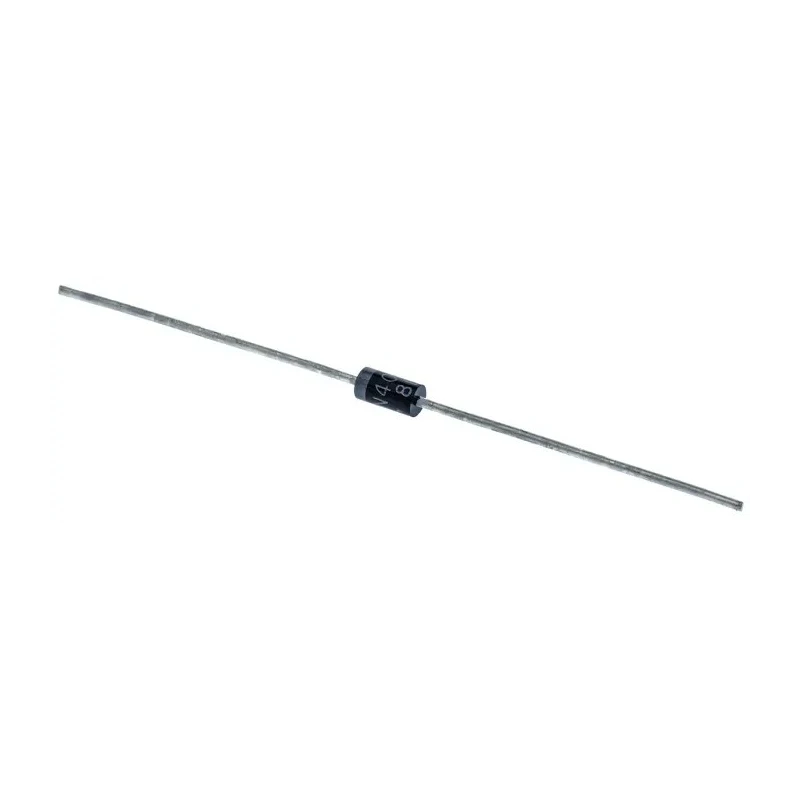

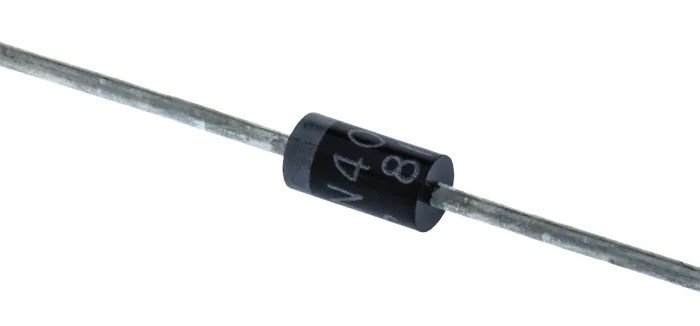

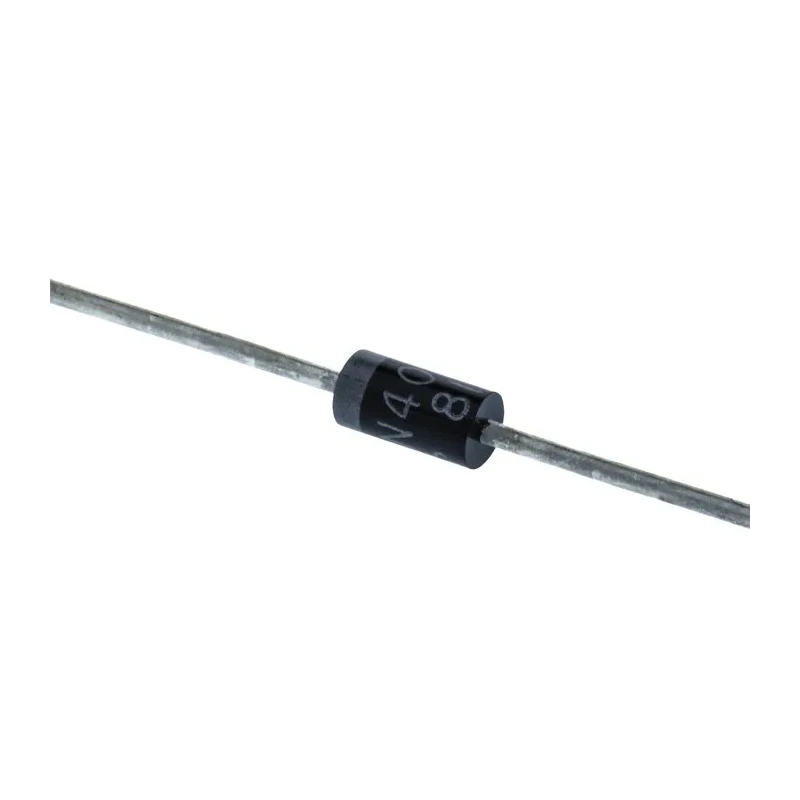

Vishay 800 V 1 A General Purpose 2-Pin DO-204AL Diode 1N4006-E3/54

Vishay 1N4006-E3/54 diode is a general-purpose semiconductor device known for its reliability and efficiency in electronic circuits. It features an 800 V peak reverse repetitive voltage rating and a maximum continuous forward current of 1 A, making it suitable for a wide range of power rectification applications.

Housed in a DO-204AL (DO-41) plastic package, this diode offers excellent surge current capability of up to 45 A, supporting transient and peak loading conditions without damage. The diode's low forward voltage drop of 1.1 V helps minimize power loss and increases efficiency in converters, inverters, and power supply designs.

Its ability to operate in harsh environments is ensured by a wide operating junction temperature range from -50°C to 150°C, providing durability in industrial, commercial, and laboratory setups.

Physical dimensions of approximately 5.2 mm length and 2.7 mm diameter allow for easy integration into through-hole mounting configurations, enhancing assembly and maintenance efficiency.

This Vishay diode is ideal for general-purpose rectification tasks in electronics manufacturing, power supplies, and motor control systems where reliable, cost-effective diode performance is required.

Maximum continuous forward current of 1 A. Peak reverse repetitive voltage of 800 V. Low forward voltage drop of 1.1 V. Peak non-repetitive forward surge current up to 45 A. Operating temperature range from -50°C to 150°C.

DO-204AL plastic package with tin-plated leads. Compact dimensions for versatile mounting applications. Designed for power supply rectification and general purpose use. Explore more semiconductor components and rectifier diodes in the Electronics & Electricals category at EnvMart for trusted industry-grade parts.
