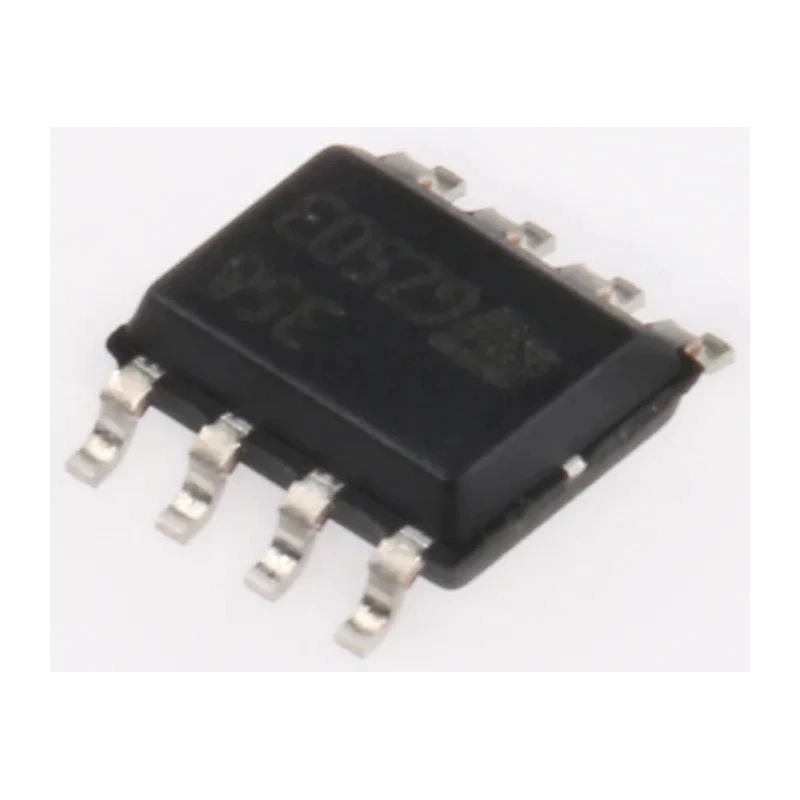

STMicroelectronics Operational Amplifier 1.1 MHz 8-Pin SOIC 3V LM358D
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | LM358D |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM |
| Output Current | 60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | ECOPACK |
| Pin Count | 8 |
| Automotive Standard | AEC-Q3, AEC-Q1, AEC-Q2, AEC-Q100 |
| Maximum Supply Voltage | 3V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 20 to 150 nA |
| Vos - Input Offset Voltage | 1 to 7 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 2 to 30 nA |
| Wide bandwidth (unity gain) | 1.1 MHz |
Key Features
- Features a low power dual operational amplifier with low input bias current.
- Operates from a single power supply between 3V and 5V.
- Offers a high gain bandwidth product of 1.1 MHz and a slew rate of 0.6 V/μs.
- Supports output current up to 60 mA with low input offset voltage of 1 to 7 mV.
- Includes automotive standard compliance with AEC-Q3, AEC-Q1, AEC-Q2, and AEC-Q100 certifications.
- Compact dimensions with a length of 4.9 mm, width of 3.9 mm, and height of 1.25 mm.
- Wide operating temperature range from 0°C to 70°C.
- Designed for industrial and automotive electronics applications requiring reliable amplification.
Product Description
STMicroelectronics LM358D is a low power dual operational amplifier providing 1.1 MHz unity gain bandwidth, housed in a compact 8-Pin SOIC surface-mount package. It features internally frequency-compensated circuits ensuring high gain and stable operation with a single power supply between 3V and 5V.
This amplifier delivers a large DC voltage gain of approximately 100 dB and supports a slew rate of 0.6 V/μs, suitable for a wide range of analog signal processing tasks. The input common-mode voltage range includes ground, allowing output voltage swing to ground. The device supports output currents up to 60 mA, which is adequate for driving moderate loads.
Its input bias current is minimal, ranging from 20 to 150 nA, with input offset voltage between 1 and 7 mV, enhancing precision in signal conditioning applications. It complies with automotive standards including AEC-Q3, AEC-Q1, AEC-Q2, and AEC-Q100, making it robust for use in automotive and industrial electronics environments.
The small footprint dimensions 4.9 mm length, 3.9 mm width, and 1.25 mm height facilitate use in compact circuit designs. Operating temperature range of 0°C to 70°C ensures dependable operation under varied environmental conditions.
This operational amplifier is ideal for signal amplification in instrumentation, embedded systems, control systems, and automotive electronics industries. Its ECOPACK compliance underscores environmental considerations in manufacturing.
Low power dual amplifiers with low input bias current. Single supply operation from 3V to 5V. 1.1 MHz gain bandwidth product for wide frequency range. Slew rate suitable for moderate speed signal processing. Robust automotive-grade certifications for demanding applications.
Compact SOIC 8-pin package for surface mounting reliability. Wide temperature range for industrial use. Output current suitable for various load driving applications. Explore more Operational Amplifiers and electronic components at EnvMart for industrial, automotive, and laboratory electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM358D features a gain bandwidth product of 1.1 MHz, allowing it to handle a wide range of frequencies in analog signal processing applications.
It can support output currents up to 60 mA, making it suitable for driving moderate loads in various applications.
This operational amplifier has compact dimensions of 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height, facilitating its use in compact circuit designs.
The LM358D operates effectively within a temperature range of 0°C to 70°C, ensuring reliable performance under various environmental conditions.
It operates from a single power supply between 3V and 5V, which is essential for its functionality in different electronic applications.
This model complies with automotive standards including AEC-Q3, AEC-Q1, AEC-Q2, and AEC-Q100, making it suitable for automotive and industrial applications.
The LM358D has a slew rate of 0.6 V/μs, which is suitable for moderate speed signal processing tasks.
The input offset voltage for the LM358D ranges from 1 to 7 mV, enhancing its precision in signal conditioning applications.
This operational amplifier is housed in an 8-Pin SOIC surface-mount package, which supports reliable mounting in electronic circuits.
The input bias current for the LM358D ranges from 20 to 150 nA, contributing to its low power consumption and precision.
This operational amplifier is a dual-channel device, providing two amplifiers in a single package for various applications.
The LM358D features ECOPACK compliance, which indicates its adherence to environmental considerations in manufacturing processes.
