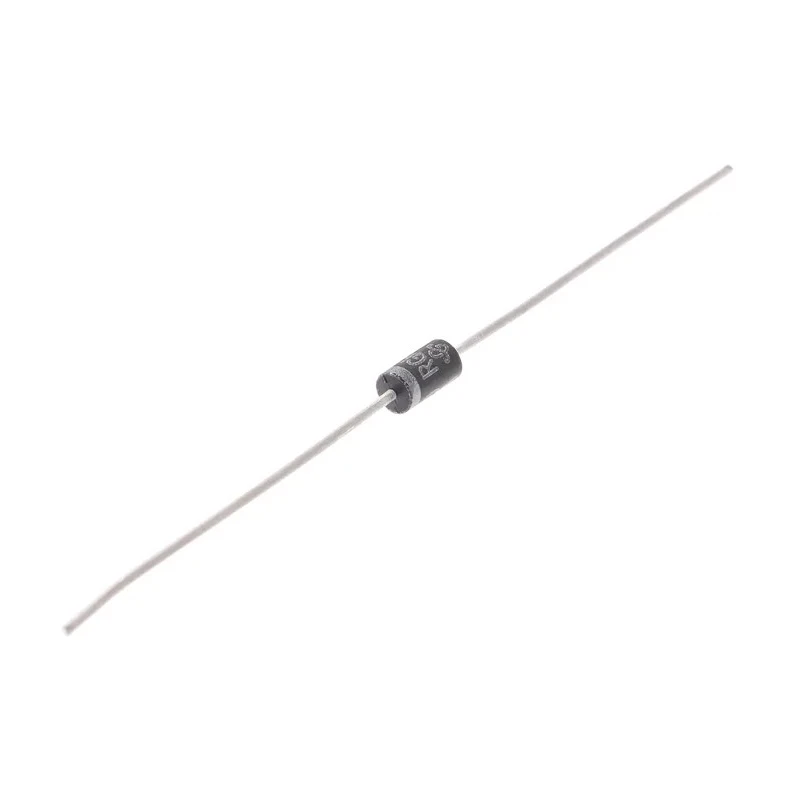

Vishay 2 kV 500 mA General Purpose Diode 2-Pin DO-204AL RGP02-20E-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay 2 kV 500 mA General Purpose Diode 2-Pin DO-204AL RGP02-20E-E3/54

Name: Vishay 2 kV 500 mA General Purpose Diode 2-Pin DO-204AL RGP02-20E-E3/54
Brand: Vishay
SKU: 214289
Price: 0.45 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	Vishay
Height	56mm
Length	5.2mm
Model	RGP02-20E-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	RGP02-20E
Maximum Operating Temperature	175°C
Case	DO-204AL, molded epoxy over glass body
Package Type	DO-204AL
Minimum Operating Temperature	-65°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Standards/Approvals	RoHS
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	2kV
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	20A
Maximum Forward Voltage Vf	1.8V
Peak Reverse Recovery Time trr	300ns

Key Features

Mount type through hole for easy PCB integration.
Withstands maximum continuous forward current of 500 mA.
Peak reverse repetitive voltage rating of 2 kV ensures reliable high voltage performance.
Fast switching with recovery time of 300 ns for efficient rectification.
Temperature range from -65°C minimum to 175°C maximum operating condition.
Glass passivated junction for enhanced reliability and low leakage current.
High forward surge capability peak current of 20 A for transient load handling.
Matte tin plated leads solderable per industry standards.

Product Description

Vishay RGP02-20E-E3/54 is a high reliability general purpose diode housed in a 2-pin DO-204AL through-hole epoxy molded package. Rated for 2 kV peak reverse repetitive voltage and 500 mA continuous forward current, this diode is well suited for applications requiring robust high voltage rectification.

The diode features a glass passivated junction cavity-free design that ensures low leakage current typically less than 0.2 μA. Fast switching characteristics with a peak reverse recovery time of 300 ns optimize efficiency in power conversion circuits.

Operating temperature range from -65°C to 175°C allows usage in harsh industrial and automotive environments. The device offers a high forward surge current of 20 A capability, enhancing reliability under transient conditions.

Its matte tin plated leads meet J-STD-002 solderability standards, facilitating ease of assembly. Polarity is clearly identified by a color band marking the cathode end.

This diode complies with RoHS directives and meets the stringent AEC-Q101 automotive qualification standard, making it suitable for automotive and industrial applications such as high voltage rectification, G2 grid CRT devices, TV circuits, and camera flash snubber circuits.

Mount type through hole for reliable printed circuit board assembly. Maximum forward current rating of 500 mA suits medium power requirements. Peak reverse repetitive voltage of 2 kV provides robust high voltage tolerance.

Low leakage current improves energy efficiency and reduces power dissipation. Fast switching capability reduces switching losses in rectification. Broad operating temperature for application versatility in extreme environments.

This diode is a dependable component choice in electronic circuits demanding high voltage, moderate current handling, and fast switching performance. Explore more Vishay rectifiers and semiconductor diodes in EnvMart's comprehensive catalog.
