Telegartner TOC Series 1 Port RJ45 Shielded Coupler Cat6 J60020A0002

Free Delivery in India | Lowest Global Shipping Charges

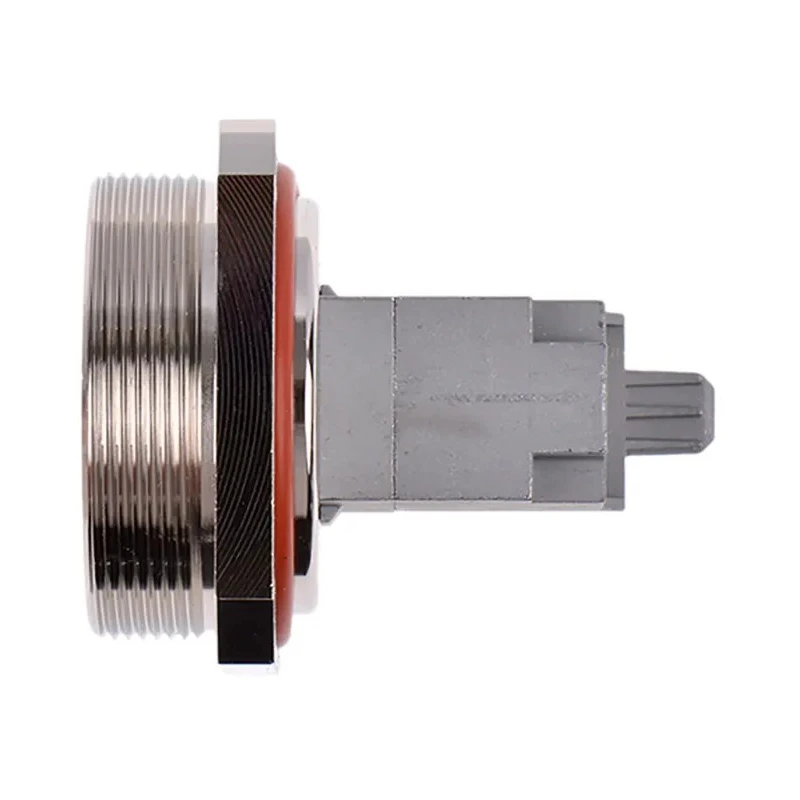

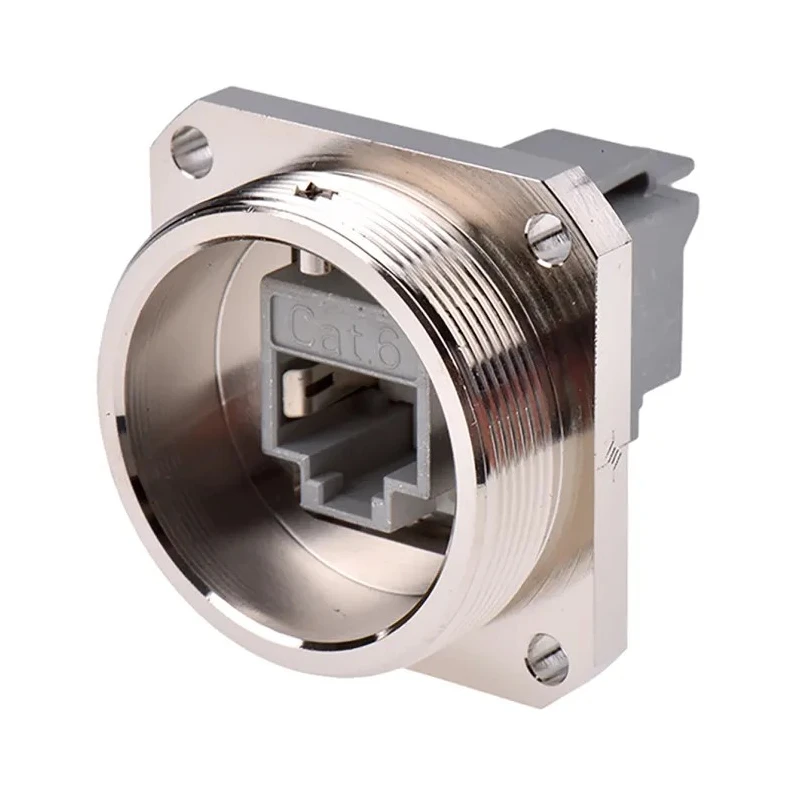

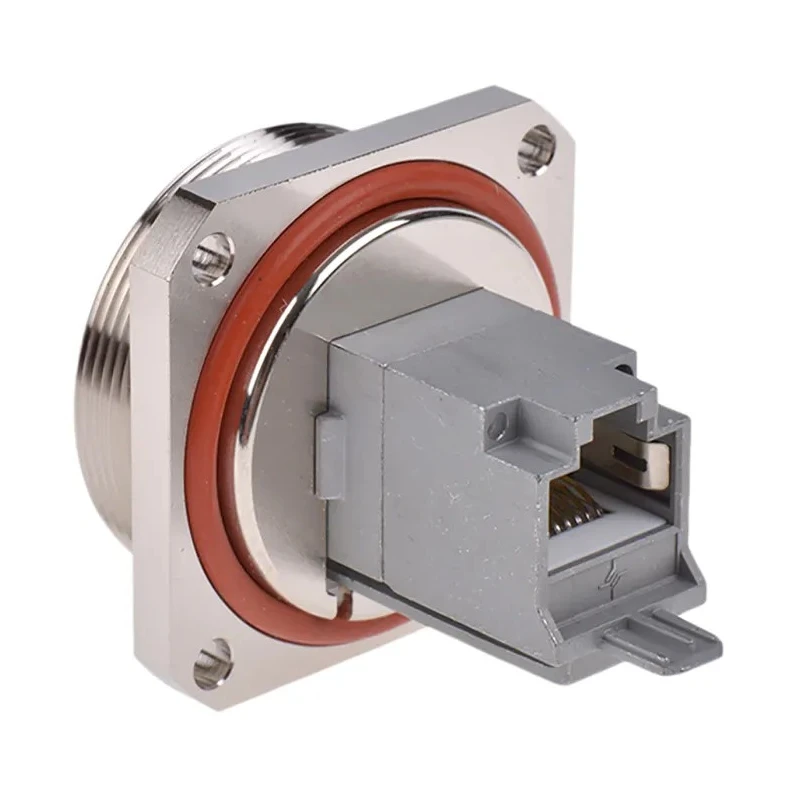

Telegartner TOC Series 1 Port RJ45 Shielded Coupler Cat6 J60020A0002

Name: Telegartner TOC Series 1 Port RJ45 Shielded Coupler Cat6 J60020A0002
Brand: Telegartner
SKU: 135372
Price: 129.45 USD
Availability: InStock



Category Ethernet Couplers Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Brand	Telegartner
Length	38mm
Model	J60020A0002
Depth	44.8mm
Width	38mm
Series	TOC
Number Of Ports	1
Sub Type	Coupler
Shield Type	Shielded
Interface Type	RJ45
LAN Category	Cat6
Category 6A	ANSI/TIA/EIA-568-C.2
Category 6	ISO/IEC 11801, DIN EN 50173-1

Key Features

Supports Cat6 LAN category with shielded RJ45 interface for enhanced signal integrity.
Single port coupler designed for easy connection and extension of Ethernet cables.
Compact dimensions of 38mm length, 38mm width, and 44.8mm depth enable space-efficient installation.
Complies with Category 6 standards ISO/IEC 11801 and DIN EN 50173-1 for optimal performance.
Constructed with a nickel-plated brass bulkhead housing ensuring durability and excellent shielding.
Meets IEC 60603-7-51 connector standards and supports IEEE 802.3an 10 Gb Ethernet transmission.
IP68 rated for outdoor use, suitable for harsh industrial and plant engineering environments.
Operating temperature range from -40°C to +85°C for reliable performance in extreme conditions.

Product Description

Telegartner J60020A0002 is a high-quality TOC Series 1 Port RJ45 Shielded Coupler designed specifically for Cat6 network applications. This coupler offers excellent signal shielding and is ideal for connecting Ethernet cables in demanding industrial, plant engineering, and outdoor environments. Its compact and robust design provides reliable 10 Gb Ethernet transmission and PoE+ compliance ensuring superior network performance.

The coupler features a nickel-plated brass bulkhead housing and a white PA UL94 V2 insulation body with silver shielding, delivering durability and effective protection against electromagnetic interference. Its IP68 rating allows installation in harsh conditions with temperature resilience from -40°C to +85°C.

Installation is convenient with a single turning movement to lock and seal, supported by a flange with four mounting holes requiring a 30.5 mm panel cutout. The device supports cable insulation diameters from 0.9 mm to 1.6 mm. This makes it highly suitable for industrial, manufacturing, telecom infrastructure, laboratory, and HVAC networking applications.

It conforms to IEC 60603-7-51 connector standards with Category 6 compliance according to ISO/IEC 11801 and DIN EN 50173-1, as well as Category 6A ANSI/TIA/EIA-568-C.2 standards for future-proof connectivity. The coupler ensures secure data transmission in Ethernet and telecom systems where shielding and stability are critical.

Additional accessories include a separately available IP68 bulkhead protective cap, enhancing environmental protection. This product is manufactured in Germany and represents a premium choice for professionals seeking reliable network coupling solutions.

Supports Cat6 LAN category with shielded RJ45 interface. Single port for convenient Ethernet cable connection. Nickel-plated brass bulkhead housing enhances durability. IP68 rated for outdoor and harsh environment applications.

Complies with IEC 60603-7-51 and IEEE 802.3an standards. Operational temperature range from -40°C to +85°C. Easy installation with panel mounting flange and locking mechanism. PoE+ support compliant with IEEE 802.3at. Browse other high-performance Ethernet Couplers and networking connectors on EnvMart, engineered for superior industrial and commercial network infrastructure.
