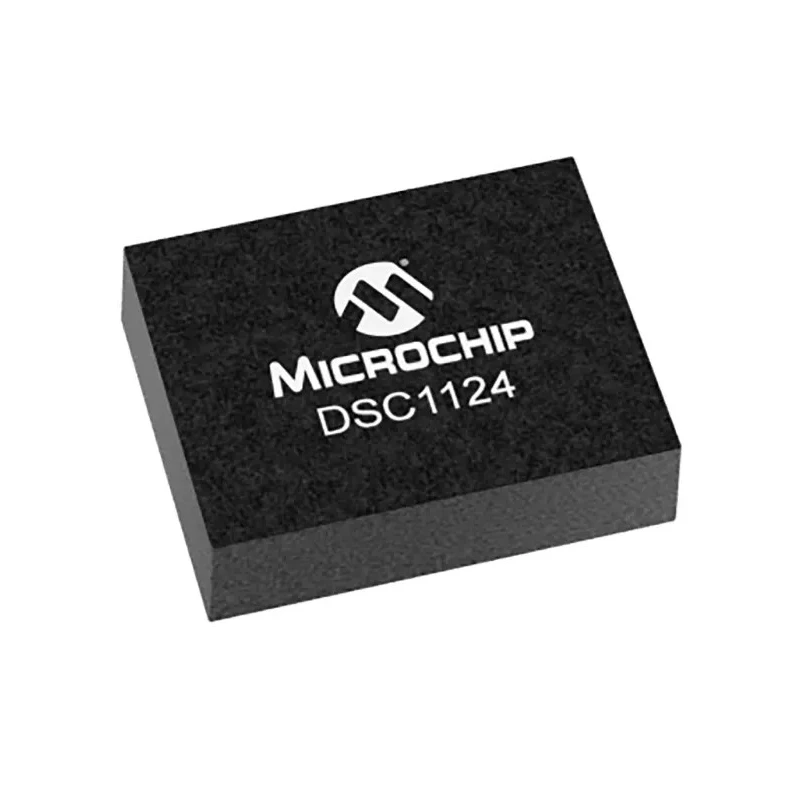

Microchip 100 MHz Surface Mount MEMS Oscillator, 6-Pin CDFN Package, ±50 ppm Stability DSC1124BI1-100.0000T

Microchip DSC1124BI1-100.0000T is a high-performance MEMS oscillator designed to deliver a stable 100 MHz output frequency with ±50 ppm frequency stability. Utilizing advanced silicon MEMS technology, this oscillator improves reliability by eliminating the need for traditional quartz or SAW elements. The compact 6-pin CDFN surface mount package measures 5 mm in length, 3.2 mm in width, and 0.85 mm in height, making it suitable for space-constrained electronic designs.

Operating across a broad industrial temperature range from -40°C to 85°C, this oscillator is suitable for demanding industrial, communications, storage, and networking applications requiring precise timing references. The output level is High-Speed Current Steering Logic (HCSL), ensuring compatibility with modern digital circuit inputs.

The supply voltage range spans from a minimum of -0.3 V to a maximum of 4 V, providing flexible voltage compatibility. Packaged in tape and reel format, this device facilitates automated circuit board assembly lines and high-volume manufacturing environments.

Microchip’s DSC1124 series oscillators conform to multiple industry standards, including RoHS, EN, ISO, and JEDEC, reflecting their quality and environmental compliance. The oscillator’s low RMS phase jitter enhances signal integrity and timing precision, critical in communication and high-speed data processing systems.

Employs silicon MEMS technology for enhanced reliability and performance. Operates over a wide temperature range from -40°C to 85°C, suitable for industrial applications. Frequency stability options include ±10, ±25, and ±50 ppm for varying precision needs.

Surface mount design with compact dimensions of 5 mm length, 3.2 mm width, and 0.85 mm height. Outputs a High-Speed Current Steering Logic (HCSL) level signal compatible with modern digital systems. Supply voltage range from -0.3 V to 4 V provides flexible integration options.

RoHS, EN, ISO, and JEDEC compliant. Packaged in tape and reel format for automated PCB assembly. Low RMS phase jitter ensures stable and reliable clock signals.

This 100 MHz MEMS oscillator is ideal for industrial, communication, networking, storage, and other electronic applications requiring precise, reliable frequency sources. Browse more Microchip MEMS Oscillators and other precision timing components on EnvMart.
