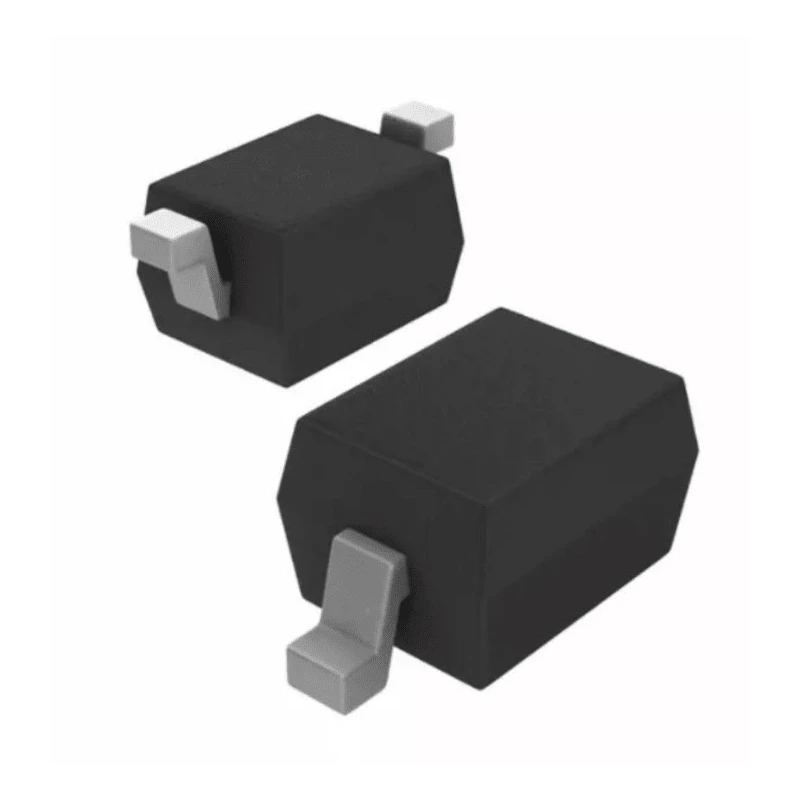

Vishay 40 V 350 mA Surface Mount Schottky Diode 2-Pin SOD-323 SD103AWS-E3-08

Vishay SD103AWS-E3-08 is a high-performance surface mount Schottky diode designed for electronic components and power semiconductor applications. It delivers a maximum continuous forward current of 350 mA at a peak repetitive reverse voltage of 40 volts, making it suitable for low voltage, high frequency switching circuits.

The diode utilizes a low forward voltage drop of 600 mV, which reduces power losses and increases efficiency in power conversion and rectification processes. Its extremely fast peak reverse recovery time of 10 ns ensures minimal switching losses in high-speed switching applications.

This device is packaged in a compact 2-pin SOD-323 surface mount package with precise dimensions of 1.95 mm length, 1.5 mm width, and 1.05 mm height, allowing for efficient circuit board space utilization in dense PCB layouts.

It supports operation in harsh temperature environments with a wide range from minus 55 degrees Celsius to a maximum of 125 degrees Celsius, making it reliable for industrial, commercial, and consumer electronics.

Additional technical specifications include a low peak reverse current of 5 microamperes, which minimizes leakage current during blocking mode, enhancing overall circuit stability. The peak non-repetitive surge current rating of 2 amperes provides resilience against transient power surges.

This diode is a single diode configuration, commonly used in power supplies, voltage clamping and protection circuits, and other discrete semiconductor applications requiring fast switching and low power dissipation.

Maximum continuous forward current of 350 mA. Peak repetitive reverse voltage of 40 V. Forward voltage drop maximized at 600 mV for energy efficiency. Reverse recovery time of 10 ns for fast switching. Operating temperature range from -55°C to 125°C.

Compact SOD-323 surface mount package. Low leakage current with 5 µA peak reverse current. High surge capability at 2 A peak non-repetitive forward current. Single diode, 2-pin configuration. No automotive standard compliance.

This Schottky Diode is applicable in industrial electronics, power supply design, and high-speed switching circuits. It is ideal for manufacturing, laboratory, and electronic component supply sectors where reliable discrete semiconductor diodes are essential.
