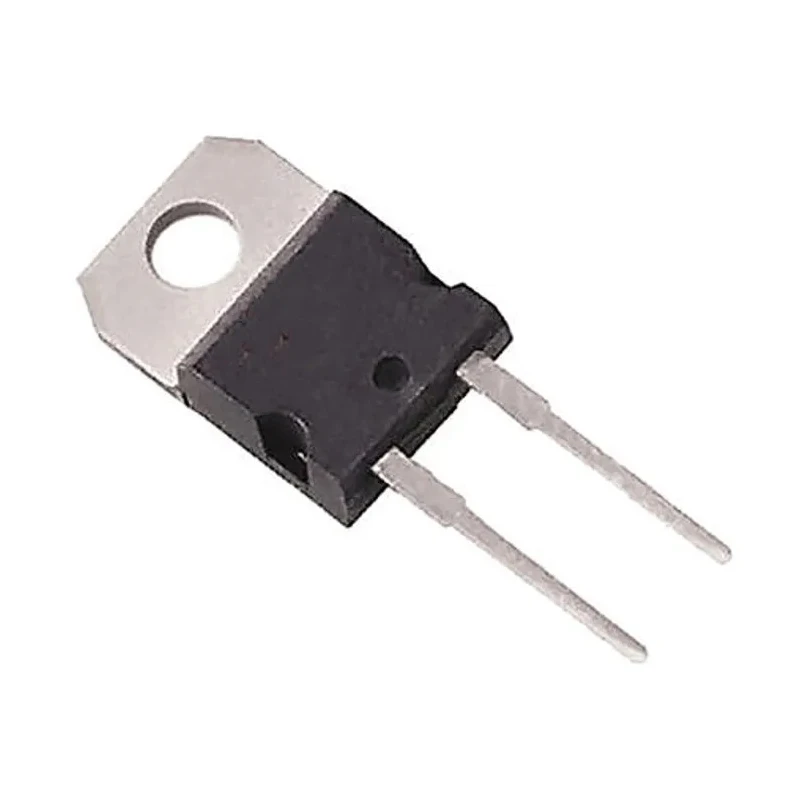

STMicroelectronics 650 V 20 A Silicon Carbide Schottky Diode TO-220AC STPSC20065DI
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | STPSC20065DI |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPSC20065 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Epoxy meets UL 94, V0, ECOPACK2 component |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.65V |
Key Features
- Provides maximum continuous forward current of 20 A for reliable operation.
- Peak reverse repetitive voltage rated at 650 volts for high voltage applications.
- Single diode configuration in a robust TO-220AC through-hole package.
- Low forward voltage drop of 1.65 V to improve efficiency.
- Capable of withstanding peak non-repetitive forward surge current up to 400 A.
- Operates reliably in temperatures ranging from -40°C to 175°C.
- Constructed using silicon carbide technology for superior power and temperature handling.
- Complies with epoxy UL 94 V0 standards and ECOPACK2 component guidelines.
Product Description
STMicroelectronics STPSC20065DI is a high-performance Silicon Carbide (SiC) Schottky diode designed for power electronics applications requiring efficient rectification and high thermal stability. Its through-hole TO-220AC package facilitates easy mounting and integration into industrial and commercial electronic systems. With a maximum continuous forward current of 20 A and a peak reverse voltage of 650 V, this diode is suitable for moderate power circuits including power supplies and converters.
Thanks to its SiC semiconductor technology, the diode exhibits ultra-fast switching characteristics and negligible reverse recovery, enhancing overall system efficiency and reducing losses. It is capable of handling peak non-repetitive surge currents up to 400 A, providing robustness under transient conditions.
The device maintains stable performance across a wide operating temperature range from -40°C to 175°C, making it ideal for demanding environments. Compliance with UL 94 V0 epoxy standards and ECOPACK2 directives ensures reliability and environmental compatibility.
This Schottky diode is optimized for Power Factor Correction (PFC) circuits, where fast switching and high efficiency are critical. Its single diode configuration with two pins simplifies circuit design and minimizes component count.
Maximum continuous forward current: 20 A. Peak reverse voltage: 650 V. Forward voltage drop: 1.65 V. Peak non-repetitive forward surge current: 400 A. Operating temperature range: -40°C to 175°C. Package type: TO-220AC through-hole.
Epoxy UL 94 V0 and ECOPACK2 approved. Ideal for industrial, commercial, and power supply applications. Designed for fast switching and low losses in PFC circuits.
Available with multiple technical resources including datasheets and compliance certificates. This product is suited for engineers and designers working in power electronics, automotive, HVAC, and industrial manufacturing sectors. Explore more products in the Schottky Diodes & Rectifiers category to find complementary components for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 20 A.
It is rated for a peak reverse repetitive voltage of 650 V.
The forward voltage drop is 1.65 V, which helps improve efficiency.
This diode can withstand peak non-repetitive forward surge currents up to 400 A.
It operates reliably within a temperature range of -40°C to 175°C.
It comes in a TO-220AC through-hole package, which facilitates easy mounting.
The dimensions are 10.4 mm in length, 4.6 mm in width, and 15.9 mm in height.
This model has a pin count of 2.
It complies with epoxy UL 94 V0 standards and ECOPACK2 component guidelines.
It uses a single diode configuration with two pins.
It is optimized for Power Factor Correction (PFC) circuits, where fast switching and high efficiency are critical.
The peak reverse current is rated at 2 mA.
