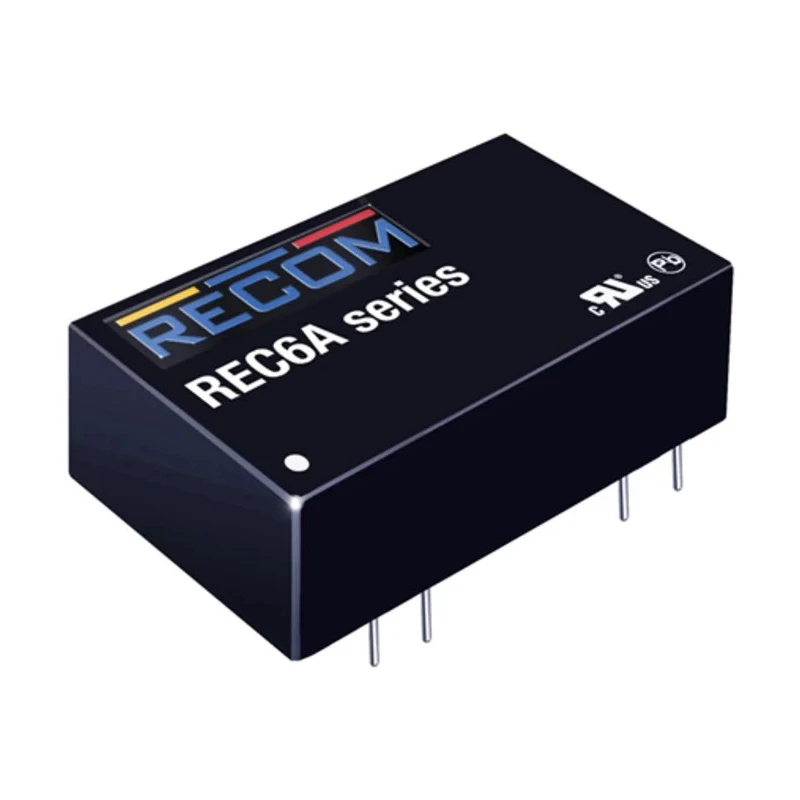

Recom DC/DC Converter 5V DC 1.2A 36V DC Input 18V Input 6W Through Hole DIP-24 Package REC6A

Recom REC6A DC/DC Converter model REC6A-2405SW/H2/X1 is a high quality, isolated 6W converter designed for industrial electronics requiring stable and efficient DC voltage transformation. This converter supports an output of 5V DC at 1.2A current and operates from a wide input voltage range of 18V to 36V DC. It features a through hole mount with a reliable DIP-24 package construction, making it suitable for PCB applications that require sturdy mounting options.

The REC6A series converters include a built-in Class A EMC filter which ensures compliance with electromagnetic interference standards without the need for additional external components. The device provides continuous short circuit protection and requires no minimum load, enhancing its operational safety and versatility for industrial control, measurement, and power supply systems.

This converter offers an isolation voltage of 2kV DC, safeguarding connected circuits from voltage spikes and faults. The unit can operate efficiently up to 80% efficiency, thereby minimizing energy losses. It is designed to operate in harsh industrial environments with temperature endurance ranging from -40 °C to +65 °C without derating performance.

Additional technical features include a mean time between failure (MTBF) of 499000 hours, indicating superior reliability and durability. The converter’s compact dimensions - 31.8 mm length, 20.3 mm width, and 10.2 mm depth - allow easy integration into various electronic assemblies.

Output Voltage: 5V DC at 1.2A output current. Input Voltage Range: 18V (min) to 36V (max) DC. Output Power: 6W, suited for low-power industrial electronics. Isolation Voltage: 2kV DC for enhanced safety. Mount Type: Through hole with DIP-24 package.

Operating temperature range: -40°C to 65°C without derating. High efficiency of up to 80% for reduced heat dissipation. Continuous short circuit protection and no minimum load requirements. Built-in Class A EMC filter for EMI compliance.

MTBF of approximately 499,000 hours ensuring durability.

This Recom DC/DC converter series is ideal for providing isolated, regulated power supply solutions in industrial automation, instrumentation, telecommunications, and control systems. Its robust design and protective features make it well suited for reliable operation in a variety of challenging environments.
