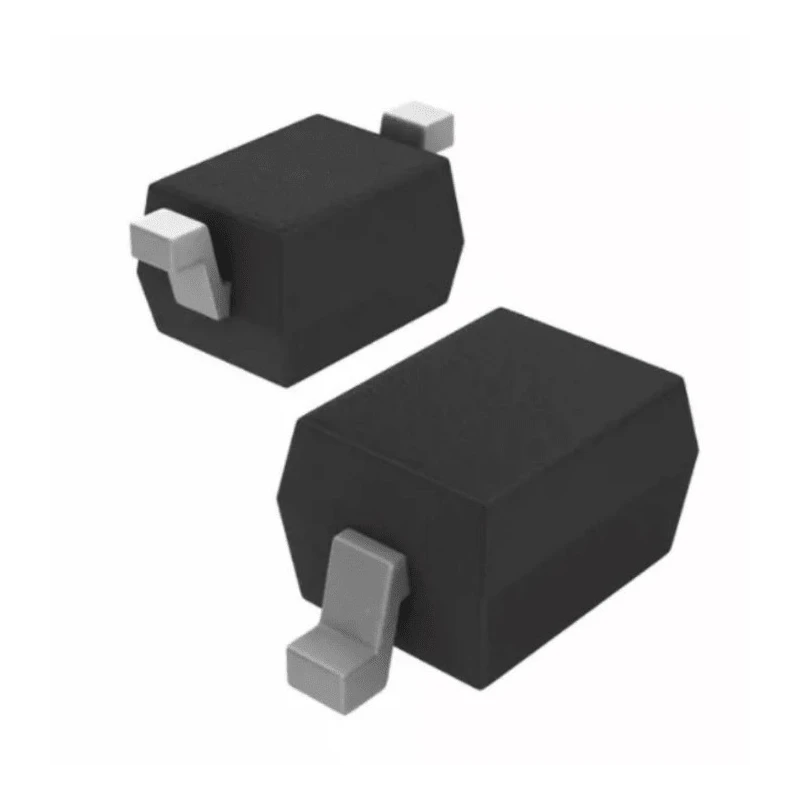

Vishay 40 V 350 mA Schottky Diode 2-Pin Surface Mount SOD-323 SD103AWS-E3-08

Vishay SD103AWS-E3-08 is a high-performance Schottky diode designed for surface mount applications with a compact SOD-323 package. It operates at a maximum continuous forward current of 350 mA and can block peak reverse repetitive voltages up to 40 V. This diode features an exceptionally low forward voltage drop of 600 mV, minimizing power loss and heat generation, ideal for efficient circuit design.

With a peak reverse recovery time of only 10 ns, the SD103AWS-E3-08 provides fast switching performance suited to applications requiring rapid response such as power rectification, voltage clamping, and switching power supplies. The device supports a wide operating temperature range from -55°C to 125°C, ensuring stability in harsh industrial environments.

Its compact physical dimensions - 1.95 mm length, 1.5 mm width, and 1.05 mm height - allow for space-saving PCB layouts in dense electronic assemblies. The diode’s peak non-repetitive forward surge current rating of 2 A provides robustness against transient current spikes.

This diode employs a single device configuration with two pins and surface mount technology for easy automated assembly. It complies with RoHS directives, suitable for environmentally conscious manufacturing.

Typical use cases include industrial electronics circuits, electronic component subsystems, power management modules, and semiconductor applications requiring efficient, low-loss rectification and fast switching characteristics. Vishay’s proven semiconductor technology ensures reliable performance in a variety of commercial and industrial electronics.

This Schottky diode offers a maximum continuous forward current of 350 mA. It features a peak reverse repetitive voltage of 40 V for effective blocking performance. The diode has a low maximum forward voltage of 600 mV, reducing power loss.

Its fast switching speed is characterized by a peak reverse recovery time of only 10 nanoseconds. The device operates reliably over a wide temperature range from -55°C to 125°C. Compact dimensions of 1.95 mm length, 1.5 mm width, and 1.05 mm height make it suitable for space-constrained PCB designs.

Peak non-repetitive forward surge current rating of 2 A ensures resilience during transient currents. The diode has a single diode configuration with 2 pins for surface mount applications. It is RoHS compliant and intended for industrial and electronic component applications requiring fast switching and low power dissipation.
