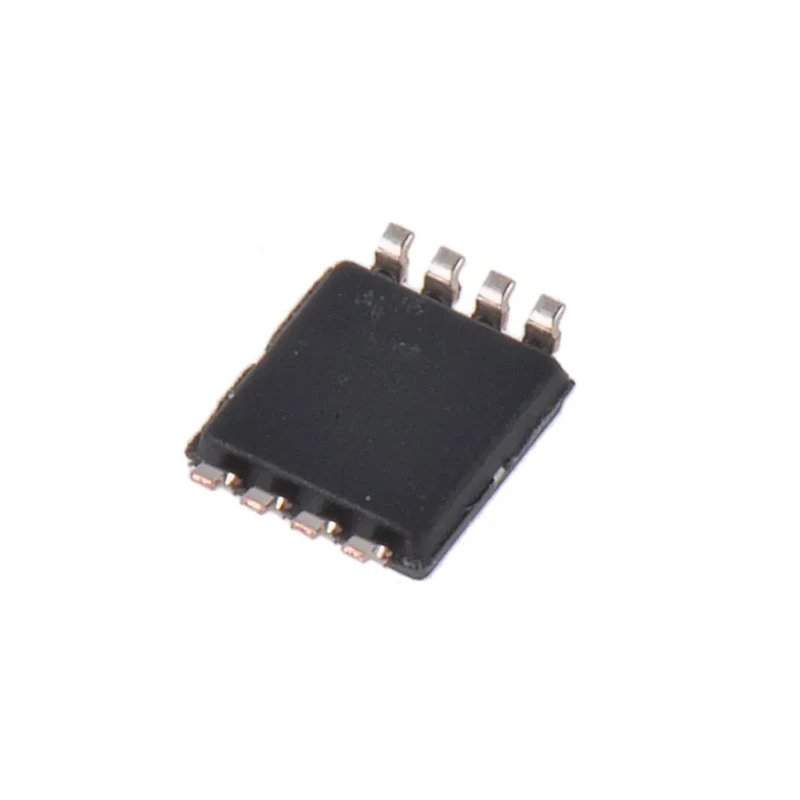

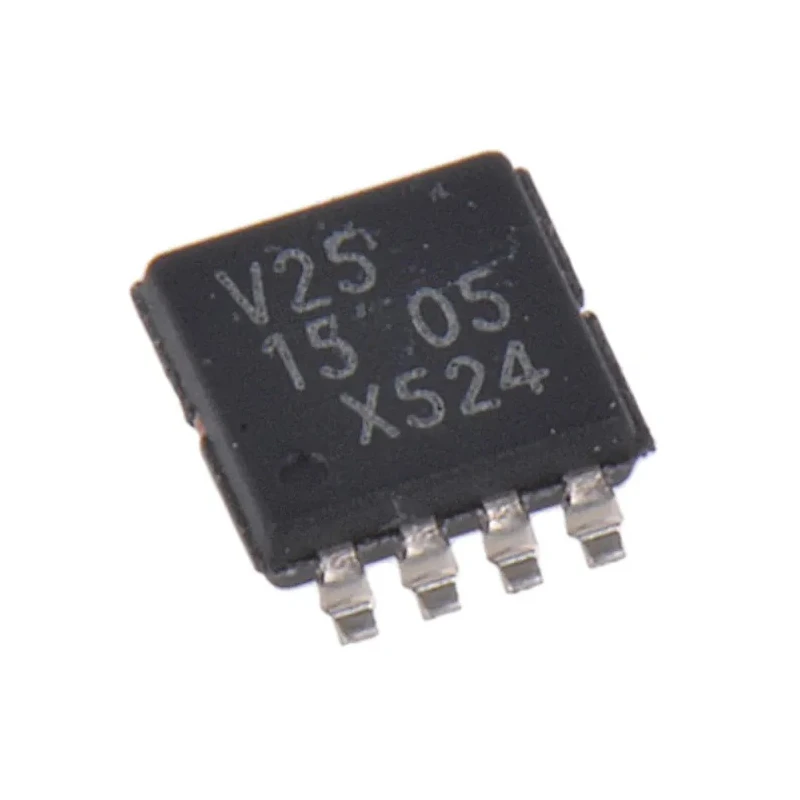

Nexperia 2-Channel Non-Inverting 3-State Buffer Logic IC 8-Pin TSSOP 74LVC2G125DP,125
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 3.1mm |
| Model | 74LVC2G125DP,125 |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | 74LVC2G125 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 2 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Buffer |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 11.4ns |
| Supply Current | 4μA |
| Maximum Low Level Output Current | 32mA |
| Texas Instruments SN74LVC2G125DCTR Buffer & Line Driver, 8-Pin SMBrand | Texas Instruments |
Key Features
- Operates within 1.65V to 5.5V supply voltage range.
- Features two non-inverting buffer channels with three-state outputs.
- Compact 8-pin TSSOP surface mount package suitable for space-constrained applications.
- Maximum propagation delay of 11.4 nanoseconds at typical load.
- Wide operating temperature range from -40°C to 125°C for industrial use.
- Low supply current of 4 microamperes ensures energy efficiency.
- Compatible with input LVTTL/TTL logic levels and LVCMOS output.
- Maximum high-level output current of -32mA and low-level output current of 32mA.
Product Description
Nexperia 74LVC2G125DP,125 is a high-performance 2-channel non-inverting buffer with three-state outputs contained in an 8-pin TSSOP package. This device belongs to the 74LVC logic family and is engineered for low voltage CMOS applications operating within a 1.65 to 5.5V power supply range.
Each channel buffers a single-ended input with non-inverting logic, providing reliable signal integrity and enabling three-state output control, which is essential for bus-oriented applications.
The compact surface mount design delivers efficient board space utilization, with a height of 950µm and length of 3.1mm. It supports industrial temperature requirements from -40°C to 125°C, making it suitable for harsh environments.
With a maximum propagation delay of 11.4ns and a low supply current of 4µA, this buffer IC ensures fast switching speeds and low power consumption. The device's compatibility with LVTTL/TTL input levels and LVCMOS outputs offers flexible integration in digital circuits.
Typical applications include industrial control, communication equipment, computing systems, and general logic signal buffering within electronic modules. Operates within 1.65 to 5.5 V supply voltage ensuring compatibility with a wide range of system voltages.
Low power consumption at only 4 microamperes supply current for energy-efficient designs. Supports up to 32mA output current for driving moderate loads. Robust temperature range suitable for automotive-grade and industrial applications.
Surface mount 8-pin TSSOP package for compact PCB footprint. Three-state output functionality enables bus connection and multiplexing. Non-inverting buffer type ensures signal integrity without phase inversion.
This component is RoHS compliant, ensuring adherence to environmental safety standards. It is ideal for design integration in electronic and semiconductor projects requiring reliable buffering and signal management.
Explore more semiconductor devices and advanced Logic ICs like the Nexperia 74LVC2G125DP,125 at EnvMart for efficient and compact electronic circuit solutions.
