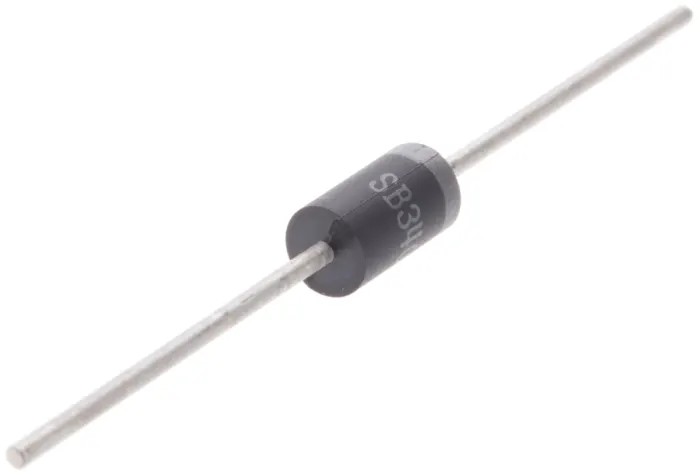

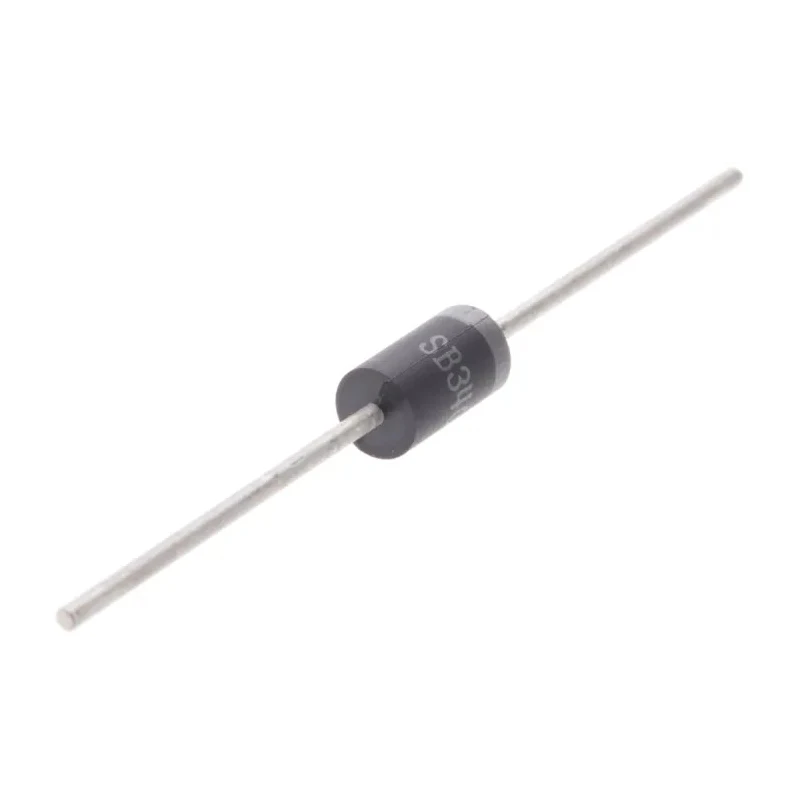

Vishay 40 V 3 A Schottky Diode 2-Pin DO-201AD SB340-E3/54

Vishay SB340-E3/54 is a high-performance Schottky diode featuring a 40 V peak reverse voltage and 3 A maximum continuous forward current. This diode uses a 2-pin DO-201AD through-hole package with a compact form factor, measuring 10 mm in length and 5.3 mm in diameter. It exhibits very low forward voltage drop of 0.68 V which reduces power loss and improves efficiency, making it ideal for power rectification applications.

Designed to tolerate a broad temperature range from -65°C to 125°C, the SB340-E3/54 performs reliably in industrial, electronic, and telecommunications applications requiring fast switching and high current capacity. Its very short reverse recovery time enables efficient energy conversion with minimal switching losses.

The diode’s peak non-repetitive forward surge current capability of 120 A ensures robustness against transient current spikes common in power electronics. The device also maintains low leakage with a peak reverse current of just 500 μA.

This Vishay Schottky diode is suitable for industrial power rectifiers, power supply circuits, automotive electronics, and other high-efficiency switching circuits where minimal power dissipation and quick recovery are critical.

Maximum continuous forward current of 3 amperes ensuring high current handling capacity. Peak reverse repetitive voltage rated at 40 volts for reliable reverse voltage tolerance. Low maximum forward voltage of 0.68 volts enhances efficiency by minimizing power loss.

Compact DO-201AD package with dimensions: length 10mm, diameter 5.3mm, width 5.8mm, height 5.8mm. Extremely fast switching speed due to very short reverse recovery time. Wide operating temperature range from -65°C to 125°C suitable for harsh environments.

Rectifier type is Schottky, providing fast switching and low forward voltage characteristics. Single diode configuration with two pins for through-hole mounting. Peak non-repetitive forward surge current up to 120 amperes for transient robustness.

Peak reverse current of 500 microamperes supports low leakage current operation.

This product is part of the Vishay SB340 series of Schottky rectifiers, known for their efficiency and robustness in discrete semiconductor applications. It is ideal for use in industrial electronics, power supplies, and telecommunications equipment. Explore more Vishay semiconductors and rectify your circuit designs with reliable, high-quality components on EnvMart.
