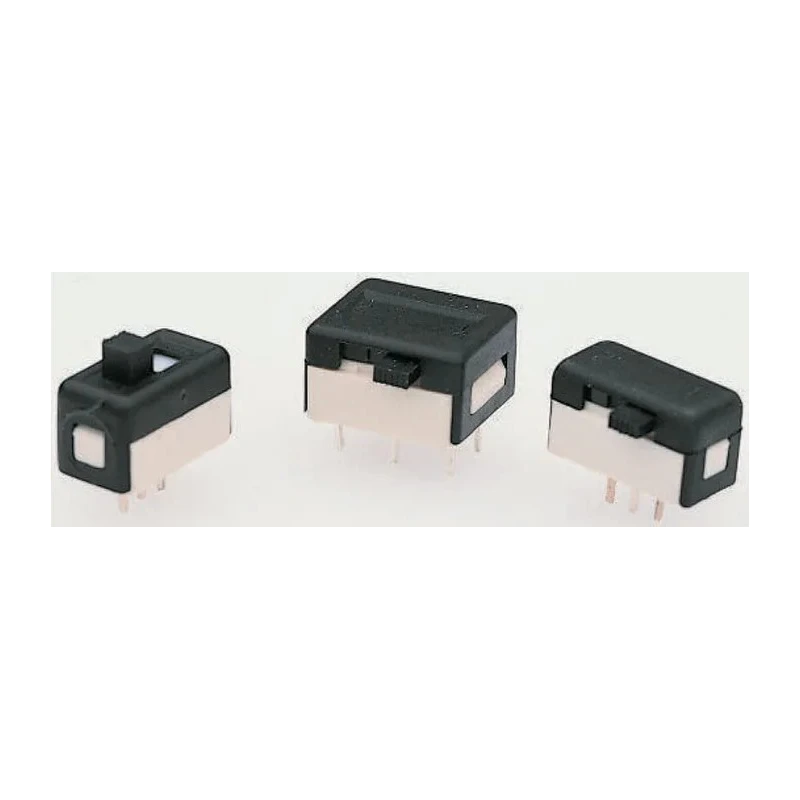

APEM PCB Slide Switch DPDT Latching 1A Fibreglass Reinforced Polyamide 25146NAB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Length | 14.1mm |
| Model | 25146NAB |
| Depth | 8.1mm |
| Width | 7.5mm |
| Mount Type | PCB |
| Series | 25000N |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | UL |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 1A |
| Mechanical Life | 20000Operations |
| Electrical Life | 10000 cycles |
| Actuator Material | Fibreglass Reinforced Polyamide |
Key Features
- Designed for printed circuit board mounting with a through-hole terminal type.
- Latching switch operation with a contact configuration of DPDT.
- Rated for a switch contact current of 1A and contact DC voltage of 30V dc.
- Mechanical life rated at 20,000 operations and electrical life of 10,000 cycles.
- Actuator made of fibreglass reinforced polyamide ensuring high durability.
- Suitable for operating temperatures from -40°C up to a maximum of 85°C.
- Complies with UL standards for safety and performance.
Product Description
The APEM 25146NAB PCB Slide Switch is a high-quality DPDT latching switch designed for use in printed circuit board applications. Featuring a robust fibreglass reinforced polyamide actuator, this slide switch offers excellent mechanical and electrical performance with a switch contact current rating of 1A and a contact DC voltage of 30V dc. It is designed with a through-hole terminal type for secure PCB mounting, ensuring stable and reliable connectivity in electronic assemblies.
This switch has a compact form factor with precise dimensions of 14.1mm length, 7.5mm width, and 8.1mm depth, making it ideal for applications requiring space-efficient switching solutions. Its mechanical life extends to 20,000 operations and electrical life up to 10,000 cycles, providing long-term reliability in industrial, electrical, automation, and control system equipment.
The actuator's fibreglass reinforced polyamide material enhances durability, resistance to wear, and thermal stability. Designed to operate in environments with temperatures ranging from -40°C to 85°C, this switch is suitable for demanding industrial and electronic environments. It meets UL safety and performance standards, assuring quality and safety compliance.
Typical industrial and electronic use cases include automation systems, control circuits, laboratory equipment, telecommunications, and instrumentation. The slide switch supports On-None-On switch configuration with latching operation, offering distinct and reliable switching action with tactile feedback.
Designed for PCB mounting with through-hole terminals. DPDT contact configuration for dual-pole double-throw switching. Latching switch operation for maintaining position until toggled again. Rated for 1A switch contact current and 30V DC voltage.
Compact dimensions: 14.1mm length, 7.5mm width, 8.1mm depth. Fibreglass reinforced polyamide actuator for strength and durability. Mechanical life of 20,000 operations and electrical life of 10,000 cycles. Operating temperature range from -40°C to 85°C.
Certified to UL safety standards.
This product is a reliable choice for OEMs, electronics manufacturers, and system integrators requiring dependable PCB Slide Switches for commercial and industrial applications. Explore more APEM switches and related electrical components on EnvMart for optimized performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is DPDT (Dual-Pole Double-Throw).
It is rated for a switch contact current of 1A and a contact DC voltage of 30V.
The switch has dimensions of 14.1mm in length, 7.5mm in width, and 8.1mm in depth.
The mechanical life is rated at 20,000 operations, while the electrical life is rated at 10,000 cycles.
It operates within a temperature range of -40°C to 85°C.
This switch is designed for PCB mounting with a through-hole terminal type.
The actuator is made from fibreglass reinforced polyamide, ensuring durability.
The switch operation type is latching, allowing it to maintain its position until toggled again.
Yes, it complies with UL standards for safety and performance.
The series designation for this model is 25000N.
This switch is suitable for applications in automation systems, control circuits, laboratory equipment, telecommunications, and instrumentation.
The switch configuration is On-None-On, allowing for distinct switching actions.
