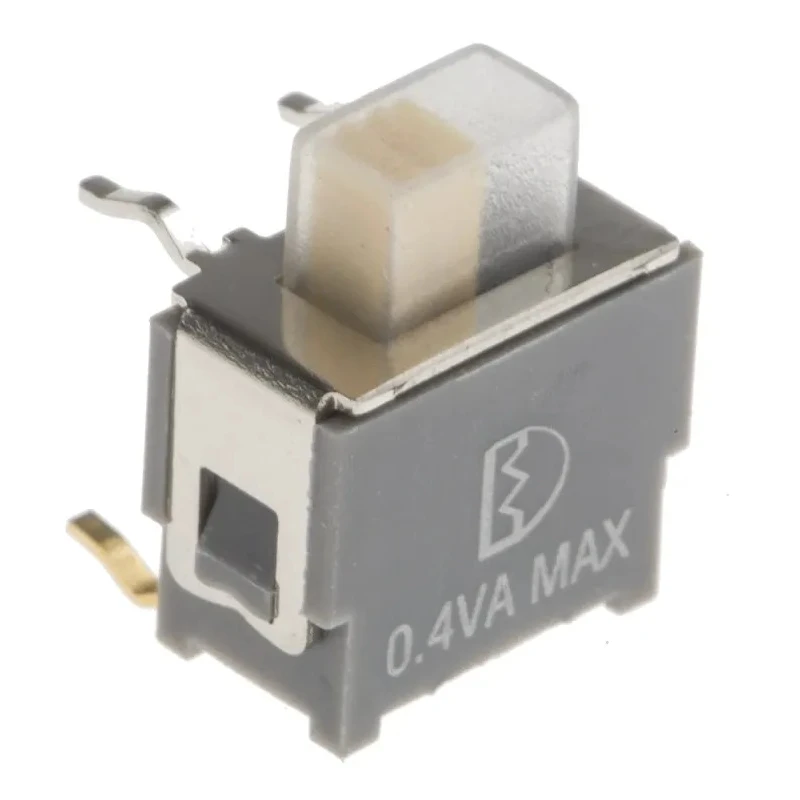

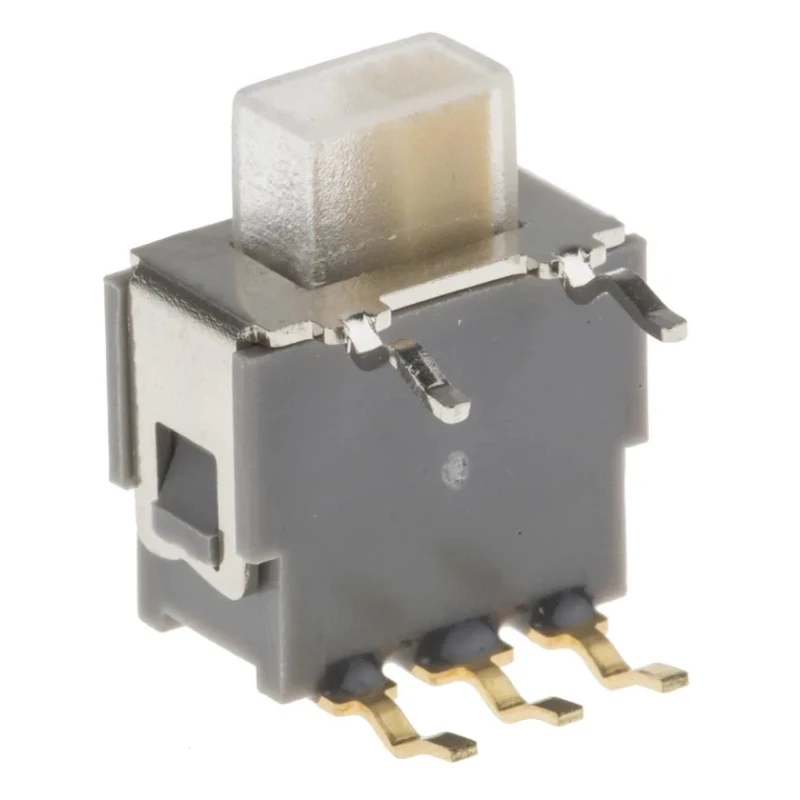

RS PRO IP67 PCB Slide Switch SPDT Latching 400mA Polybutylene Terephthalate IP67
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 9.5mm |
| Model | IP67 |
| Depth | 8mm |
| IP Rating | IP67 |
| Width | 5mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 48V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 48V ac |
| Actuator Material | Polybutylene Terephthalate |
Key Features
- Features a latching SPDT contact configuration suitable for durable switching.
- Operates at a contact current of 400mA with AC/DC voltage rating of 48 volts.
- Constructed with a yellow polybutylene terephthalate actuator and white PBT case for excellent durability.
- Washable epoxy seal and actuator boot ensure protection and IP67 ingress rating.
- Switch operation is On-None-On with solder terminal type for easy PCB installation.
- Designed to withstand 40000 mechanical cycles for long service life.
- Suitable for wave soldering at 260°C for 5 seconds during PCB assembly.
- Wide operating temperature range from -20°C to 80°C enhances application versatility.
Product Description
The RS PRO IP67 PCB Slide Switch model IP67 is a high-quality micro miniature slide switch designed for PCB mounting with a secure latching SPDT contact configuration. It supports a switch contact current of 400mA and contact voltages of 48 volts AC and DC, making it suitable for low-power switching applications in electronic control circuits.
This slide switch features a robust yellow polybutylene terephthalate actuator combined with a white PBT housing and nickel-plated brass components. The epoxy seal and actuator boot provide superior protection against moisture and dust, achieving an ingress protection rating of IP67, suitable for harsh and washable environments.
Mechanical life expectancy is rated at 40000 cycles, ensuring long-term reliable operation, complemented by the capability to withstand wave soldering processes at 260°C for up to 5 seconds, facilitating efficient manufacturing integration.
The compact physical dimensions of 9.5mm length, 5mm width, and 8mm depth enable integration into dense PCB layouts. The On-None-On switching configuration and solder-type terminals simplify installation and wiring on printed circuit boards.
Operating temperature spans from -20°C to 80°C, accommodating varied industrial, laboratory, medical, IT, telecom, and white goods applications. This product is ideal for use in handheld control devices, instrumentation panels, and equipment requiring robust, reliable slide switch control with high ingress protection.
Features a latching SPDT contact mechanism. Rated for 400mA contact current with 48V AC/DC voltage. Constructed with polybutylene terephthalate materials for durability. Epoxy sealed and IP67 rated for washable and dustproof use.
Compact dimensions fit PCB mounting requirements. Supports wave soldering at 260°C for five seconds. Provides a long mechanical lifespan of 40000 cycles. Wide temperature range operation from -20°C to 80°C. Applicable in handheld, medical, IT, telecom, and consumer electronics.
Explore more RS PRO products and similar PCB Slide Switches in our extensive Switches & Sockets category. Ideal solutions for electronics manufacturing and assembly needs are available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a latching SPDT (Single Pole Double Throw) contact configuration suitable for durable switching applications.
The switch supports a contact current of 400mA, making it suitable for low-power switching applications.
It is rated for a contact voltage of 48 volts for both AC and DC applications.
The dimensions are 9.5mm in length, 5mm in width, and 8mm in depth, making it compact for PCB mounting.
This model has an IP67 ingress protection rating, ensuring it is dustproof and waterproof for harsh environments.
It operates within a temperature range of -20°C to 80°C, allowing for versatile applications across various environments.
The mechanical life expectancy of this switch is rated at 40,000 cycles, indicating long-term reliability in operation.
It features solder-type terminals, which facilitate easy installation on printed circuit boards.
Yes, it can withstand wave soldering processes at 260°C for up to 5 seconds during PCB assembly.
It is constructed with a yellow polybutylene terephthalate actuator and a white PBT housing, providing durability and protection.
This model complies with UL and RoHS standards, ensuring it meets specific safety and environmental regulations.
It is applicable in handheld control devices, instrumentation panels, and equipment requiring robust control with high ingress protection.
