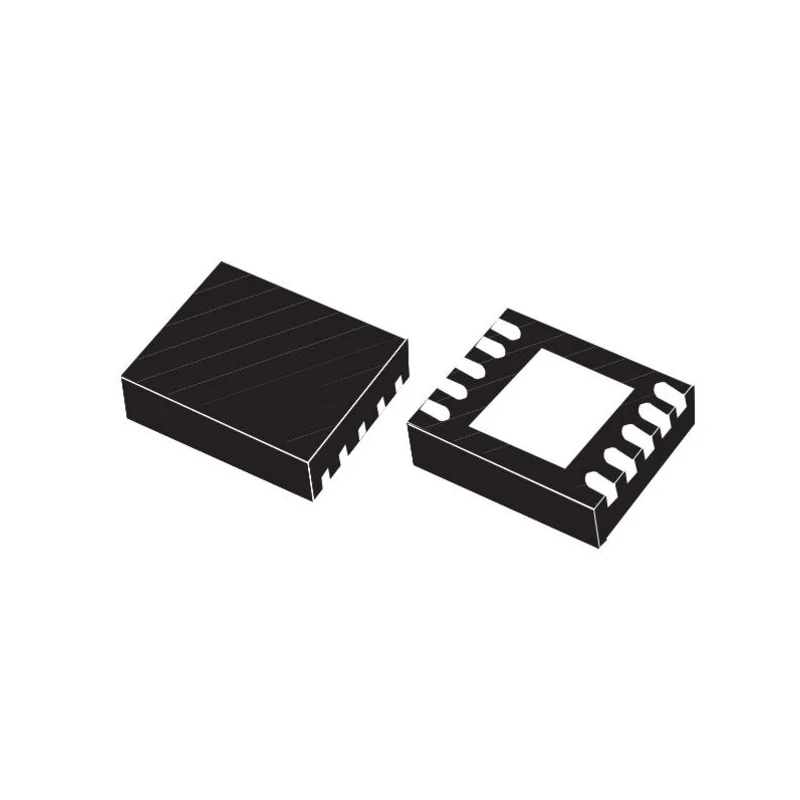

STMicroelectronics High Side USB Power Switch IC 10-Pin DFN10L 4V-18V 5A STELPD01PUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 3.15mm |
| Model | STELPD01PUR |
| Width | 3.15mm |
| Mount Type | Surface |
| Series | STELPD01 |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN10L |
| Minimum Operating Temperature | -40°C |
| Operating Current | 5A |
| Number of outputs | 2 |
| Interface Type | USB |
| Pin Count | 10 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4V |
| Switch On Resistance RdsOn | 50mΩ |
| Wide Input Voltage Range | 4 V to 18 V |
Key Features
- Wide input voltage range from 4 V to 18 V supports various power rails.
- Maximum continuous operating current of 5 A for robust power control.
- Integrated 40 mΩ power FET reduces power loss and increases efficiency.
- Adjustable turn-on slew-rate controls inrush current during startup and hot-swap.
- Integrated protection features include thermal protection and under-voltage lockout.
- Stable output regulation clamps overvoltage at a preset level of 17.5 V.
- Compact 10-pin DFN10L surface-mount package measuring 3.15mm x 3.15mm x 1mm.
- Operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
Product Description
STMicroelectronics STELPD01PUR is a high side USB power switch integrated circuit designed to protect power rails in electronic applications. Featuring a wide operating voltage range from 4 V to 18 V and a maximum continuous current rating of 5 A, this device efficiently manages power delivery with integrated power FET and advanced protection features.
The IC precisely detects and reacts to overcurrent and overvoltage conditions, disconnecting the load during fault conditions to safeguard connected devices. It offers a fixed 17.5 V output clamp to prevent output voltage spikes, and under-voltage lockout function ensures the device stays off when input voltage is insufficient, avoiding malfunction.
Inrush current control is enhanced via an adjustable turn-on slew-rate, accommodating hot-swap operations and maintaining system stability at startup. Thermal protection further improves device reliability under stressed conditions.
Packaged in a compact 10-pin DFN10L surface-mount package (3.15 mm × 3.15 mm × 1 mm), the device suits high density PCB layouts in consumer and industrial electronics. Wide input voltage range from 4 V to 18 V supports flexible system designs.
5 A maximum continuous current rating for powering demanding loads. Integrated 40 mΩ power FET reduces conduction losses. Adjustable turn-on slew-rate to minimize inrush current effects. Overcurrent and overvoltage protection with automatic load disconnection.
Under-voltage lockout prevents device operation when input is insufficient. Thermal protection enhances device robustness and safety. Compact 10-pin DFN10L surface mount package for space-constrained applications. Operating temperature range: -40°C to 125°C for industrial reliability.
Ideal for USB power switching and other electronic power management applications.
This power switch IC is well suited for industrial, consumer electronics, computing, and embedded system power management use cases. Its robust protection features enable secure power delivery and efficient control in various environments.
Explore more power management ICs and electronic components at EnvMart for reliable industrial and commercial electronics solutions.
Explore more products in our Power Switch ICs category.
