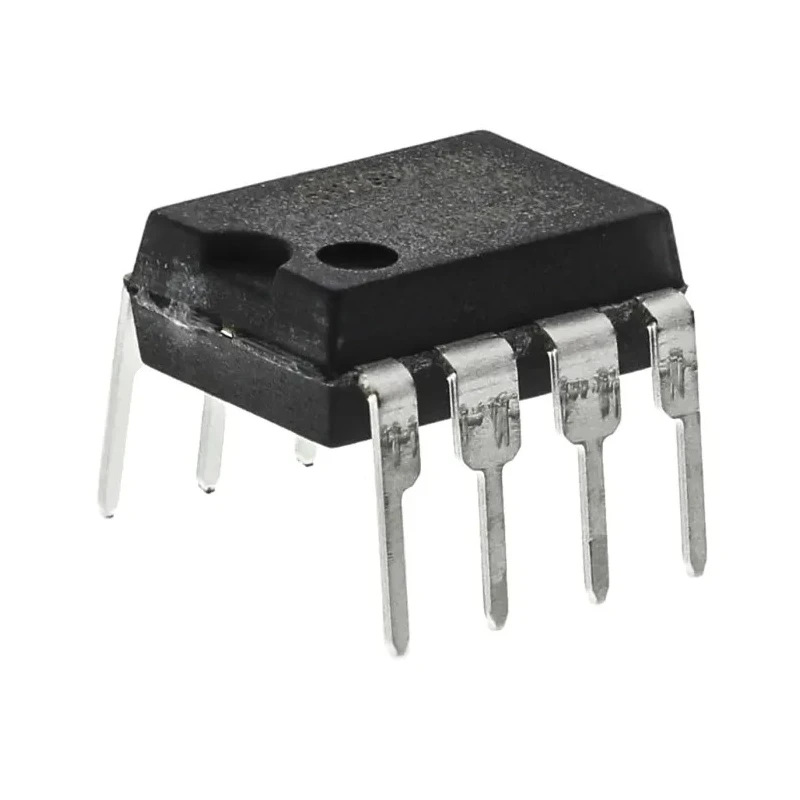

STMicroelectronics High Speed Power Switch IC 8-Pin PDIP TDE1798DP

STMicroelectronics TDE1798DP is a high speed power switch IC packaged in an 8-pin PDIP, integrating intelligent high side switches with advanced logic interface, drivers, diagnostic, and protection features. This power switch IC supports through-hole mounting and is designed for robust performance in various electronic systems requiring efficient power management with safety controls.

Operating at a maximum supply voltage of 50V and an operating current of 8mA, the TDE1798DP supports reliable functionalities within an operating temperature range of -25°C to 85°C. Its compact size, measuring 10.92mm in length, 6.6mm in width, and 3.32mm in height, allows seamless integration on printed circuit boards (PCBs) where space is limited.

With a single output configuration, this IC serves well in power switch applications across industrial control equipment, consumer electronics, and other power management systems needing high side switching solutions. The device does not hold automotive standard certification but is widely used in general electronics for switching and protection tasks.

The TDE1798DP simplifies high side power switching by combining power stage and control logic, reducing component count and easing design complexity. Its through-hole PDIP package enhances handling during manufacturing and supports legacy PCB designs requiring robust and reliable switch ICs.

Key features include integrated diagnostic and protection mechanisms that safeguard the connected systems, improving device reliability and safety in operation. This IC is suitable for engineers and designers aiming for efficient power management components with straightforward implementation.

The device integrates diagnostic and protection features for enhanced control and safety. Designed for through-hole mounting with a standard 8-pin PDIP package. Operates at a maximum supply voltage of 50V and an operating current of 8mA.

Suitable for operation in environments ranging from -25°C to 85°C. Compact dimensions with 10.92mm length, 6.6mm width, and 3.32mm height ensure easy PCB integration. Provides a single output for high side power switching applications.

Reliable through-hole package simplifies assembly and handling. This product is ideal for use in electronics manufacturing, industrial power management, and embedded systems design, supporting both prototyping and mass production phases.
