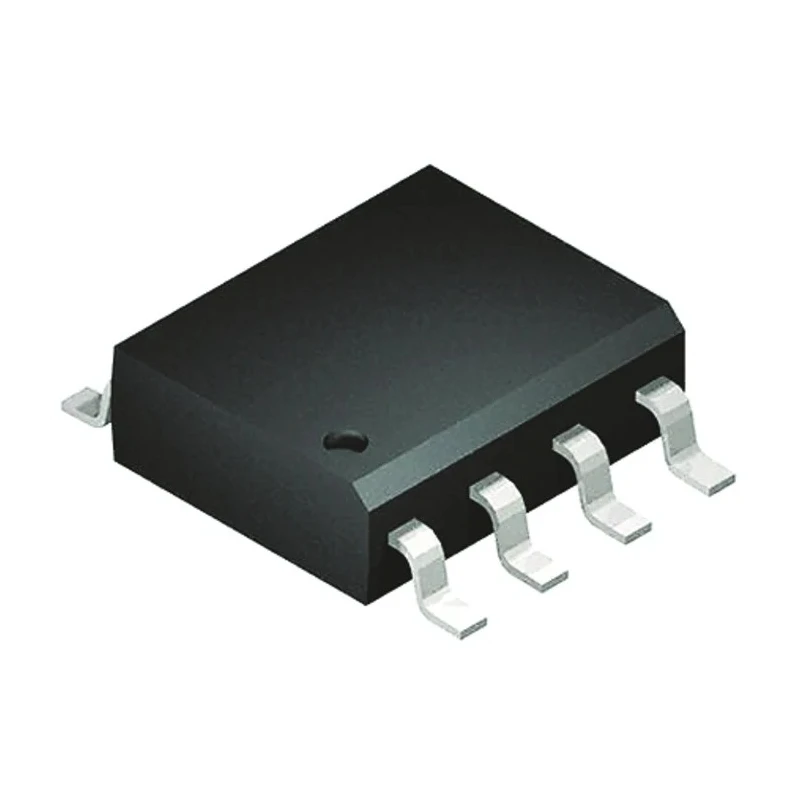

Microchip 1 MB EEPROM, 50 ns, 20 MHz, 8-Pin SOIJ SPI Memory 25LC1024-E/SM

Microchip 25LC1024-E/SM is a 1 MB EEPROM memory chip featuring a 50 ns access time and 20 MHz maximum clock frequency. It is packaged in an 8-pin SOIJ surface mount device, suitable for compact electronic designs.

This EEPROM uses a Serial Peripheral Interface (SPI) protocol, enabling efficient and reliable data transfer in embedded systems and microcontroller applications. It supports a memory organisation of 128K x 8 bits, with each word being 8 bits wide. The device operates over a supply voltage range of 2.5 V to 5.5 V, making it compatible with a wide range of digital circuits.

Designed to withstand harsh operating conditions, the chip functions reliably within a temperature range of -40°C to 125°C, making it ideal for automotive, industrial, and commercial electronics use cases. Its compliance with the automotive standard AEC-Q100 emphasizes its quality and durability.

The package dimensions allow for integration into densely populated circuit boards, measuring 5.26 mm in length, 7.94 mm in width, and 1.27 mm in height. It has a low supply current consumption of 10 mA, ensuring energy-efficient performance.

Data retention capability extends up to 200 years, providing long-term reliability for critical data storage. The maximum random access time of 50 ns allows for fast read/write operations in performance-sensitive applications.

This EEPROM is widely utilized in electronic components, semiconductors, memory chips sector for applications including automotive control systems, industrial machinery controls, embedded microcontrollers, and communication devices.

Operates with a maximum clock frequency of 20 MHz for fast data access. Supports SPI interface ensuring efficient serial communication. Wide operating temperature range from -40°C to 125°C suitable for automotive and industrial use.

Memory organisation of 128K x 8 bits with 8 bits per word. 200 years data retention for reliable storage. Supply voltage range of 2.5 V to 5.5 V compatible with various digital circuits. Compact 8-pin SOIJ surface mount packaging with small dimension footprint.

Automotive AEC-Q100 standard compliance for quality assurance. Low supply current of 10 mA and 50 ns maximum access time. Explore the Electronics & Electricals category on EnvMart for more semiconductor and memory chip solutions from leading brands like Microchip.
