Tele Multi-function DIN Rail Timer Relay 1-Contact 12-240V AC/DC 0.05 s to 100 h E1ZI10

Free Delivery in India | Lowest Global Shipping Charges

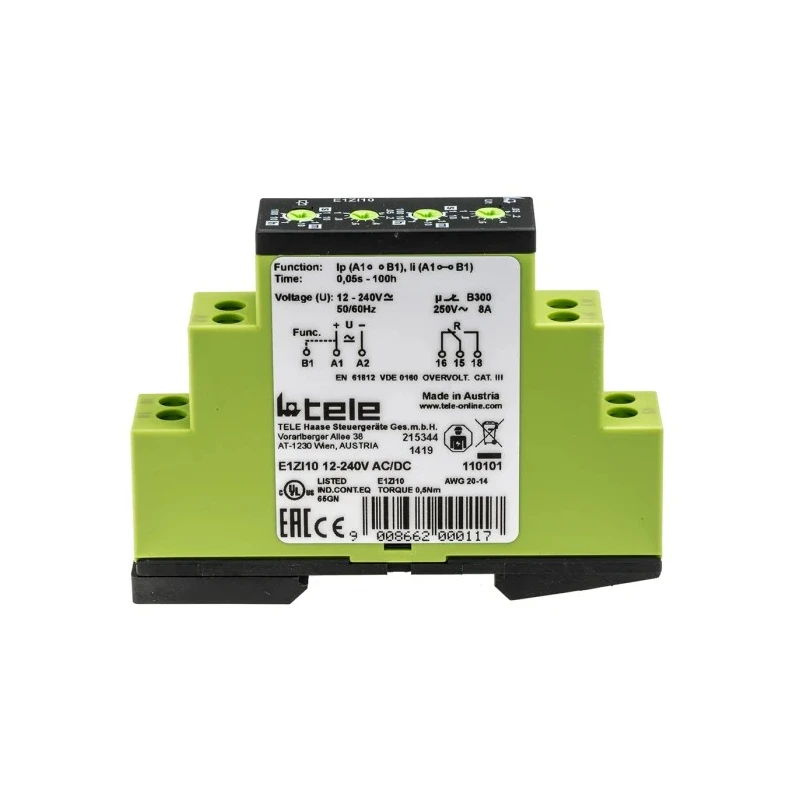

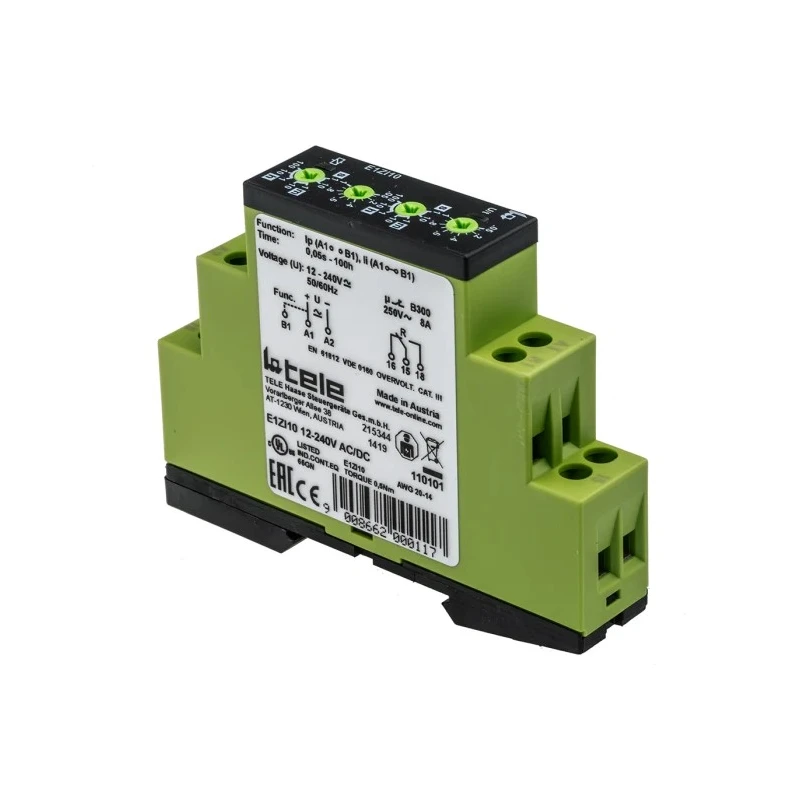

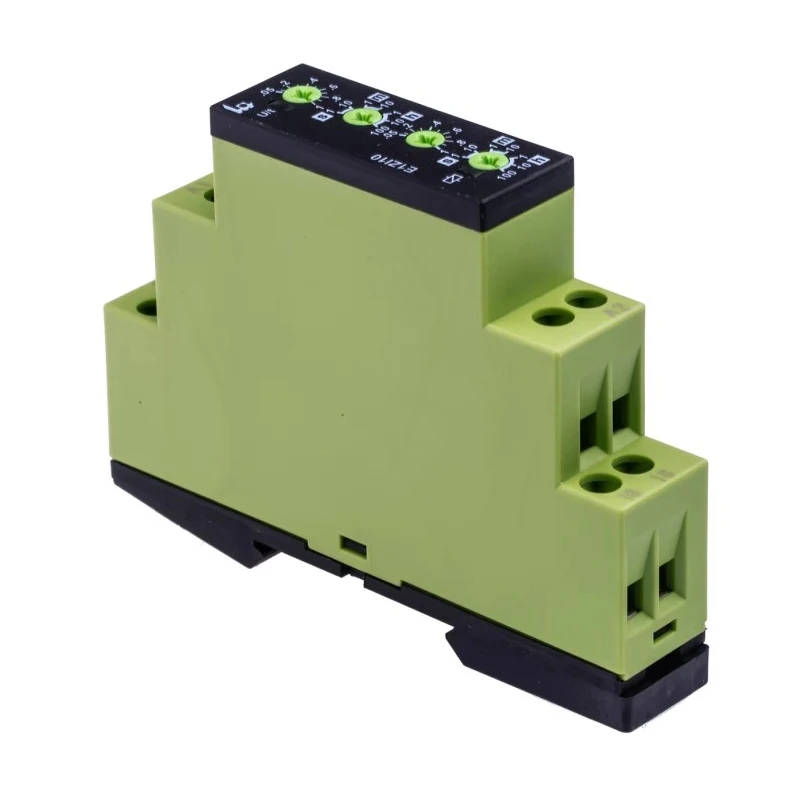

Tele Multi-function DIN Rail Timer Relay 1-Contact 12-240V AC/DC 0.05 s to 100 h E1ZI10

Name: Tele Multi-function DIN Rail Timer Relay 1-Contact 12-240V AC/DC 0.05 s to 100 h E1ZI10
Brand: Tele
SKU: 146032
Price: 97.15 USD
Availability: InStock



Category Timer Relay Brand Tele Condition New

Specifications

Country of Origin	Austria
Brand	Tele
Height	65mm
Function	Asymmetry
Length	87mm
Model	E1ZI10
IP Rating	IP40
Mode	Star-Delta
Width	17.5mm
Mount Type	DIN Rail
Series	E1ZI10
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Time Range	0.05 s to 100 h
Terminal type	Screw
Standards/Approvals	IEC
Number of Contacts	1
Number of Timer Functions	Multifunction
Supply DC Voltage	240 V dc
Timing Adjustment	Knob
Supply AC Voltage	12, 240V ac

Key Features

Operates with dual supply voltage range from 12 V AC/DC up to 240 V AC/DC.
Compact DIN rail mount design with screw terminals for easy installation.
Provides precise timing adjustment via a knob for flexible use.
Rated for contact output of 8A at 250 VAC with SPDT contact configuration.
Robust IP40 protection housing suitable for industrial environments.
Wide operating temperature range from -25°C to 55°C.
LED status indication ensures easy operation monitoring.
Reset time of approximately 100 ms for rapid cycling.

Product Description

Tele E1ZI10 series is a multi-function timer relay designed for versatile asymmetry timing functions with pulse-start and pause-start delay modes. It supports a broad time range from 0.05 seconds up to 100 hours, offering high precision suitable for various automation and process control applications. Its compact, solid-state design allows easy integration into new or existing DIN rail mounted systems.

Equipped with a single SPDT contact rated at 8A at 250 VAC, the relay operates with a wide input voltage range from 12 V AC/DC to 240 V AC/DC, simplifying installation and compatibility. The device features a knob for accurate timing adjustment, LED indicators for operational status, and an IP40 rated self-extinguishing plastic housing that ensures durability and safety in industrial conditions.

Operating effectively within a temperature range of -25°C to 55°C, the E1ZI10 series supports star-delta mode applications and includes screw-type terminals for secure electrical connections. This compact timer relay measures 87 mm in length, 17.5 mm in width, and 65 mm in height, making it suitable for space-constrained panel designs.

SPDT 1-contact configuration with 8A relay output at 250 VAC. Dual supply voltage 12 V AC/DC to 240 V AC/DC. Timing range of 0.05 seconds to 100 hours with multifunction capabilities. DIN rail mounting compatible with screw terminal type connections.

Self-extinguishing plastic housing with IP40 protection rating. Operating temperature from -25°C to 55°C ensures versatile usage. LED status indicator for easy operational monitoring. Complies with IEC 60947-5-1, IEC 60664-1, IEC 60721-3-3, and IEC 61812-1 standards.

Compact dimensions of 87mm x 17.5mm x 65mm for efficient space use.

This Tele E1ZI10 timer relay is ideal for industrial automation, chemical processing, mining, irrigation, raw material handling, food and beverage industries, and various industrial process control applications. Its multifunction features, reliability, and compliance with global standards make it a robust choice for diverse control system needs.
