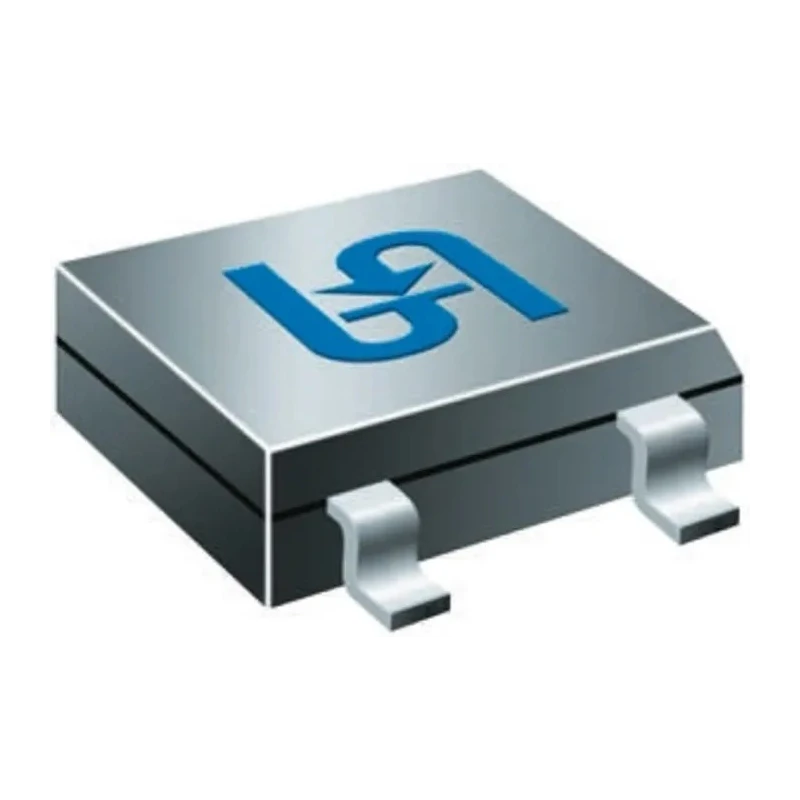

Taiwan Semiconductor Bridge Rectifier 1400 V 50 A 4-Pin Single DBLS209G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS209G |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS209G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 1400V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.3V |
Key Features
- Surface mount package type DBLS with 4 pins for easy PCB integration.
- Peak reverse repetitive voltage (Vrrm) of 1400 V for high voltage applications.
- Forward current of 2 A continuous with 50 A surge capability.
- Wide operating temperature from -55°C to 150°C ensures reliable performance.
- Low peak forward voltage of 1.3 V minimizes power loss.
- Glass passivated junction for enhanced durability and reliability.
- Complies with automotive standard AEC-Q101.
Product Description
Taiwan Semiconductor DBLS209G Bridge Rectifier is designed for converting alternating current (AC) to direct current (DC) in various electronic circuits. This 4-pin single configuration bridge rectifier offers a peak reverse repetitive voltage of 1400 V and a forward current rating of 2 A, making it suitable for high-voltage and high-current applications in industrial, automotive, and consumer electronics sectors.
The DBLS209G features a glass passivated junction for improved device longevity and utilizes a molded plastic construction, ensuring reliable mechanical protection and efficient automated PCB mounting. Its surface mount type package (DBLS) facilitates space-saving on printed circuit boards.
The device supports a broad operating temperature range from -55°C to 150°C, suitable for harsh environmental conditions. Its low peak forward voltage of 1.3 V reduces conduction losses, augmenting energy efficiency. Additionally, the rectifier complies with the automotive standard AEC-Q101, underpinning its robustness for automotive electronic systems.
With compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height, this component integrates smoothly into dense PCB layouts. It is ideal for industrial machines, HVAC controls, power supplies, and various electronics manufacturing applications.
Surface mount DBLS package with 4-pin single bridge rectifier. Peak reverse repetitive voltage of 1400 V and peak surge current of 50 A. Forward current of 2 A for continuous operation. Wide operating temperature range from -55°C to 150°C.
Low peak forward voltage of 1.3 V. Glass passivated junction construction. Meets AEC-Q101 automotive standard. Compact size: 8.51 x 6.5 x 2.6 mm dimensions.
This Taiwan Semiconductor Bridge Rectifier DBLS209G is an essential component for efficient AC to DC conversion in critical electronic power applications, suitable for industrial, automotive, laboratory, and commercial use cases. Explore more high-quality semiconductor products within the EnvMart electronics category to fulfill your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DBLS209G has a peak reverse repetitive voltage (Vrrm) of 1400 V, making it suitable for high-voltage applications.
This model has a forward current rating of 2 A for continuous operation, with a peak surge capability of 50 A.
The dimensions of the DBLS209G are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
It operates within a wide temperature range from -55°C to 150°C, suitable for harsh environmental conditions.
The DBLS209G uses a surface mount package type DBLS, which facilitates easy PCB integration.
This model complies with the automotive standard AEC-Q101, ensuring its suitability for automotive applications.
The peak forward voltage (Vf) of this bridge rectifier is 1.3 V, which helps minimize power loss.
This bridge rectifier features a 4-pin configuration for easy integration into electronic circuits.
The DBLS209G features a glass passivated junction, which enhances its durability and reliability.
It is suitable for various applications including industrial machines, HVAC controls, and power supplies.
The peak reverse current (Ir) for this model is 10 μA, indicating its low leakage characteristics.
The configuration type of this bridge rectifier is single, designed for converting AC to DC in electronic circuits.
