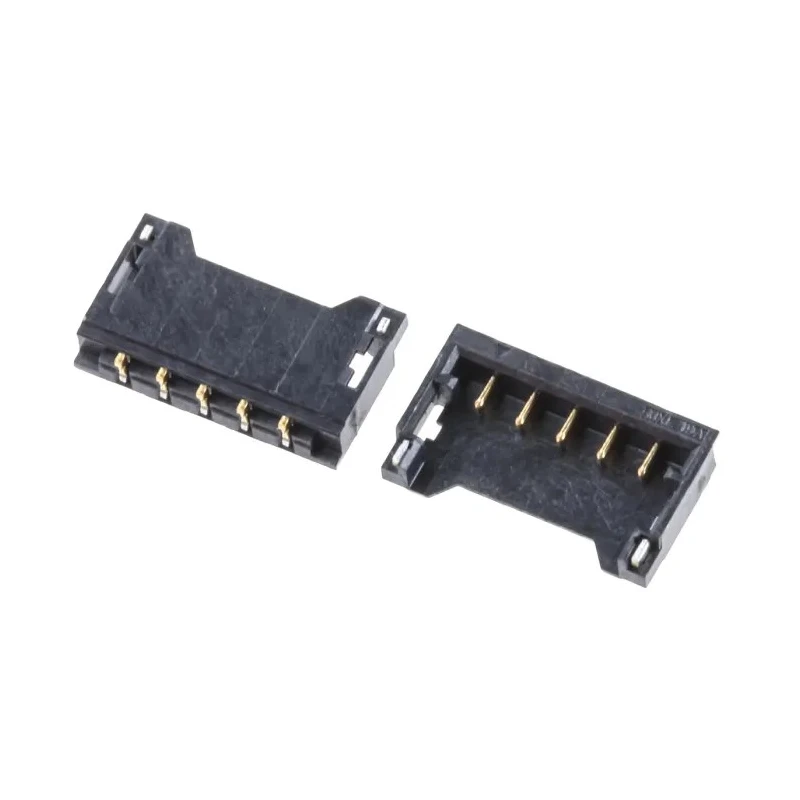

Molex Pico-Ezmate Series Straight Surface PCB Header 5 Contacts 1.2 mm Pitch 1 Row Shrouded 78171-0005

Free Delivery in India | Lowest Global Shipping Charges

Molex Pico-Ezmate Series Straight Surface PCB Header 5 Contacts 1.2 mm Pitch 1 Row Shrouded 78171-0005

Name: Molex Pico-Ezmate Series Straight Surface PCB Header 5 Contacts 1.2 mm Pitch 1 Row Shrouded 78171-0005
Brand: Molex
SKU: 214232
Price: 0.6 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Malaysia
Voltage	50V
Brand	Molex
Orientation	Straight
Current	1.5A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	Pico-Ezmate
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.2mm
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This header has a single row configuration suitable for wire-to-board connections.
It features a durable Liquid Crystal Polymer housing providing UL 94V-0 flame retardance.
The contacts are made from a copper alloy with gold plating ensuring reliable electrical conductivity.
Designed for operation from -40°C up to 105°C for broad application environments.
The connector supports 1.5A current and 50V voltage ratings.
The 1.2 mm pitch and shrouded design ensure secure and polarized mating with mating receptacles.
Intended for compact electronic devices such as mobile phones and notebook PCs.
Offers friction locking and audible click feedback during mating for assembly assurance.

Product Description

Molex 78171-0005 is a Pico-Ezmate Series straight surface mount PCB header connector featuring 5 male contacts arranged in a single row with a 1.2 mm pitch. It is designed for wire-to-board applications requiring a compact, reliable, and low-profile connection solution. The header incorporates a shrouded housing made from black UL 94V-0 Liquid Crystal Polymer (LCP), offering excellent flame retardance and durability.

The contacts are manufactured from copper alloy and are plated with gold over nickel to guarantee excellent conductivity and corrosion resistance. The connector supports operating currents up to 1.5A and voltages up to 50V, and operates effectively across a wide temperature range from -40°C to +105°C. Key design features include polarization, keying, friction locking, and an audible click during mating that provide secure and error-free assembly.

These characteristics make the Molex 78171-0005 header suitable for compact electronic devices such as mobile phones, notebooks, and portable audio equipment. The surface mount termination type facilitates automated PCB assembly using embossed tape packaging. The product is manufactured in Malaysia and complies with European RoHS guidelines for hazardous substances control.

This header is part of the Pico-Ezmate 78171 series designed for wire-to-board SMT applications. The shrouded design prevents incorrect mating and protects the contacts. The contact plating ensures long-term reliability and stable electrical connections.

The low profile allows for space-efficient designs in small electronic devices. The product complements Pico-Ezmate 78172 series receptacle housings for complete wire-to-board connector systems.

The Molex Pico-Ezmate family supports industrial applications including consumer electronics manufacturing, telecommunications, and compact mobile device assembly. Its high-precision construction and secure locking mechanism ensure dependable performance in high-volume production environments.

Explore more PCB Headers and connectors at EnvMart for diverse electronics assembly requirements.
