| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.8mm |
| Length | 2.7mm |
| Model | BZX84J-C39,115 |
| Mount Type | Surface |
| Series | BZX84J |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 550mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 39V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 75Ω |
| Typical Voltage Temperature Coefficient | 41.2mV/K |
| Total power dissipation | ≤ 550 mW |
| Non-repetitive Peak reverse power dissipation | ≤ 40 W |
| Two tolerance series | ±2 % and ±5 % |
| Wide working voltage range | nominal 2.4 V to 75 V (E24 range) |

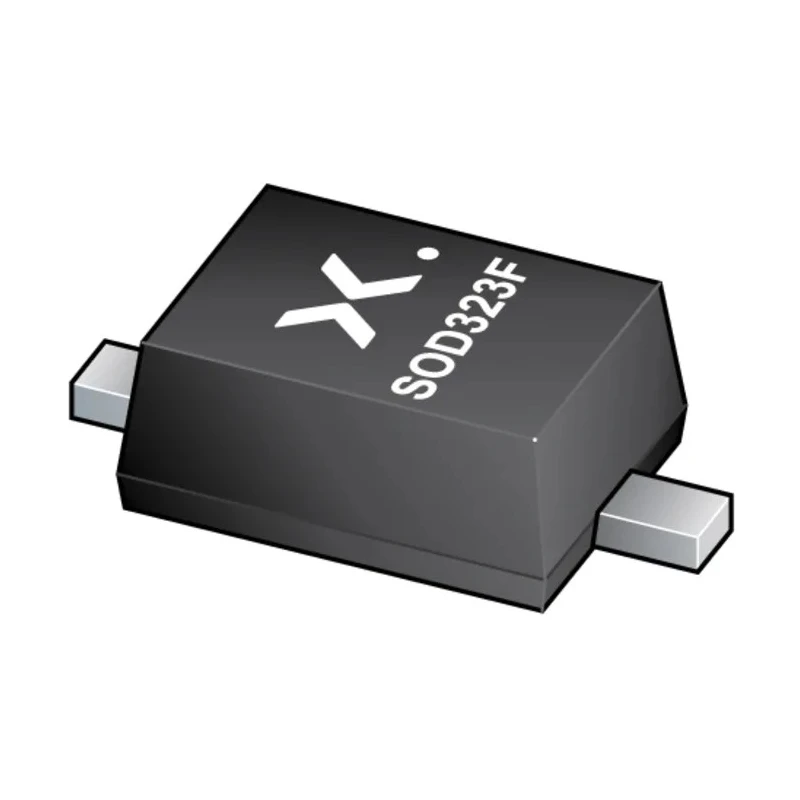

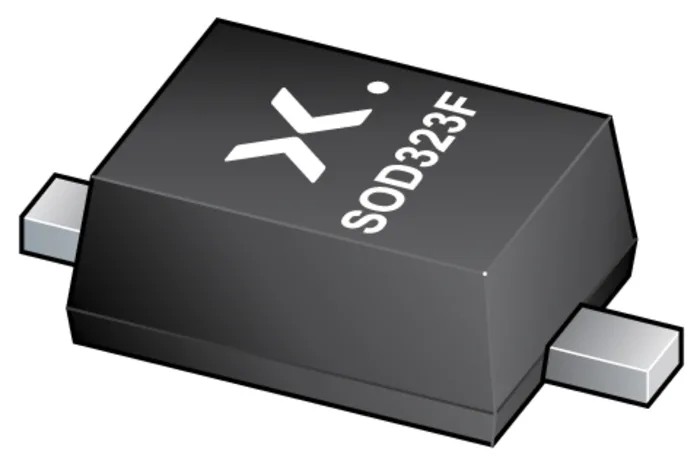

Nexperia BZX84J-C39,115 is a single Zener diode designed for general-purpose voltage regulation applications. It features a nominal zener voltage of 39 V and a total power dissipation capacity of 550 mW. Packaged in a SOD-323 surface-mount plastic package, this diode is ideal for compact electronic circuits requiring stable voltage references.
The diode is designed for surface mounting with 2 pins, featuring a small and flat lead package with precise electrical characteristics. It operates reliably in temperature extremes from -55°C up to 150°C, making it suitable for automotive and industrial applications.
This product complies with the AEC-Q101 automotive standard, assuring quality and performance in automotive electronic systems. The diode supports a test current of 5 mA with a maximum zener impedance of 75 ohms, ensuring stable voltage across the working range.
With a tight voltage tolerance of ±5%, this Zener diode provides accurate voltage clamping and reference functions in power supply and signal conditioning circuits. Its low maximum reverse leakage current of 50 nA minimizes unwanted current flow in reverse bias.
The diode has a non-repetitive peak reverse power dissipation rating of up to 40 W, providing surge protection capability in transient voltage events. A typical voltage temperature coefficient of 41.2 mV/K ensures voltage stability with temperature variations.
The compact SOD-323 package optimizes space in PCB layouts. Suitable for general electronic, automotive, and industrial circuits requiring stable voltage regulation. Offers reliable performance over a wide temperature and voltage range.
AEC-Q101 certification supports use in automotive electronics. Low reverse leakage current ensures efficient circuit operation. Exact control of voltage tolerance enhances circuit precision. Robust power dissipation ratings enable use in demanding transient environments.
This Nexperia Zener diode model BZX84J-C39,115 is ideal for engineers and manufacturers in the electronics, automotive, and industrial sectors. Browse the Electronics & Electricals > Semiconductor > Zener Diodes category for more components with reliable specifications and certifications available through EnvMart.
