Molex Mini-Fit Plus Series Straight Through Hole PCB Header 8 Contact 4.2 mm Pitch 2 Row Shrouded 46015-0803

Free Delivery in India | Lowest Global Shipping Charges

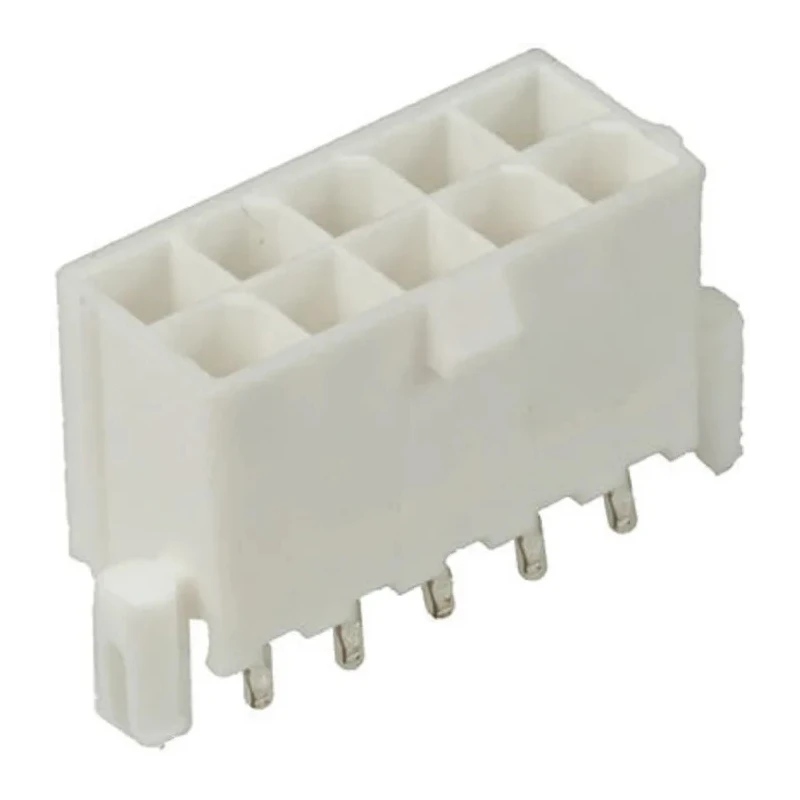

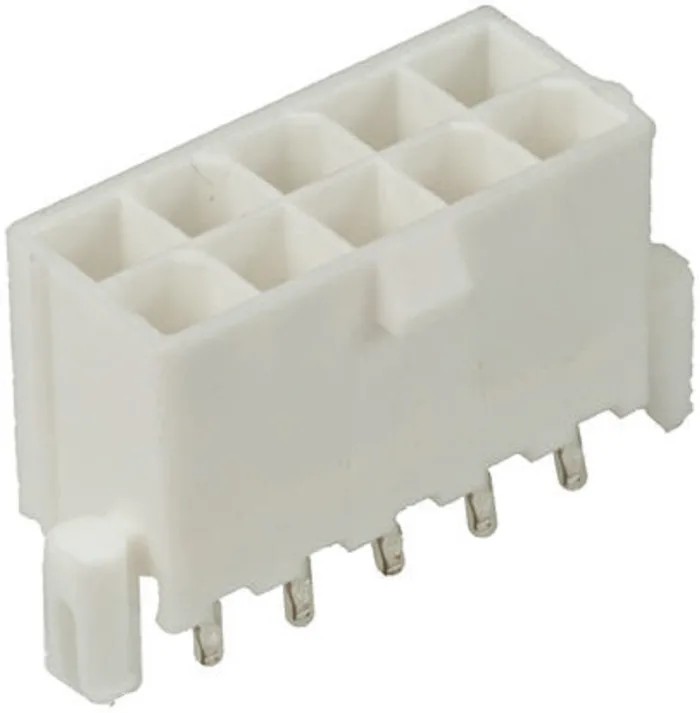

Molex Mini-Fit Plus Series Straight Through Hole PCB Header 8 Contact 4.2 mm Pitch 2 Row Shrouded 46015-0803

Name: Molex Mini-Fit Plus Series Straight Through Hole PCB Header 8 Contact 4.2 mm Pitch 2 Row Shrouded 46015-0803
Brand: Molex
SKU: 214192
Price: 1.48 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	600V
Brand	Molex
Orientation	Straight
Current	12A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Copper Alloy
Series	Mini-Fit Plus
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	4.2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector supports 12A current capacity, suitable for demanding electrical circuits.
Constructed with nylon housing, ensuring excellent insulation and mechanical reliability.
Shrouded design provides added protection for the contacts and reduces the risk of mis-mating.
Features a straight orientation with through-hole mount type for stable and secure PCB integration.
Contacts are male gender made of copper alloy with tin plating for superior conductivity and corrosion resistance.
Operates reliably between -40°C and 105°C, suitable for varied industrial environments.
Designed for wire-to-board connector system, beneficial for compact and efficient electronic assemblies.
Product's country of origin is Mexico, assuring quality manufacturing standards.

Product Description

Molex 46015-0803 Mini-Fit Plus Series Straight Through Hole PCB Header is engineered for high current, reliable wire-to-board connections in industrial and electronic equipment. The 8-contact, 2-row header features a 4.2 mm pitch and shrouded design, enhancing durability and preventing incorrect mating during assembly.

Its nylon housing provides robust insulation and mechanical stability suitable for environments with temperature extremes from -40°C up to 105°C. The male contacts are crafted from copper alloy and plated with tin to ensure excellent conductivity and protection against oxidation.

This PCB header supports a maximum current of 12A and 600V, making it ideal for power distribution and control circuit applications in sectors such as manufacturing, automation, and electronics assembly.

The through-hole mount type enables firm soldered connections to PCB boards, providing stability in vibration-prone or demanding industrial settings. The shrouded contact system improves safety and reliability of connections.

The connector offers high current capability of up to 12A for power-intensive circuits. Nylon housing ensures electrical insulation and mechanical protection. Shrouded contact design enhances connector safety and alignment.

Solder termination combined with through-hole mounting ensures durable PCB attachment. Wide operating temperature range supports various industrial environments. Male copper alloy contacts plated with tin provide reliable electrical contact.

Wire-to-board system facilitates compact and efficient PCB connector arrangements. Voltage rating of 600V streams supports versatile electrical applications. Made in Mexico following quality manufacturing standards. Its design balances high electrical performance with durability, reliability, and ease of integration.
