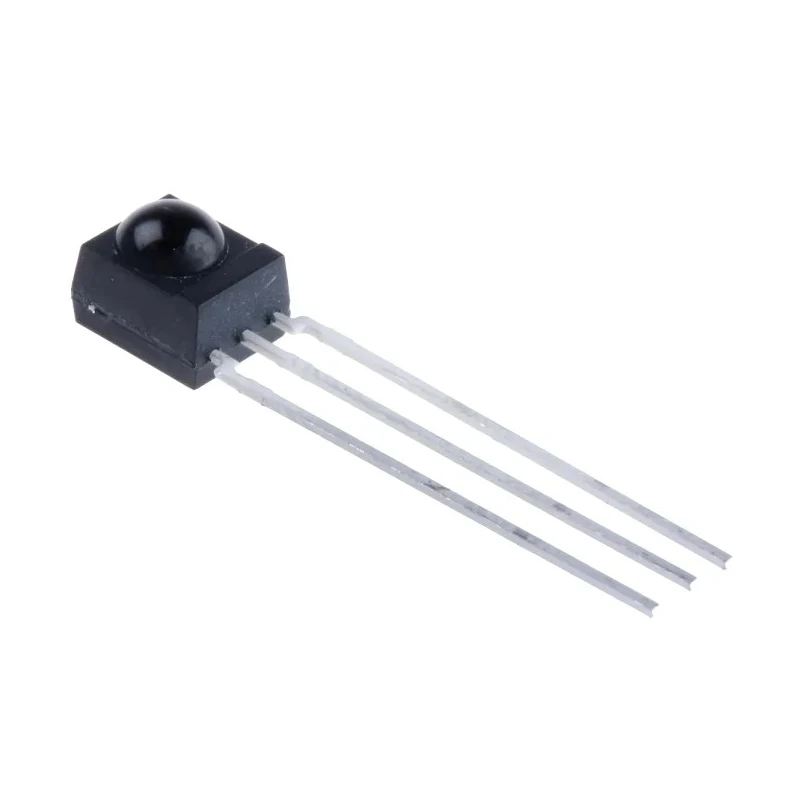

Vishay 36 kHz IR Receiver Through Hole Mold Package 2.5V-5.5V 6.95mm x 6mm TSOP34836

Vishay TSOP34836 is a highly sensitive 36 kHz infrared (IR) receiver designed for remote control and infrared communication applications. Packaged in a through hole mold encapsulation measuring 6.95 mm height, 6 mm length, and 6 mm width, this compact device operates over a supply voltage range of 2.5 V to 5.5 V with a low supply current of 450 μA, making it ideal for energy-conscious designs.

The device features a 3-pin top view orientation and supports an output current of 5 mA. It is capable of detecting IR signals with a ±45° angle of half transmission distance and enables a maximum transmission distance of 45 meters, providing reliable remote sensing and signal reception over relatively long ranges.

Its operating temperature range of -25°C to 85°C allows it to perform well in conditions varying from cold industrial environments to warmer consumer applications. This IR receiver caters to applications such as IR code learning, repeaters, IR light barriers, and proximity sensing in both commercial and industrial sectors.

Operates at 36 kHz carrier frequency with ±45° half transmission angle. Maximum transmission distance of 45 meters provides extended range. Compact 3-pin through hole, mold package for easy PCB integration. Wide operating temperature range from -25°C to 85°C.

Low supply current consumption of 450 μA for efficiency. Suitable for remote controls, IR communication, and proximity sensors. Complies with international RoHS and JEDEC JS709A standards.

This Vishay IR receiver is an excellent choice for industrial, laboratory, and commercial electronics requiring reliable infrared signal detection with moderate range and low power consumption. Browse more Vishay IR receiver products on EnvMart to find components suitable for diverse electronic control and sensing needs.
