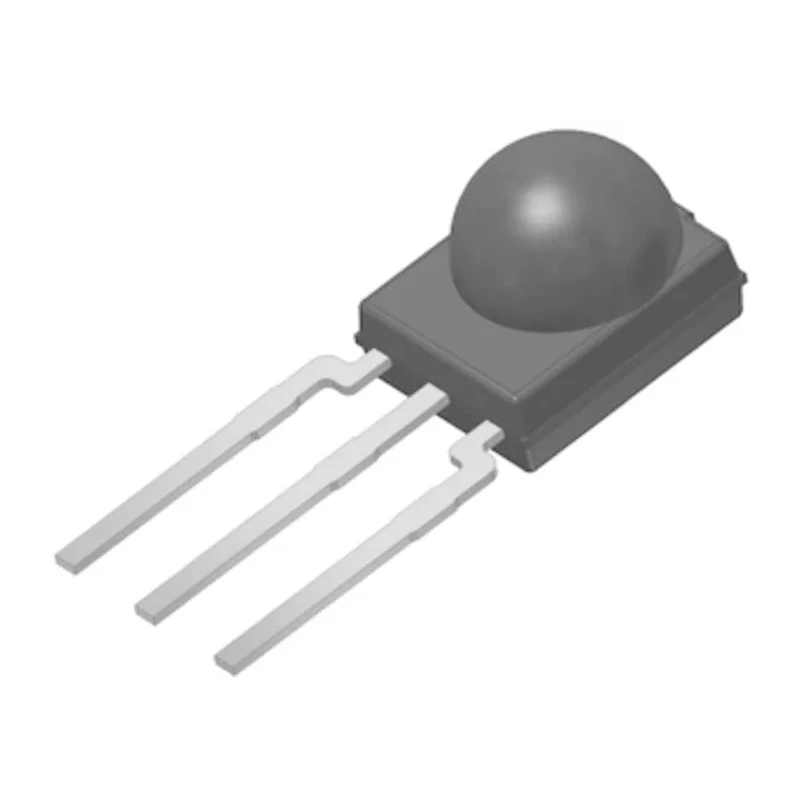

Vishay 38 kHz IR Receiver , ±45° Angle, 30 m Range, 2.5 V to 5.5 V Supply, Through Hole Mount, TSOP Package 6.35 TSOP13238

Vishay TSOP13238 is a high-performance 38 kHz infrared receiver module engineered for robust remote control system applications. This device features a ±45° angle of half transmission distance and supports a maximum range of up to 30 meters, facilitating reliable data reception in diverse environments.

The module integrates a PIN diode and preamplifier within a compact TSOP package measuring 6.35 mm in height, 5.4 mm in length, and 4.9 mm in width. It operates over a wide supply voltage range of 2.5 V to 5.5 V with a low supply current of approximately 900 μA, optimizing power efficiency in battery-operated systems.

Key advantages of the TSOP13238 include enhanced sensitivity to signals in dark ambient conditions and improved immunity to optical disturbances, including those from compact fluorescent lamps and Wi-Fi noise. This robustness ensures consistent performance in electrically noisy industrial or commercial settings.

The demodulated output signal is compatible for direct connectivity with microprocessors for infrared signal decoding, simplifying integration in consumer electronics, industrial remote controls, and automation systems.

Improved dark sensitivity for reliable infrared signal reception. Enhanced resistance to optical and radio frequency interference. Low power consumption suitable for portable devices. Compact through hole TSOP package for easy mounting.

Wide operating temperature range from -25°C to 85°C for demanding environments. Wide supply voltage range from 2.5 V to 5.5 V ensures compatibility with multiple electronics. Contains PIN diode and preamplifier integrated in a single package.

Designed for use in consumer electronics, remote control systems, and industrial signal reception.

The product is manufactured in the Philippines and complies with standard manufacturing quality. It is ideal for applications requiring precise infrared signal detection with immunity to environmental noise.
