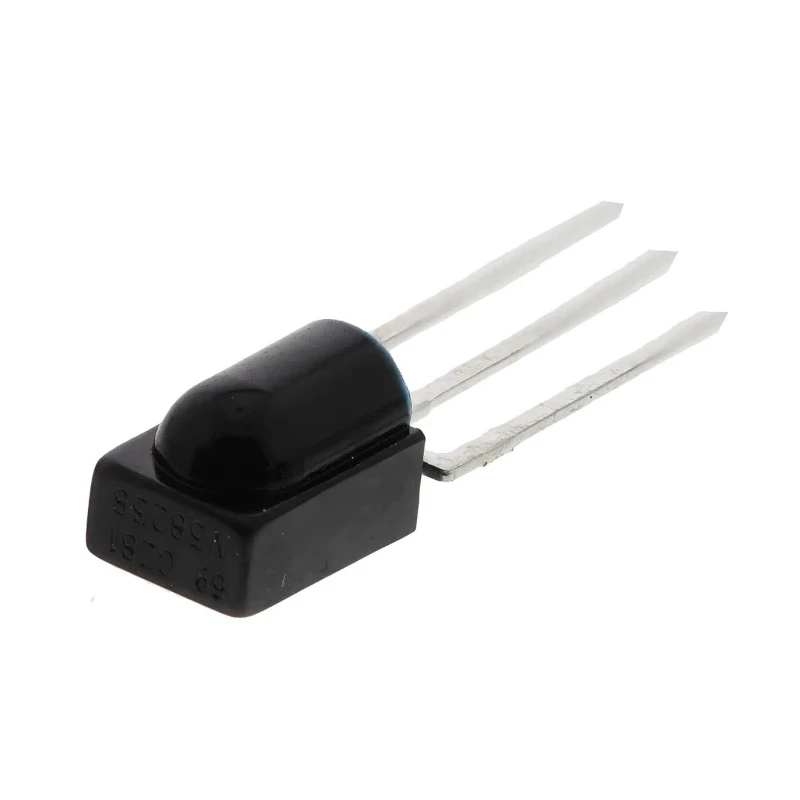

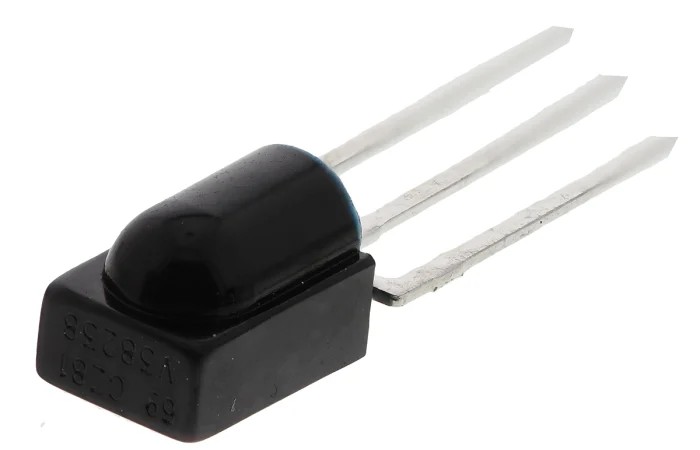

Vishay 38 kHz IR Receiver ±45° Angle, 45 m Range, 2.5 V to 5.5 V Supply, Through Hole Minicast Package TSOP38238

Vishay TSOP38238 IR Receiver is an industrial-grade infrared remote control receiver module optimized for robust performance in electronic communication systems and consumer electronics. It operates at a carrier frequency of 38 kHz and supports a wide detection angle of ±45°, enabling effective reception over a maximum distance of 45 meters.

This device utilizes a through-hole Minicast package featuring compact dimensions of 6.95 mm height and 5 mm footprint, making it suitable for integration in dense PCB layouts. It features a 3-pin configuration typical of IR Receivers, designed for ease of mounting and reliable electrical connection.

Power consumption is minimized with a nominal supply current of 450 μA while accommodating supply voltages between 2.5 V and 5.5 V, allowing use in varied power supply environments. The component is rated to function reliably within an operating temperature range of -25°C to 85°C, suitable for both consumer electronics and industrial applications.

The TSOP38238 series complies with JEDEC standards providing assurance of manufacturing quality and performance consistency. Typical applications include infrared remote controls, signal repeaters, proximity sensing, infrared communication devices, and light barrier detection. The output current capability of 5 mA makes it compatible with typical microcontroller and driver inputs without additional amplification.

Operates at 38 kHz carrier frequency for IR remote applications. ±45° angle of half transmission distance for wide reception coverage. Through hole Minicast package for reliable mounting. Wide operating voltage from 2.5 V to 5.5 V supports multiple power environments.

Low supply current of 450 μA for efficiency in portable devices. Operating temperature from -25°C up to 85°C. JEDEC compliant package ensuring quality and standardization. Maximum transmission distance of 45 meters for extended range applications.

3-pin configuration suitable for embedded IR communication circuits.

This IR receiver is sourced from Vishay Semiconductor, renowned for durable and precise electronic components fitting for industrial, consumer electronics, automation, and communication use cases. Explore more IR receiver products and similar electronic components on EnvMart for your design and manufacturing solutions.
