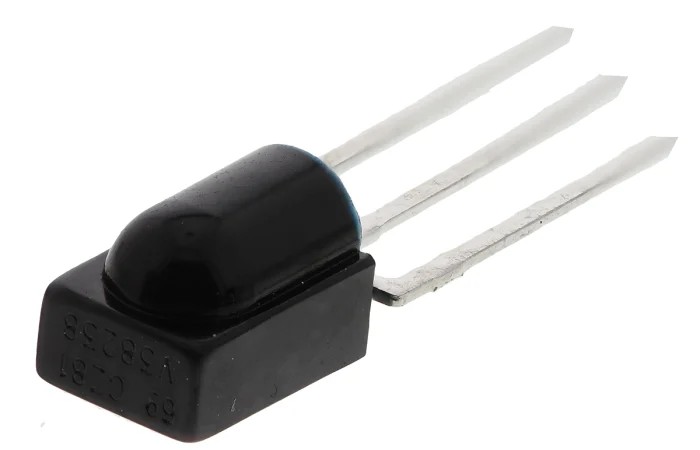

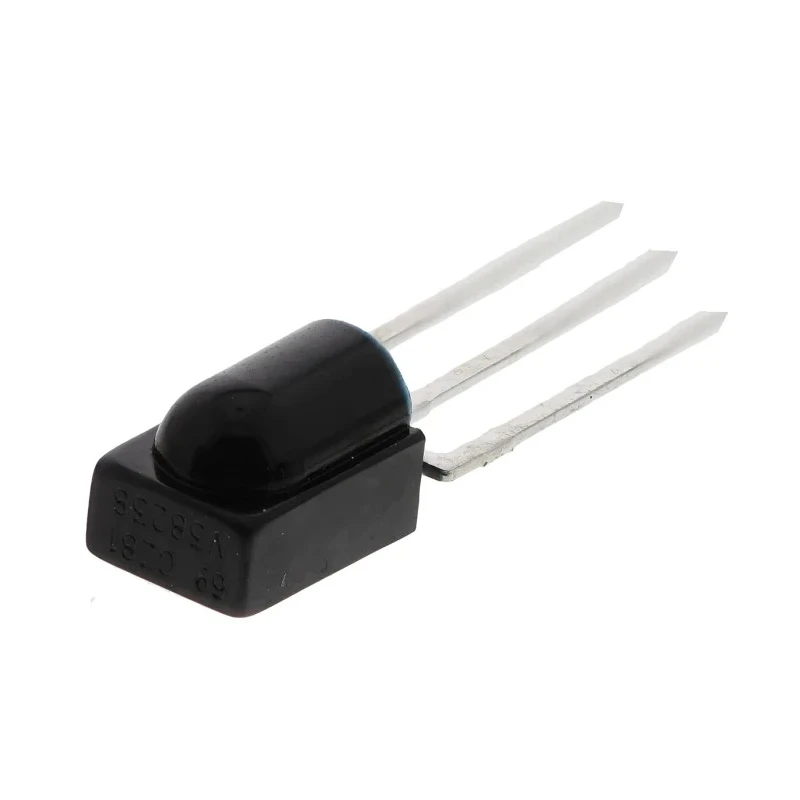

Vishay 38 kHz IR Receiver Through Hole Minicast 5 mm 3-Pin 2.5-5.5 V 45 m Range TSOP38238

Free Delivery in India | Lowest Global Shipping Charges

Vishay 38 kHz IR Receiver Through Hole Minicast 5 mm 3-Pin 2.5-5.5 V 45 m Range TSOP38238

Name: Vishay 38 kHz IR Receiver Through Hole Minicast 5 mm 3-Pin 2.5-5.5 V 45 m Range TSOP38238
Brand: Vishay
SKU: 217612
Price: 0.97 USD
Availability: InStock



Category IR Receivers Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Brand	Vishay
Orientation	Top View
Height	6.95mm
Length	5mm
Model	TSOP38238
Width	5mm
Mount Type	Through Hole
Series	TSOP
Output Current	5mA
Maximum transmission distance	45m
Maximum Operating Temperature	85°C
Package Type	Minicast
Minimum Operating Temperature	-25°C
Standards/Approvals	JEDEC
Number of Pins	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Supply Current	450μA
Carrier Frequency	38kHz
Angle of Half Transmission Distance	±45 °

Key Features

Highly sensitive infrared receiver suitable for remote control applications.
Wide angular reception of ±45 ° to efficiently capture IR signals.
Operates with supply voltage range of 2.5 V to 5.5 V.
Through hole mounting with a compact 5 mm Minicast package.
Features 3 pins with a minicast package height of 6.95 mm.
Low supply current consumption of approximately 450 μA for energy-efficient operation.
Designed for operation in temperatures ranging from -25°C to 85°C.
Output current capability of 5 mA suitable for driving standard input stages.

Product Description

Vishay TSOP38238 is a specialized infrared receiver designed for remote control and infrared communication applications. Operating at a carrier frequency of 38 kHz, it enables reliable signal reception up to 45 meters with a ±45 ° reception angle.

This IR receiver features a through hole mount type and is housed in a compact 5 mm Minicast package with dimensions of 6.95 mm height and 5 mm length and width. It incorporates 3 pins for easy integration into electronic assemblies.

Operating voltage ranges from 2.5 V to 5.5 V, with a low supply current of 450 μA, ensuring low power consumption in embedded and robotics systems. It delivers an output current of 5 mA to interface effectively with microcontrollers and other logic devices.

The device is built to withstand operating temperatures from -25°C to 85°C, making it suitable for a variety of industrial and consumer electronics environments. The product adheres to JEDEC standards, underscoring its quality and durability.

This IR receiver is widely used in industrial automation, consumer electronics remote control systems, infrared code learning and repeating, infrared light barriers, and proximity sensor applications.

Highly sensitive infrared receiver suitable for remote control applications. Wide angular reception of ±45 ° to efficiently capture IR signals. Operates with supply voltage range of 2.5 V to 5.5 V. Through hole mounting with a compact 5 mm Minicast package.

Features 3 pins with a minicast package height of 6.95 mm. Low supply current consumption of approximately 450 μA for energy-efficient operation. Designed for operation in temperatures ranging from -25°C to 85°C. Output current capability of 5 mA suitable for driving standard input stages.

Complies with JEDEC standards ensuring quality and reliability. Explore more infrared receiver solutions and electronic components from Vishay and other top brands on EnvMart.
