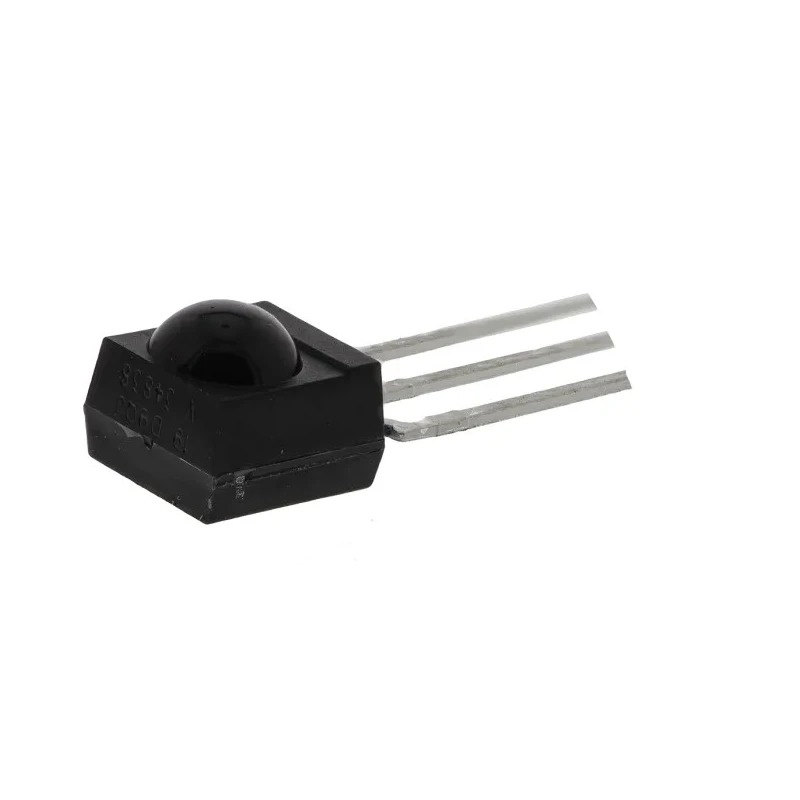

Vishay 38 kHz IR Receiver Through Hole Package ±45 ° Angle 45 m Range 2.5V-5.5V TSOP34838

Free Delivery in India | Lowest Global Shipping Charges

Vishay 38 kHz IR Receiver Through Hole Package ±45 ° Angle 45 m Range 2.5V-5.5V TSOP34838

Name: Vishay 38 kHz IR Receiver Through Hole Package ±45 ° Angle 45 m Range 2.5V-5.5V TSOP34838
Brand: Vishay
SKU: 214505
Price: 1.14 USD
Availability: InStock



Category IR Receivers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Orientation	Top View
Height	6.95mm
Length	6mm
Model	TSOP34838
Packaging	Tape & Reel
Width	6mm
Mount Type	Through Hole
Output Current	5mA
Maximum transmission distance	45m
Maximum Operating Temperature	85°C
Package Type	Mold
Minimum Operating Temperature	-25°C
Standards/Approvals	JEDEC
Number of Pins	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Supply Current	450μA
Carrier Frequency	38kHz
Angle of Half Transmission Distance	±45 °

Key Features

Highly sensitive infrared receiver optimized for remote control applications.
Operates at a carrier frequency of 38 kHz for robust IR signal reception.
Compact molded package measures 6.95 mm height, 6 mm length, and 6 mm width.
Supports a maximum transmission distance of up to 45 meters.
Supplies an output current of 5 mA and consumes 450 μA supply current.
Operates reliably in temperatures ranging from -25°C to 85°C.
Features 3-pin through hole mount for easy PCB integration.
Meets JEDEC standards ensuring quality and performance consistency.

Product Description

Vishay TSOP34838 is a high-performance 38 kHz infrared (IR) remote control receiver designed for applications requiring precise IR communication and remote control signal reception. Featuring a through hole 3-pin molded package with dimensions of 6.95 mm height, 6 mm length, and 6 mm width, this IR receiver supports a wide voltage range from 2.5 V to 5.5 V to accommodate various system power rails.

This device operates over a carrier frequency centered at 38kHz with a ±45 ° half transmission angle, allowing a maximum IR transmission distance of up to 45 meters, making it efficient for long-range IR communication tasks. The TSOP34838 draws only 450 μA supply current ensuring low power consumption while providing up to 5 mA output current for signal processing.

The receiver is designed to work reliably in ambient temperatures ranging from -25°C to 85°C, enabling operation in diverse environmental conditions. Packaging in tape and reel format supports efficient automated mounting in manufacturing processes. The unit complies with JEDEC standards, ensuring high quality and reliability for industrial and consumer electronics projects.

Highly sensitive infrared receiver optimized for remote control applications. Operates at a carrier frequency of 38 kHz for robust IR signal reception. Compact molded package with precise dimensions for easy PCB mounting.

Supports a maximum transmission distance of up to 45 meters for extended range. Low supply current consumption of 450 μA for energy-efficient operation. Wide operating temperature range from -25°C to 85°C for versatile deployment.

Through hole 3-pin mount ensures secure and reliable PCB placement. JEDEC compliant for consistent industrial-grade quality assurance.

Common applications include infrared code learning systems, IR repeaters, infrared light barriers, and proximity sensing devices used in industrial, consumer electronics, and automation fields.
