Vishay 36 kHz IR Receiver ±75° Angle, 30 m Range Surface Mount TSOP Package 2.5 V to 5.5 V Supply, 4-Pin 3 mm x TSOP75236WTR

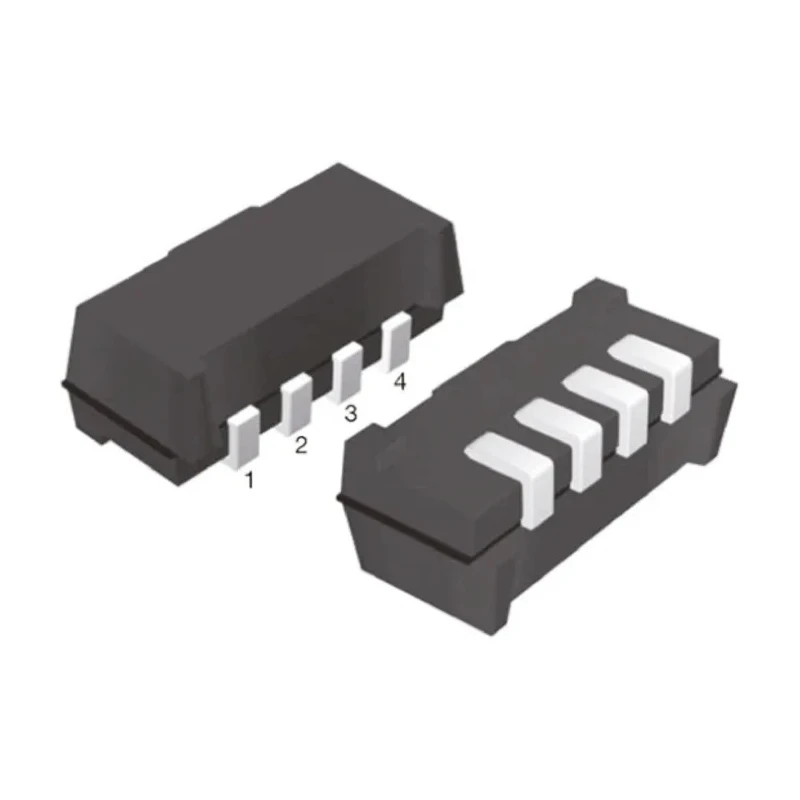

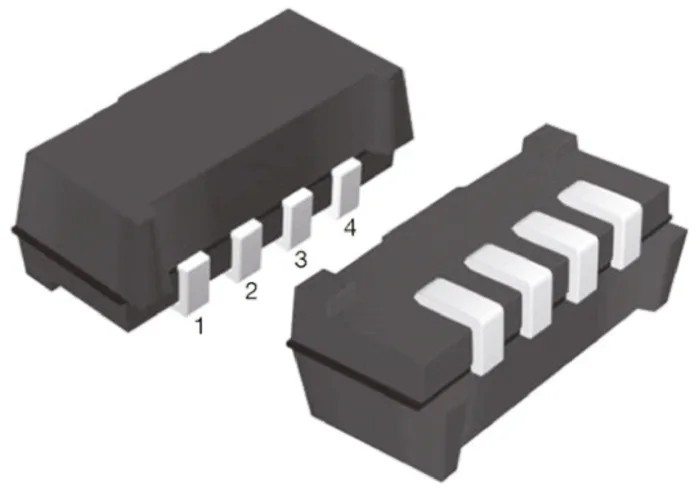

Vishay TSOP75236WTR is a high-sensitivity IR remote control receiver designed to operate at a carrier frequency of 36 kHz, featuring a wide reception angle of ±75 degrees and capable of a maximum transmission distance of 30 meters. Housed in a compact TSOP surface mount package measuring 3 mm width, 6.8 mm length, and 2.35 mm height, this device supports supply voltages ranging from 2.5 V to 5.5 V, making it suitable for a variety of embedded infrared communication applications.

The IR receiver is engineered for use in remote control systems, infrared code learning and repeater applications, infrared light barriers, and infrared proximity sensors. Its low supply current of 3 mA and output current of 5 mA offer efficient operation and reliable signal processing.

This device complies with JEDEC standards for quality and reliability. It is supplied in tape & reel packaging to facilitate automated pick-and-place assembly processes, and its top-view orientation simplifies design integration in densely packed PCBs.

Typical applications include use in consumer electronics, industrial remote controls, and industrial infrared signal detection systems. Its robust operating temperature range from -25°C to 85°C ensures consistent performance in diverse environments.

Operates at a carrier frequency of 36 kHz for IR remote control applications. Maximum transmission distance of 30 meters with high sensitivity. Wide angle of half transmission distance of ±75 degrees. Compact 4-pin surface mount design in a TSOP package with dimensions 3 mm width, 6.8 mm length, and 2.35 mm height.

Operating voltage range from 2.5 V minimum to 5.5 V maximum supply voltage. Low supply current of 3 mA ensuring efficient power consumption. Output current capability of 5 mA for interfacing with control electronics. Top view orientation and tape & reel packaging for automated assembly.

Operating temperature range from -25°C to 85°C suitable for various environments. Compliant with JEDEC standards ensuring quality and reliability. Explore the wide range of IR Receivers available in the Electronics Components category at EnvMart for diverse industrial, laboratory, and manufacturing applications.
