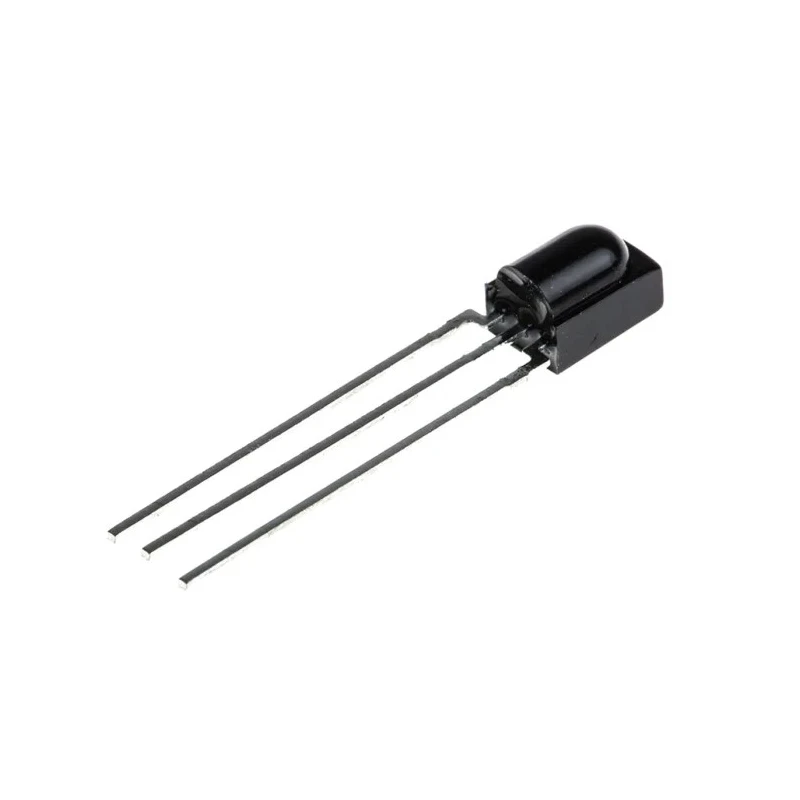

Vishay 38 kHz IR Receiver Through Hole Minicast 5x6.95x5 mm ±45° Angle 25 m Range TSSP58038
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Orientation | Top View |
| Height | 6.95mm |
| Length | 5mm |
| Model | TSSP58038 |
| Width | 5mm |
| Mount Type | Through Hole |
| Output Current | 5mA |
| Maximum transmission distance | 25m |
| Maximum Operating Temperature | 85°C |
| Package Type | Minicast |
| Minimum Operating Temperature | -25°C |
| Number of Pins | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 700μA |
| Carrier Frequency | 38kHz |
| Angle of Half Transmission Distance | ±45° |
Key Features
- Operates at a carrier frequency of 38 kHz for compatible IR remote applications.
- Features a Minicast package with through-hole mounting for easy PCB installation.
- Supplies a maximum output current of 5 mA at a supply voltage range of 2.5 V to 5.5 V.
- Compact size with dimensions 5 mm width, 6.95 mm height, and 5 mm length.
- Designed for operation in temperatures from -25°C to 85°C for robustness in various environments.
- Utilizes three pins with top view orientation to simplify circuit design.
- Consumes a low supply current of 700 μA, enhancing energy efficiency.
- Manufactured in the Philippines to strict quality standards.
Product Description
Vishay TSSP58038 is a high-performance 38 kHz IR Receiver designed for detecting modulated infrared signals with precision and reliability. Its through-hole Minicast 5x6.95x5 mm package provides easy integration into electronic devices and remote control systems.
The IR receiver supports a maximum transmission distance of up to 25 meters and an angular half transmission distance of ±45°, offering a wide reception field ideal for home automation, consumer electronics, industrial control, and communication systems.
Powered within a supply voltage range of 2.5 V to 5.5 V, this device maintains a low supply current of 700 μA and outputs a maximum current of 5 mA, ensuring efficient energy consumption without sacrificing performance.
Operating temperature range from -25°C to 85°C makes it suitable for demanding industrial and commercial applications with varying environmental conditions. The 3-pin top view configuration simplifies connection to printed circuit boards, enabling robust and reliable mounting.
Operates at carrier frequency of 38 kHz for IR signal modulation compatibility. Through-hole mounting in compact Minicast package eases installation. Wide angle of ±45° and 25 m reception range for effective signal capture.
Low supply current of 700 μA boosts energy efficiency. Robust operating temperature range of -25°C to 85°C for harsh environments. Suitable for consumer electronics, remote controls, home automation, and industrial control systems.
Manufactured in the Philippines following rigorous quality standards.
This Vishay IR receiver is an ideal component for engineers and designers seeking reliable IR detection solutions in sectors including industrial automation, HVAC controls, and smart home systems. Explore EnvMart’s comprehensive Electronics Components and IR Receivers category for complementary products and enhanced system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSSP58038 operates at a carrier frequency of 38 kHz, making it suitable for compatible infrared remote applications.
This IR receiver supports a maximum transmission distance of up to 25 meters, allowing for effective signal capture in various applications.
It operates within a supply voltage range of 2.5 V to 5.5 V, ensuring compatibility with a variety of electronic devices.
The TSSP58038 can supply a maximum output current of 5 mA, which is suitable for driving various components in electronic circuits.
This model has dimensions of 5 mm in width, 6.95 mm in height, and 5 mm in length, making it compact for easy integration into devices.
The TSSP58038 operates effectively in temperatures ranging from -25°C to 85°C, suitable for various environmental conditions.
This model features three pins with a top view orientation, simplifying the design and connection to printed circuit boards.
The TSSP58038 utilizes through-hole mounting, which facilitates easy installation on PCBs.
It consumes a low supply current of 700 μA, enhancing energy efficiency during operation.
The TSSP58038 has an angular half transmission distance of ±45°, providing a wide reception field.
This IR receiver is manufactured in the Philippines, adhering to strict quality standards.
It is designed for use in home automation, consumer electronics, industrial control, and communication systems, making it versatile for various projects.
