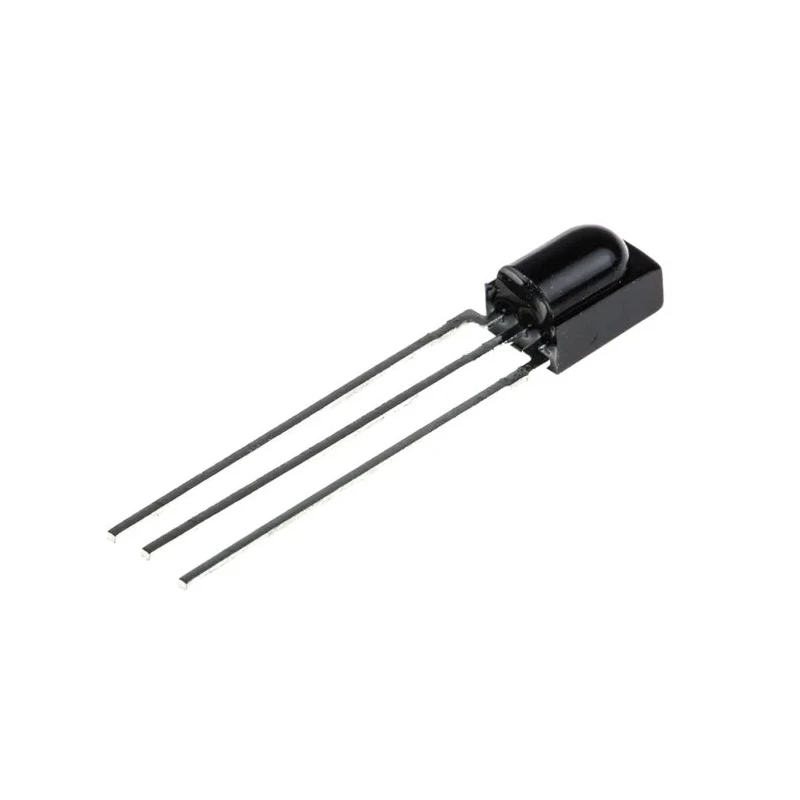

Vishay 38 kHz IR Receiver ±45° Angle, 25 m Range, Through Hole 3-Pin Minicast Package TSSP58038

Vishay TSSP58038 is a highly sensitive 38 kHz infrared (IR) receiver designed to detect modulated IR signals with a half transmission distance angle of ±45°, achieving a maximum transmission distance of 25 meters. This component is packaged in a compact through-hole 3-pin minicast form factor, measuring 5 mm in length, 6.95 mm in height, and 5 mm in width, making it suitable for various electronic component assemblies requiring precise IR signal reception.

Operating at a supply voltage between 2.5 volts and 5.5 volts with a low supply current consumption of 700 μA, the TSSP58038 ensures energy-efficient performance. Its top-view orientation facilitates optimal IR line-of-sight reception, and the device supports an output current of 5 mA, enabling effective interfacing with downstream electronics. The IR receiver is designed to operate within a wide temperature range from -25°C to 85°C, making it suitable for diverse industrial, commercial, and consumer electronics applications.

The robust through-hole mounting style of this 3-pin package provides reliable mechanical stability on printed circuit boards, ideal for applications in remote controls, IR communication links, and IR-based data transmission systems. The minicast package ensures ease of handling during manufacturing and assembly processes. The TSSP58038 is manufactured in the Philippines under strict quality controls, representing reliable component quality and consistency.

Operates on a carrier frequency of 38 kHz for IR signal detection. Allows for a ±45° angle of half transmission distance, providing reasonable directional reception. Designed with a 3-pin through-hole Minicast package for ease of PCB integration.

Supply voltage range of 2.5 to 5.5 volts suits various power supply designs. Compact dimensions of 5 mm length, 6.95 mm height, and 5 mm width. Wide operating temperature range from -25°C to 85°C ensures reliable use in harsh environments.

Low supply current of 700 μA allows for power-efficient device design. Output current capability of up to 5 mA supports stable signal output to subsequent circuits. Top view orientation supports typical IR remote control system layouts.

This Vishay IR receiver is ideal for incorporation into electronic systems requiring precise infrared reception such as consumer electronics, home automation, industrial controls, and data communication systems. By choosing this component, designers can ensure dependable IR data reception across a moderate distance with suitable angular coverage.
