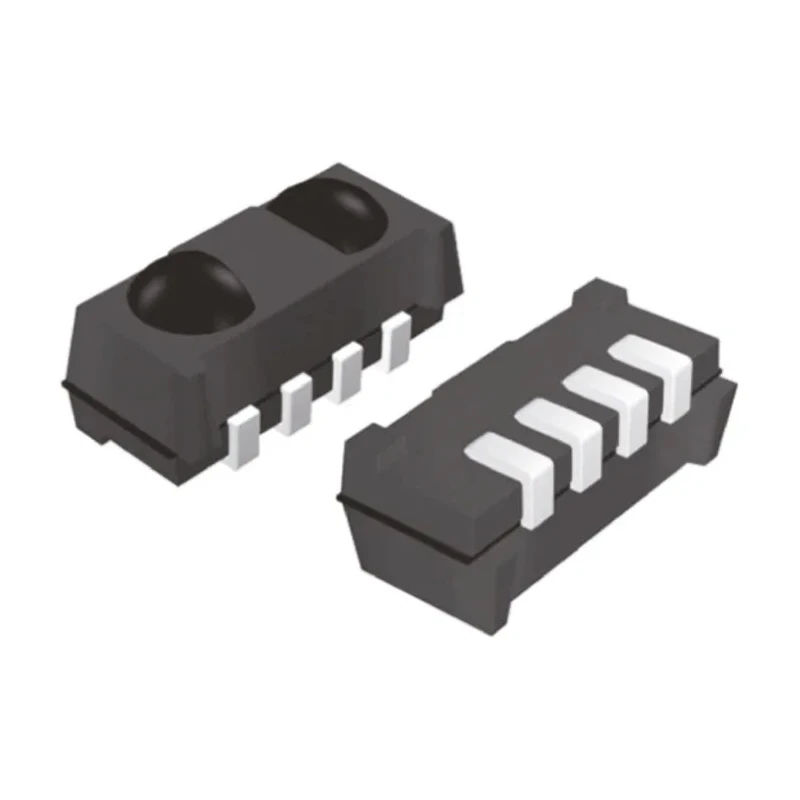

Vishay 38 kHz IR Receiver, ±50° Angle, 45 m Transmission Range, 2.5 V to 5.5 V Supply Voltage, Surface Mount TSOP75338TT

Free Delivery in India | Lowest Global Shipping Charges

Vishay 38 kHz IR Receiver, ±50° Angle, 45 m Transmission Range, 2.5 V to 5.5 V Supply Voltage, Surface Mount TSOP75338TT

Name: Vishay 38 kHz IR Receiver, ±50° Angle, 45 m Transmission Range, 2.5 V to 5.5 V Supply Voltage, Surface Mount TSOP75338TT
Brand: Vishay
SKU: 367148
Price: 152.85 INR
Availability: InStock



Category IR Receivers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Orientation	Top View
Height	3.2mm
Length	6.8mm
Model	TSOP75338TT
Packaging	Tape & Reel
Width	3mm
Mount Type	Surface
Output Current	5mA
Maximum transmission distance	45m
Maximum Operating Temperature	85°C
Package Type	TSOP
Minimum Operating Temperature	-25°C
Standards/Approvals	JEDEC
Number of Pins	4
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Supply Current	3mA
Carrier Frequency	38kHz
Angle of Half Transmission Distance	±50°

Key Features

Highly sensitive infrared receiver with long transmission range of 45 meters.
Operates on a wide supply voltage from 2.5 V to 5.5 V.
Compact TSOP surface mount package with dimensions 6.8 mm length, 3.2 mm height, and 3 mm width.
Supports top view orientation with 4-pin configuration for easy PCB mounting.
Wide operating temperature range from -25°C to 85°C ensuring durability in harsh conditions.
Low supply current of 3 mA and output current of 5 mA for efficient power consumption.
JEDEC standard compliant design ensuring quality and reliability.
Ideal for remote control, infrared communication, and proximity sensor applications.

Product Description

Vishay TSOP75338TT is a high-performance IR receiver designed for remote control and infrared communication systems. This surface mount device operates at a carrier frequency of 38 kHz, featuring a wide angle of half transmission distance of ±50° and a maximum transmission range of 45 meters. It is suitable for applications requiring reliable infrared signal detection and decoding.

The TSOP75338TT is housed in a compact TSOP package measuring 6.8 mm in length, 3.2 mm in height, and 3 mm in width, with a 4-pin top view layout that allows for simple surface mounting on PCBs. It operates within a supply voltage range of 2.5 V to 5.5 V, drawing a low supply current of 3 mA and capable of supplying an output current of up to 5 mA, making it energy efficient for battery-operated devices.

With an operating temperature range extending from -25°C to 85°C, this IR receiver is suitable for rigorous environmental conditions commonly encountered in industrial and consumer electronics. The component conforms to JEDEC standards, ensuring high quality and dependable performance.

Typical applications include remote controls, infrared code learning and repeaters, infrared light barriers, and infrared proximity sensing. This device enables robust infrared communication at distances up to 45 meters, with a broad reception angle ensuring flexibility in device orientation.

Highly sensitive infrared receiver with long transmission range of 45 meters. Operates on a wide supply voltage from 2.5 V to 5.5 V. Compact TSOP surface mount package measuring 6.8 mm length, 3.2 mm height, and 3 mm width.

4-pin top view configuration for easy surface mounting. Wide operating temperature range from -25°C to 85°C. Low supply current of 3 mA and output current of 5 mA for efficient operation. JEDEC standard compliant for quality assurance.

Suitable for remote control, infrared communication, and proximity sensors.

This Vishay IR receiver is ideal for industrial, commercial, and consumer electronics applications requiring reliable infrared signal reception. Visit EnvMart for more IR Receivers and Vishay products.
