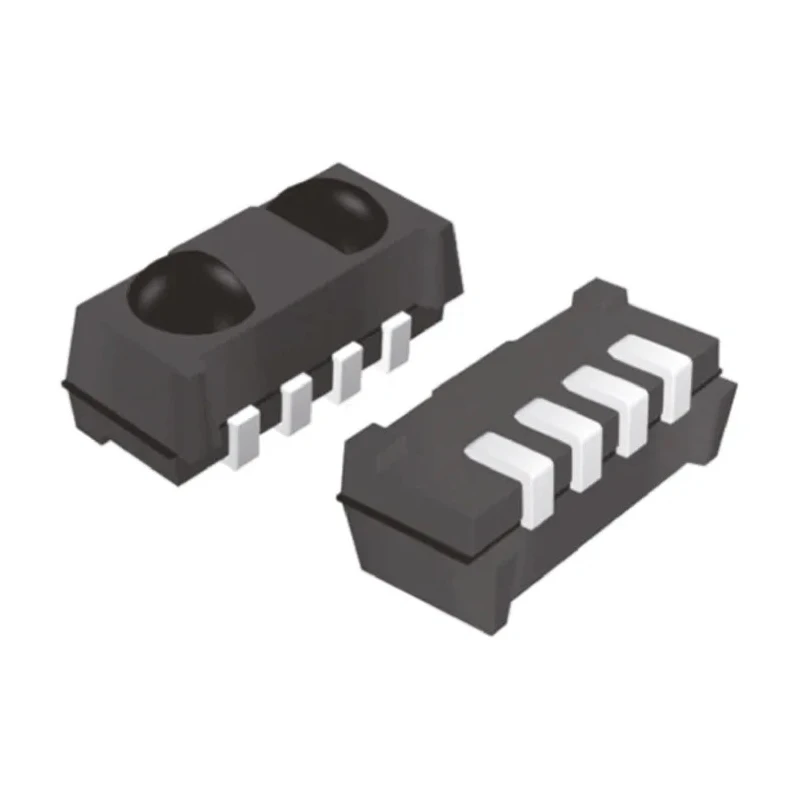

Vishay 38 kHz IR Receiver 45 m Range ±50° Angle 2.5 V to 5.5 V Supply TSOP 3.2 mm x 6.8 mm Surface Mount 4-Pin TSOP75338TT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Orientation | Top View |
| Height | 3.2mm |
| Length | 6.8mm |
| Model | TSOP75338TT |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Output Current | 5mA |
| Maximum transmission distance | 45m |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | JEDEC |
| Number of Pins | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Carrier Frequency | 38kHz |
| Angle of Half Transmission Distance | ±50° |
Key Features
- Operates at a carrier frequency of 38 kHz for optimal IR signal reception.
- Provides a wide ±50° angle of half transmission distance for versatile placement.
- Supports a supply voltage range from 2.5 V to 5.5 V ensuring flexibility in circuit designs.
- Features a compact surface mount TSOP package measuring 3.2 mm height, 6.8 mm length, and 3 mm width.
- Equipped with a 4-pin configuration for easy PCB integration.
- Offers a low supply current of 3 mA and output current of 5 mA for energy-efficient operation.
- Meets JEDEC standards, suitable for rigorous industrial and commercial uses.
- Designed for operating temperatures from -25°C to 85°C, accommodating diverse environments.
Product Description
Vishay TSOP75338TT 38 kHz IR Receiver is a high-sensitivity photodetector designed for remote control and infrared communication systems operating with a carrier frequency of 38 kHz. It provides an effective transmission distance up to 45 meters with a wide reception angle of ±50°. The device supports supply voltages between 2.5 V and 5.5 V and features low power consumption with a typical supply current of 3 mA and output current capability of 5 mA.
Encapsulated in a compact surface mount TSOP package, measuring 3.2 mm in height, 6.8 mm in length, and 3 mm in width with a 4-pin top view orientation, TSOP75338TT ensures reliable mounting on modern PCBs. Compliant with JEDEC standards, it operates efficiently in temperature ranges from -25°C to 85°C, making it suitable for demanding industrial, consumer electronics, automotive, HVAC, manufacturing, and laboratory applications.
This IR receiver is broadly used in infrared code learning systems, infrared repeaters, light barriers, and proximity sensors where high sensitivity and accurate signal reception are critical.
Operates at a carrier frequency of 38 kHz providing precise IR signal detection. Maximum transmission distance of 45 meters with ±50° wide reception angle for flexible deployment. Low power consumption with 3 mA supply current and 5 mA output current for efficient operation.
Compact surface mount TSOP package (3.2 mm height, 6.8 mm length, 3 mm width) designed for easy integration. Operating temperature range from -25°C to 85°C supports various environmental conditions. 4-pin top view mounting ensures compatibility with common PCB layouts.
Meets JEDEC standards, ensuring reliability and industry compliance. Applications include remote controls, infrared communication systems, industrial automation, and security sensors.
Choose Vishay TSOP75338TT for dependable infrared reception in industrial, commercial, and consumer electronics environments. Explore more IR Receivers and optoelectronic components with EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission distance of the Vishay TSOP75338TT IR receiver is 45 meters.
This model operates efficiently within a temperature range of -25°C to 85°C.
It supports a supply voltage range from 2.5 V to 5.5 V, providing flexibility in circuit designs.
The carrier frequency of the TSOP75338TT is 38 kHz, optimized for infrared signal reception.
The TSOP75338TT features a 4-pin configuration for easy integration into PCBs.
This unit has dimensions of 3.2 mm in height, 6.8 mm in length, and 3 mm in width.
The output current capability of the TSOP75338TT is 5 mA.
The supply current for this model is 3 mA, contributing to its energy-efficient operation.
It provides a wide reception angle of ±50°, allowing for versatile placement.
It is encapsulated in a compact surface mount TSOP package, suitable for modern PCB layouts.
Yes, it meets JEDEC standards, ensuring reliability for industrial and commercial applications.
This IR receiver is suitable for applications such as remote controls, infrared communication systems, and security sensors.
