Vishay 38 kHz IR Receiver ±50° Angle, 45m Range, 2.5 V to 5.5 V Supply, Surface Mount TSOP Package TSOP75438WTT

Vishay TSOP75438WTT is a high-sensitivity infrared (IR) receiver module designed to operate at a carrier frequency of 38 kHz. This IR receiver supports remote control and infrared communication applications, including code learning, repeaters, light barriers, and proximity sensors. It has a wide angle of half transmission distance of ±50°, achieving a maximum transmission distance of up to 45 meters.

The component operates within a supply voltage range of 2.5 V to 5.5 V, consuming a low supply current of 450 μA, making it suitable for power-sensitive devices. It delivers an output current of up to 5 mA, facilitating effective signal detection and processing.

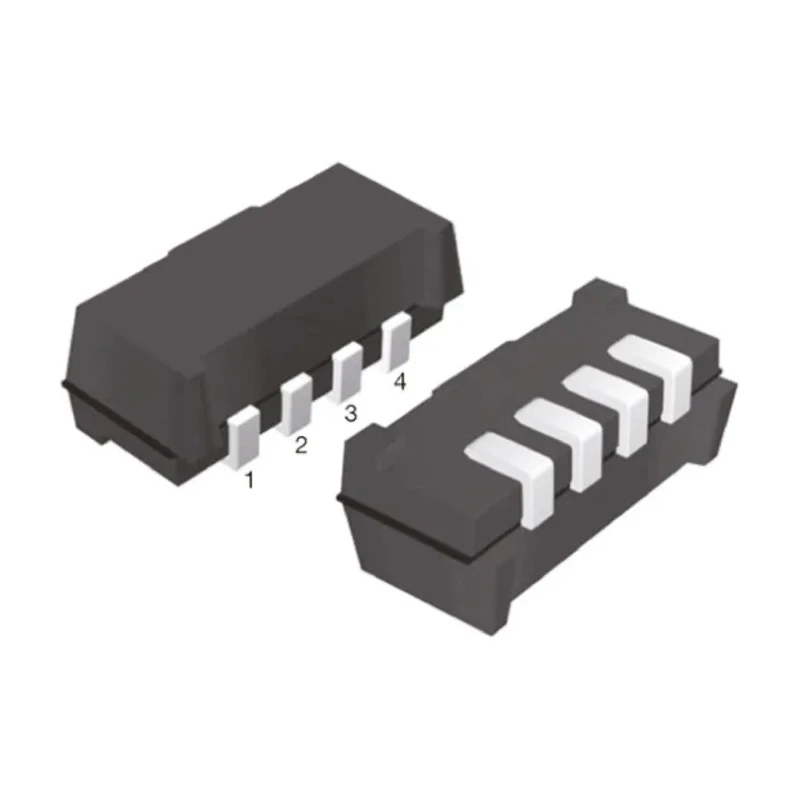

Encased in a surface mount TSOP package measuring 3.2 mm in height, 6.8 mm in length, and 6.6 mm in width, the device supports compact PCB designs. The 4-pin configuration with top view orientation simplifies integration in various electronic systems.

This IR receiver complies with the EIA JEDEC JSTD-020 level 4 standard, ensuring reliable performance under the specified environmental conditions. It functions effectively in temperatures ranging from -25°C to 85°C.

Typical industrial and commercial uses include remote controls, industrial automation, consumer electronics, and security system applications. Its sensitivity and long-range characteristics make it an ideal choice for infrared sensing in automated systems.

Operates at 38 kHz carrier frequency with ±50° reception angle. Maximum transmission distance of 45 meters. Low supply voltage and current requirements (2.5 V to 5.5 V, 450 μA). Surface mount package allows space-efficient board designs.

Reliable operation over wide temperature range (-25°C to 85°C). Suitable for infrared remote controls, proximity detection, and industrial automation. Explore more Vishay electronic components and IR Receivers at EnvMart for advanced industrial and consumer solutions.
