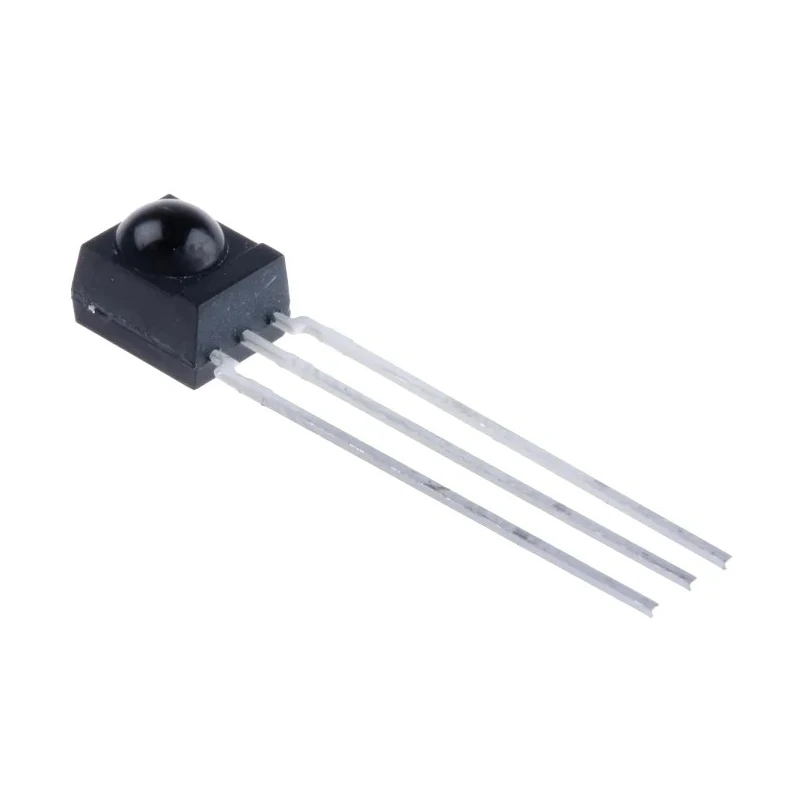

Vishay 36 kHz IR Receiver ±45 °, 45 m Range, 2.5 V to 5.5 V Supply, Through Hole Mold Package TSOP34836

Free Delivery in India | Lowest Global Shipping Charges

Vishay 36 kHz IR Receiver ±45 °, 45 m Range, 2.5 V to 5.5 V Supply, Through Hole Mold Package TSOP34836

Name: Vishay 36 kHz IR Receiver ±45 °, 45 m Range, 2.5 V to 5.5 V Supply, Through Hole Mold Package TSOP34836
Brand: Vishay
SKU: 214507
Price: 0.85 USD
Availability: InStock



Category IR Receivers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Orientation	Top View
Height	6.95mm
Length	6mm
Model	TSOP34836
Packaging	Tape & Reel
Width	6mm
Mount Type	Through Hole
Output Current	5mA
Maximum transmission distance	45m
Maximum Operating Temperature	85°C
Package Type	Mold
Minimum Operating Temperature	-25°C
Standards/Approvals	RoHS, JEDEC JS709A
Number of Pins	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Supply Current	450μA
Carrier Frequency	36kHz
Angle of Half Transmission Distance	±45 °

Key Features

Operates at a carrier frequency of 36 kHz.
Supports a maximum infrared transmission distance of 45 meters.
Features a ±45 ° half transmission angle for wide signal reception.
Operates with supply voltage between 2.5 V and 5.5 V.
Compact through hole molded package with dimensions 6.95 mm × 6 mm × 6 mm.
Consumes low supply current of 450 μA and provides 5 mA output current.
Operates reliably from -25°C to 85°C ambient temperature.
Complies with RoHS and JEDEC JS709A standards for quality and safety.

Product Description

Vishay TSOP34836 IR Receiver is a precise and highly sensitive infrared sensor designed for remote control and infrared communication applications. It supports a carrier frequency of 36 kHz with a half transmission angle of ±45°. This device features a compact through hole molded package, measuring 6.95 mm in height, 6 mm in length, and 6 mm in width, making it suitable for various electronic assemblies.

Operating within a supply voltage range of 2.5 V to 5.5 V, the TSOP34836 maintains low power consumption with a supply current of only 450 μA while providing an output current of 5 mA. It is engineered to work reliably over a wide temperature range from -25°C to 85°C, ensuring durability in diverse industrial and commercial environments.

The device complies with RoHS and JEDEC JS709A standards, confirming its environmentally friendly design and quality performance. Its sensitivity covers the infrared wavelength band from approximately 840 nm to 960 nm, making it ideal for infrared code learning, infrared repeaters, light barriers, and proximity sensor applications.

Carrier frequency: 36 kHz. Maximum transmission distance: 45 meters. Operating temperature range: -25°C to 85°C. Package type: Mold, through hole mounting. Operating voltage: 2.5 V to 5.5 V. Output current: 5 mA. Supply current: 450 μA.

Half transmission angle: ±45°. Compact dimensions: 6.95 mm height × 6 mm length × 6 mm width. RoHS and JEDEC JS709A compliant.

This IR receiver is suitable for industrial and electronic assembly applications requiring accurate infrared signal reception, including manufacturing equipment, remote control devices, and sensor systems. Its through hole design facilitates stable connectivity in various circuit boards and assemblies.
