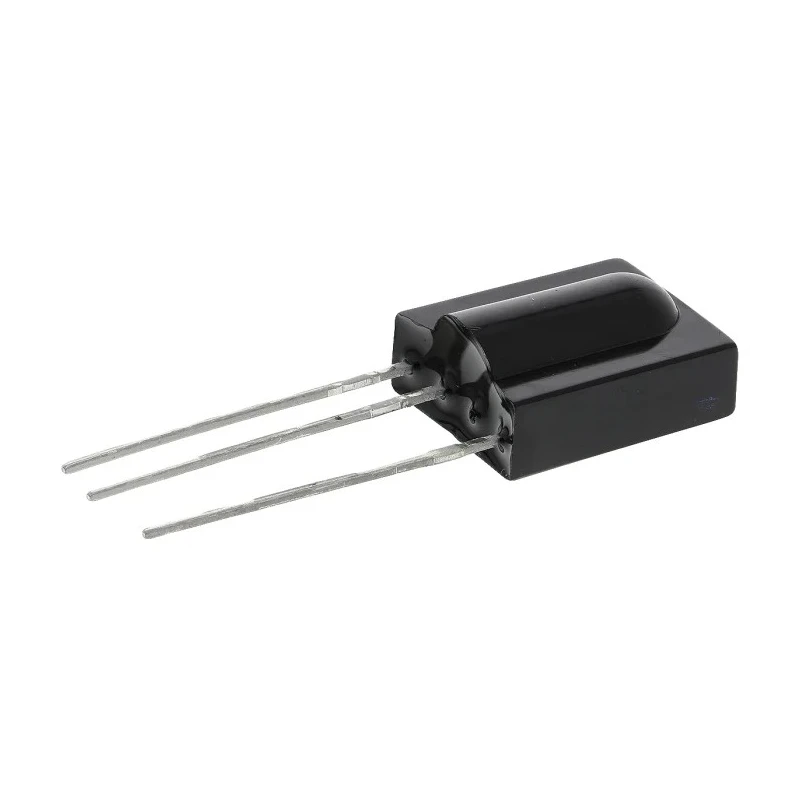

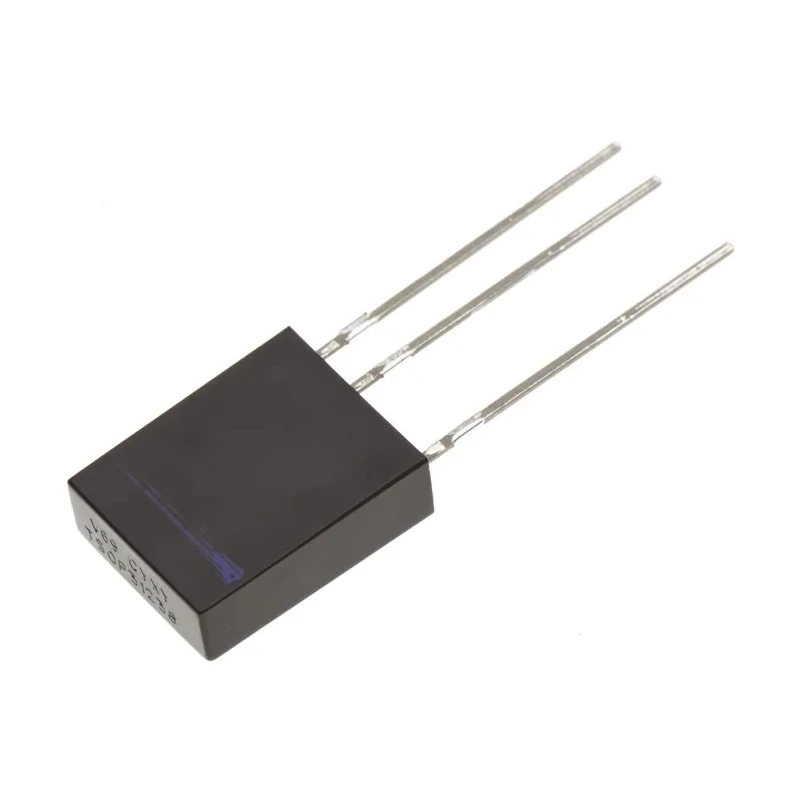

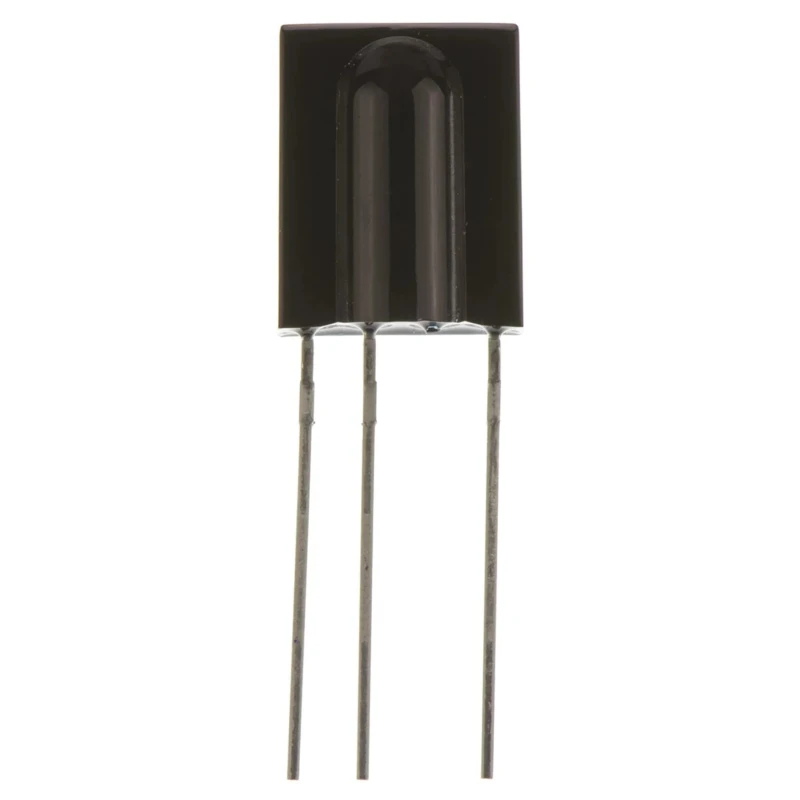

Vishay 38 kHz IR Receiver Module Through Hole 12.5 mm TSOP 3-Pin 2.5 V to 5.5 V Supply TSOP31238
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Orientation | Top View |
| Height | 12.5mm |
| Length | 10mm |
| Model | TSOP31238 |
| Packaging | Tape & Reel |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Output Current | 5mA |
| Maximum transmission distance | 45m |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 2.5 V to 5.5 V |
| Standards/Approvals | JEDEC |
| Number of Pins | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 900μA |
| Carrier Frequency | 38kHz |
| Angle of Half Transmission Distance | ±45° |
| Photomodule w/38kHz oscillator,TSOP1738Brand | Vishay |
Key Features
- Built-in pin diode and preamplifier in a TSOP epoxy package.
- Operates over a temperature range of -25°C to 85°C.
- 3-pin through-hole mount configuration for easy integration.
- Low supply current of 900 μA enhances power efficiency.
- Includes internal IR filter to remove ambient interference.
- High output current capability of 5 mA for direct microprocessor interfacing.
- Compliant with JEDEC standards for reliability.
- Designed for infrared remote control systems and compatible with various IR protocols.
Product Description
Vishay TSOP31238 is a 38 kHz infrared (IR) receiver module designed primarily for remote control systems. Featuring a built-in PIN diode and preamplifier, this device is housed within a robust TSOP epoxy package that includes an infrared filter, ensuring excellent noise rejection and signal integrity.
The module operates with a supply voltage range from 2.5 V to 5.5 V and draws a low supply current of approximately 900 μA, making it highly efficient for battery-powered applications. Its 3-pin through-hole mount and compact package size of 12.5 mm height, 10 mm length, and 5.8 mm width facilitates straightforward integration into electronic designs.
Engineered to perform over a wide operating temperature range from -25°C to 85°C, the TSOP31238 maintains reliable reception within ±45° half-angle and can operate effectively up to a 45-meter transmission distance. The device produces an output current of 5 mA suitable for direct connection to microcontroller inputs for signal decoding.
This receiver adheres to JEDEC quality standards and offers an internal PCM filter to minimize the influence of ambient light. The TSOP31238 series, unlike the newer TSOP314 series, is compatible with older AGC2 technology, making it ideal for legacy product support.
Built-in photodiode and preamplifier ensure high sensitivity and low noise. Wide temperature operating range supports industrial and commercial applications. Compact through-hole package simplifies PCB layout and assembly.
Low power consumption suits battery-operated devices. Internal IR filter enhances immunity against ambient light interference. High output current enables direct microprocessor interfacing without additional stages. Compliant with JEDEC standards for enhanced reliability and quality.
Designed primarily for remote control of consumer electronics and automation systems.
Used extensively in industrial, commercial, and consumer infrared remote control applications, this component delivers consistent and reliable IR signal reception. Its compatibility with a broad voltage range and compact design make it versatile for many electronic control systems including audio-visual equipment, HVAC controls, and home automation interfaces.
Explore more Vishay electronic components and IR Receivers on EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSOP31238 operates with a supply voltage range of 2.5 V to 5.5 V.
This model can operate effectively up to a maximum transmission distance of 45 meters.
It has a high output current capability of 5 mA, suitable for direct microprocessor interfacing.
The TSOP31238 operates over a temperature range from -25°C to 85°C.
This model features a 3-pin through-hole mount configuration for easy integration.
It draws a low supply current of approximately 900 μA, enhancing power efficiency.
The dimensions of this unit are 12.5 mm in height, 10 mm in length, and 5.8 mm in width.
This model is compliant with JEDEC standards for reliability.
The carrier frequency for this infrared receiver module is 38 kHz.
It is primarily designed for infrared remote control systems and is compatible with various IR protocols.
The internal IR filter enhances immunity against ambient light interference, ensuring better signal integrity.
The TSOP31238 maintains reliable reception within a ±45° half-angle.
