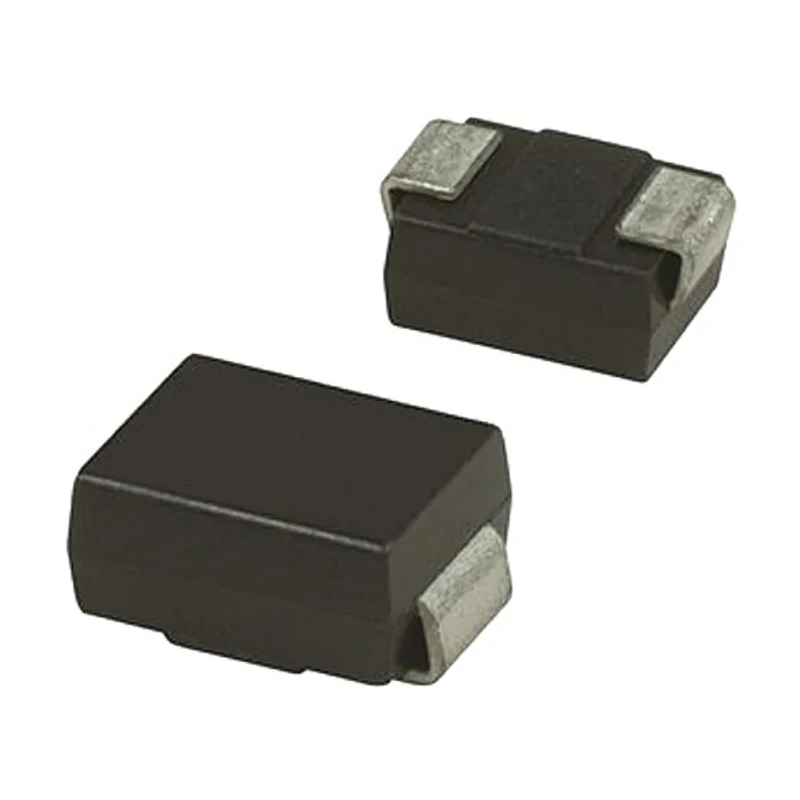

onsemi 600 V 2 A Switching Diode Surface Mount DO-214AA Package MURS260T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MURS260T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.45V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Supports maximum continuous forward current of 2 amperes.
- Peak reverse repetitive voltage rating of 600 volts for reliable performance.
- Fast peak reverse recovery time of 75 nanoseconds to minimize switching losses.
- Compact dimensions of 4.32 mm length, 3.56 mm width, and 2.13 mm height enable space-saving PCB designs.
- Automotive qualified to AEC-Q101 standard ensuring robustness in harsh environments.
- Wide operating temperature range from -65°C up to 175°C for versatile applications.
- Rectifier configured as a single diode with 2 pins in a DO-214AA package for surface mounting.
- Low maximum forward voltage drop of 1.45 V to increase efficiency in power circuits.
Product Description
onsemi MURS260T3G is a high-performance switching diode rated for 600 volts and 2 amperes continuous forward current. Packaged in a compact DO-214AA surface mount device, this diode is ideal for efficient power rectification and switching in a broad range of electronic, automotive, and industrial applications.
The device features a single diode configuration with 2 pins, allowing easy integration on printed circuit boards. It delivers a low forward voltage drop of 1.45 volts and a very fast peak reverse recovery time of 75 nanoseconds, which minimizes switching losses and improves overall system efficiency.
With robust thermal characteristics, the MURS260T3G operates reliably over a wide temperature range from -65°C to 175°C. It is qualified to the stringent AEC-Q101 automotive standard, ensuring dependable performance even in demanding environments such as automotive electronics and industrial equipment.
The diode’s compact physical size (4.32 mm length, 3.56 mm width, and 2.13 mm height) supports dense PCB layouts. Its peak non-repetitive forward surge current rating of 35 A and very low peak reverse leakage current of 5 microamps enhance circuit protection and reliability.
This diode is suitable for use in power supply rectification, freewheeling diode applications, and high-frequency switching circuits in industrial, automotive, and consumer electronics sectors.
Supports maximum continuous forward current of 2 amperes. Peak reverse repetitive voltage rating of 600 volts for reliable performance. Fast peak reverse recovery time of 75 nanoseconds to minimize switching losses. Compact dimensions for space-efficient PCB mounting.
Automotive AEC-Q101 qualification. Wide temperature range from -65°C to 175°C. Single diode configuration with 2 pins in DO-214AA package. Low maximum forward voltage drop of 1.45 V. Peak non-repetitive forward surge current up to 35 A.
Very low peak reverse current leakage. Explore the onsemi range of discrete semiconductors and Schottky diodes on EnvMart for industrial, automotive, and electronics manufacturing applications.
