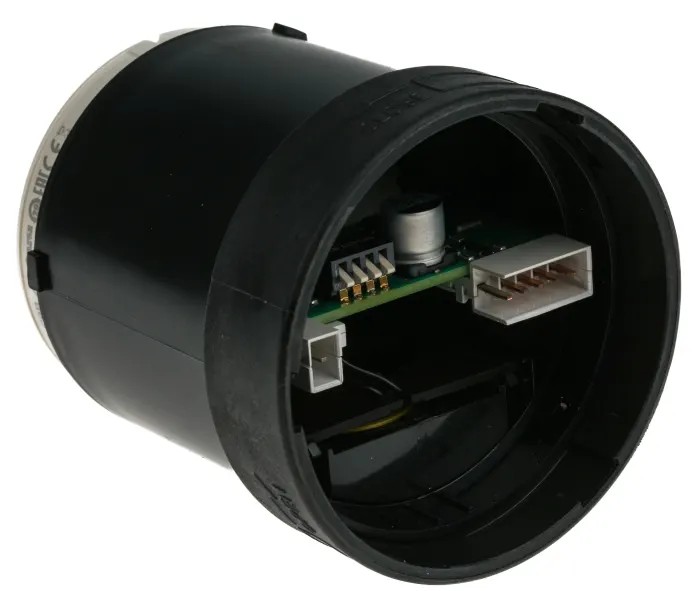

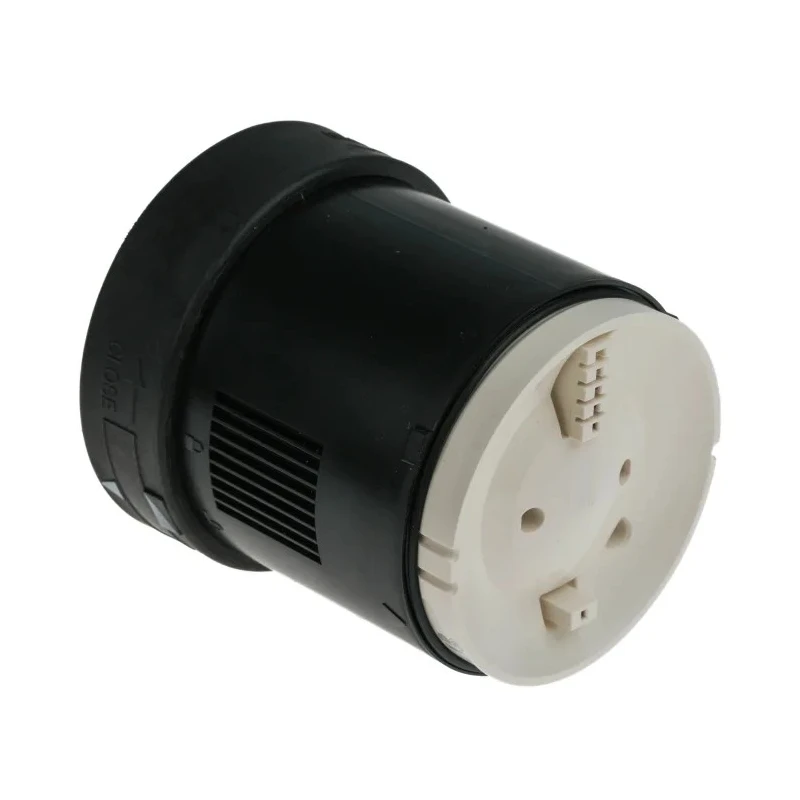

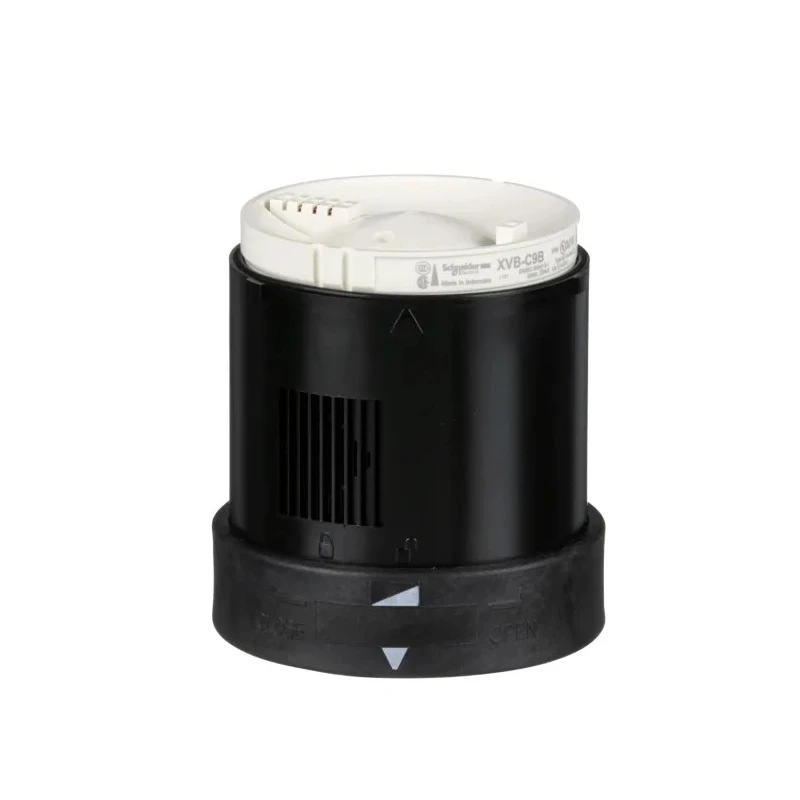

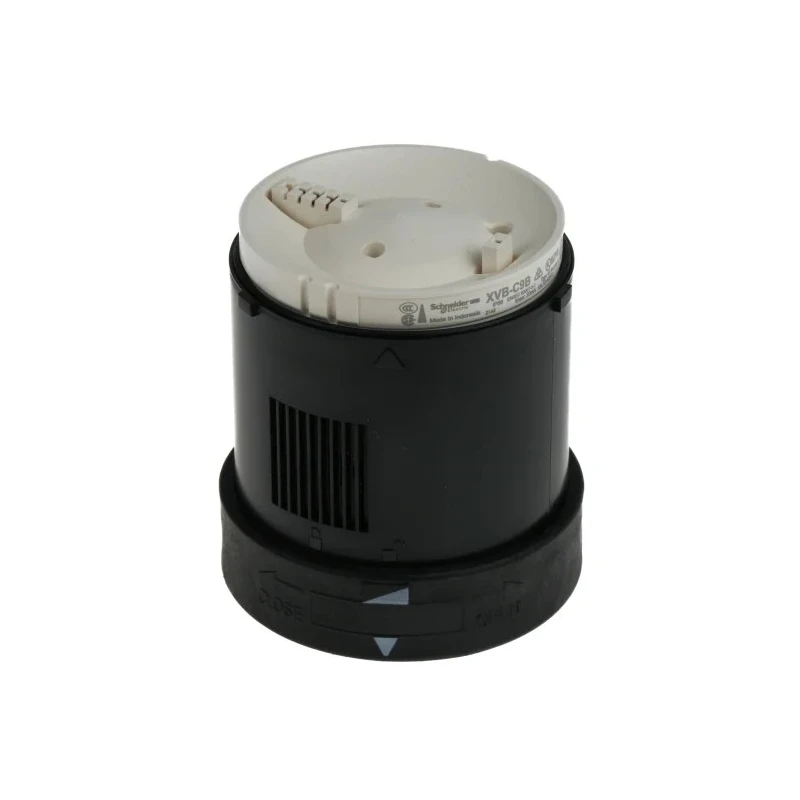

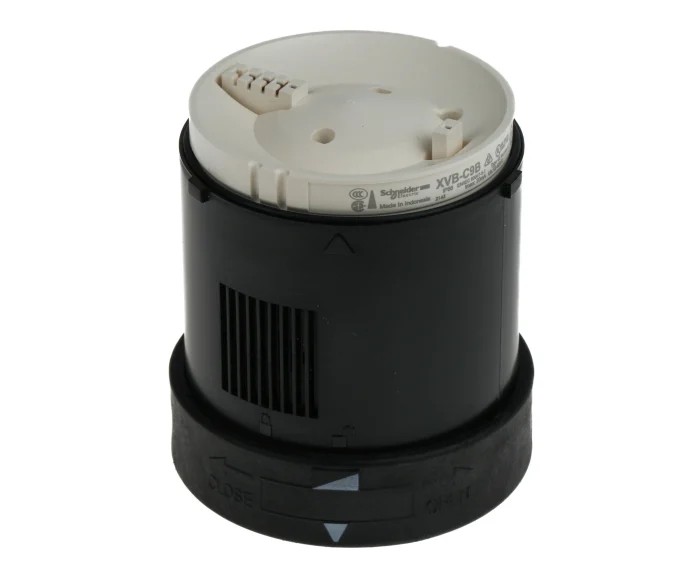

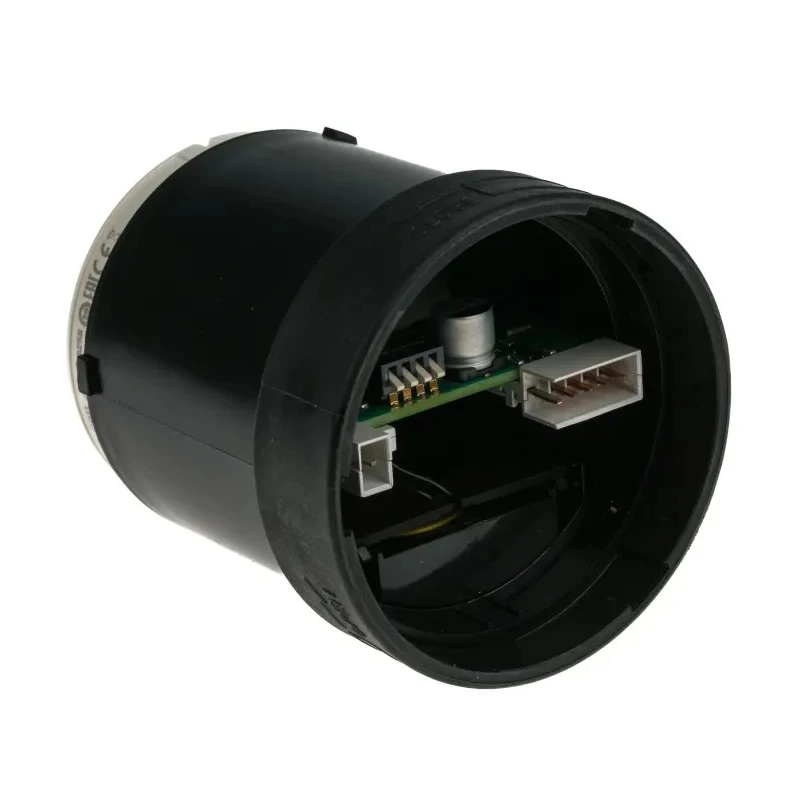

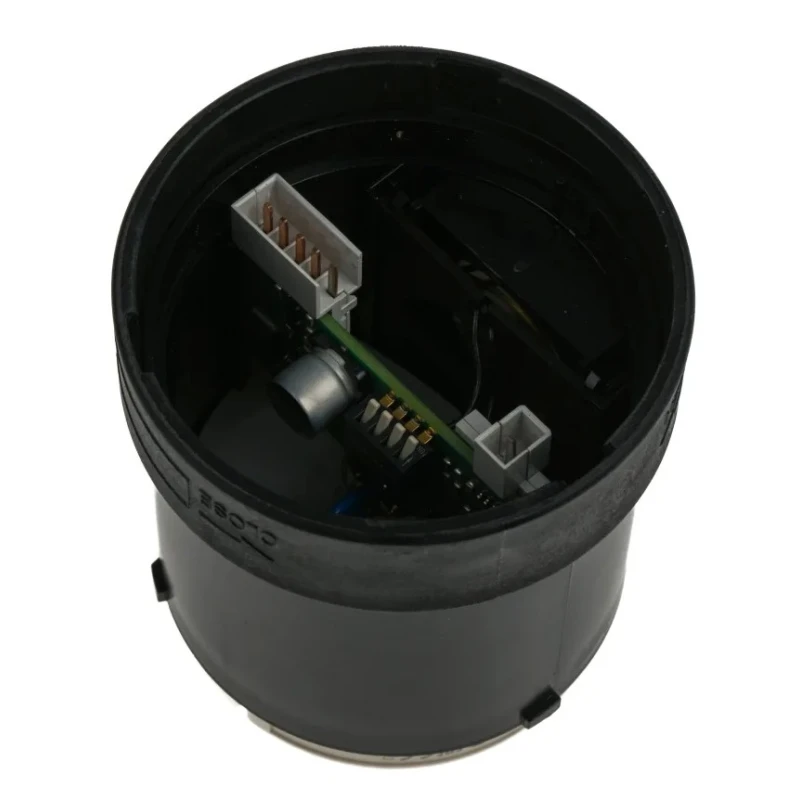

Schneider Electric Harmony XVB Series Buzzer Unit 24V ac/dc DC IP65

Schneider Electric XVBC9B Harmony XVB Series Buzzer Unit 24V ac/dc DC IP65 is engineered for industrial signalling applications requiring audible alerts in noisy or harsh environments. It emits a sound output between 70 to 90dB, comparable to household appliances, making it easily noticeable on assembly lines, automated processing, and safety signalling setups.

The buzzer is designed for surface mounting with secure screw clamp terminals for straightforward installation without the need for specialized tools. Its compact dimensions of 63mm height and 70mm base diameter allow integration into confined control panels or machinery spaces.

This unit supports a maximum supply voltage of 24V ac/dc and operates efficiently with current consumption below 15mA. The wide operating temperature range from -25°C to 70°C ensures reliable performance in temperature-variable industrial settings. The IP65 enclosure rating certifies protection against dust ingress and water jets, enhancing durability in tough conditions.

Constructed with a black housing for increased ruggedness, the buzzer weighs approximately 0.17kg, minimizing mechanical load on mounts. Typical applications include assembly line signalling, automated task notifications, and safety alarms where audio signals are essential.

Energy-efficient current consumption under 15mA. Clear audible outputs with 70 to 90dB sound level. Compatible with 24V ac/dc power systems. Compact 63mm height and 70mm base diameter. Surface mount with screw clamp terminals.

IP65 rating ensures protection in harsh environments. Operates from -25°C to 70°C ambient conditions. Lightweight design around 0.17kg.

This buzzer unit is ideal for industrial automation, control panels, and signalling in manufacturing, assembly, and safety monitoring environments. Its robust design combined with effective audio signalling capabilities enhances operational awareness and safety compliance.
