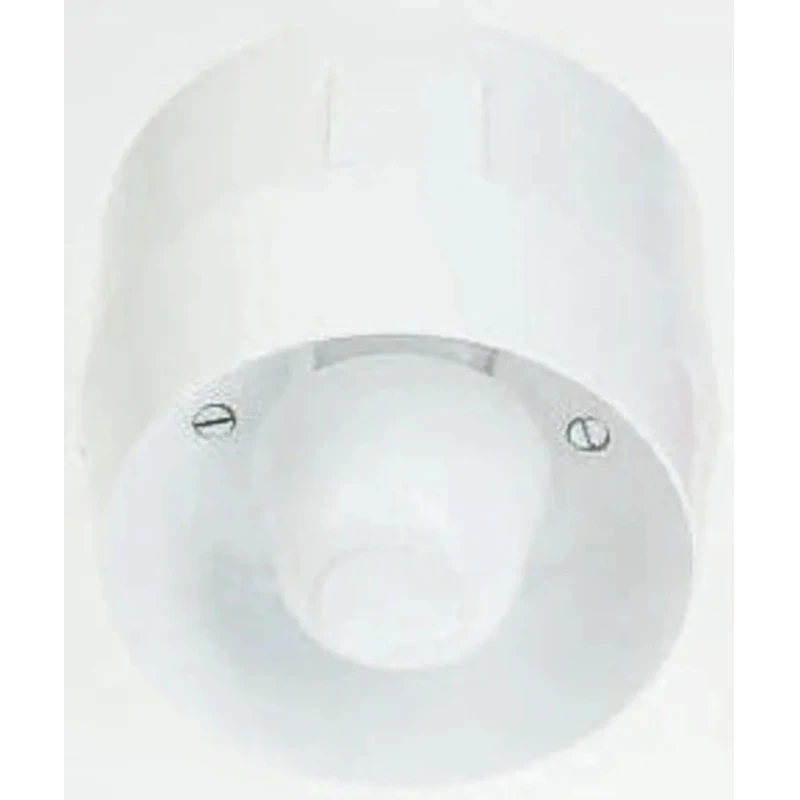

Cranford Controls VPR-MT Series Electronic Sounder Surface Mount IP65, 230V AC, 32-Tone, 107 dB at 1m VPRMT32W230

Free Delivery in India | Lowest Global Shipping Charges

Cranford Controls VPR-MT Series Electronic Sounder Surface Mount IP65, 230V AC, 32-Tone, 107 dB at 1m VPRMT32W230

Name: Cranford Controls VPR-MT Series Electronic Sounder Surface Mount IP65, 230V AC, 32-Tone, 107 dB at 1m VPRMT32W230
Brand: Cranford Controls
SKU: 149896
Price: 154.19 USD
Availability: InStock



Category Automation & Control Gear Brand Cranford Controls Condition New

Specifications

Country of Origin	United Kingdom
Diameter	105mm
Brand	Cranford Controls
Model	VPRMT32W230
IP Rating	IP65
Mount Type	Surface
Housing Material	ABS
Series	VPR-MT
Maximum Operating Temperature	70°C
Current Type	AC
Current consumption	12mA
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Maximum Supply Voltage	230V ac
Housing Colour	White
Sound Level at 1m	107dB
Maximum Sound Level	110dB
Number of Tones	32
Klaxon Sonos Series Sounder Beacon Surface, IP65 102 dB 60V dc, DC, 32-ToneBrand	Klaxon

Key Features

Operates on 230V AC power supply.
Features a white ABS housing suitable for harsh environments.
Provides sound levels of 107 dB at 1 meter distance.
32 tones include warble, sweep, pip, and continuous signals.
Rotary volume control allows sound level adjustment up to 110 dB.
Built-in 2 x M20 knockouts facilitate easy wiring installation.
Operates reliably between -20°C and 70°C operating temperature.
Designed for surface mounting with a diameter of 105 mm.

Product Description

Cranford Controls VPRMT32W230 Electronic Sounder Surface Mount is an AC-powered 32-tone horn sounder engineered for industrial automation signalling applications. The device features IP65 rated white ABS housing that ensures durability and dust and water resistance, suitable for demanding environments in manufacturing, HVAC, water treatment, and commercial sectors.

Operating at 230V AC with a current consumption of 12 mA, the sounder produces a sound pressure level of 107 dB at 1 meter, with a maximum sound output of 110 dB. It offers a variety of tones including warble, sweep, pip, and continuous, making it versatile for different alert conditions.

The sounder is equipped with a rotary volume control for adjustable sound output and has two M20 knockouts to simplify installation and wiring. Its operating temperature range from -20°C to 70°C makes it adaptable to various climatic conditions.

Designed to be surface-mounted with a compact diameter of 105 mm, the device complies with RoHS standards, reflecting compliance with environmental and safety norms. It is intended for general industrial signalling and is not rated for hazardous areas.

Operates on 230V AC power supply with 12 mA current consumption. Durable ABS plastic housing with IP65 protection class. 32 selectable tones with volume adjustment up to 110 dB. Suitable for harsh environmental conditions with wide temperature tolerance.

Easy installation with 2 x M20 knockouts and surface mount design.

This electronic sounder from Cranford Controls is ideal for industrial, commercial, and automation system signalling tasks. Browse EnvMart for more signaling and control devices to meet your operational requirements.
