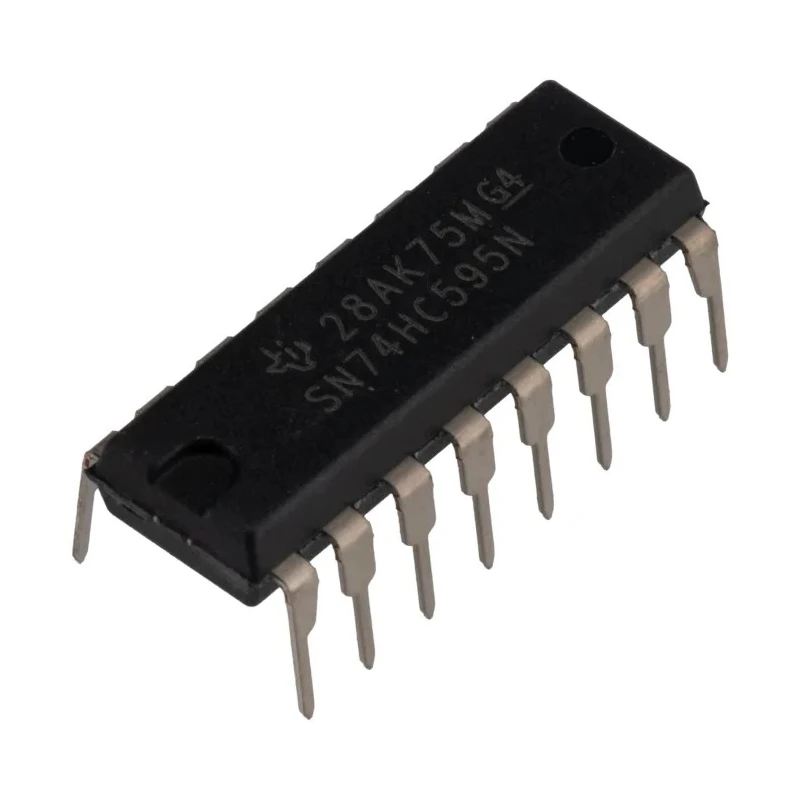

Texas Instruments 8-Stage Binary Shift Register, 16-Pin Through Hole PDIP, 2-6 V SN74HC595N

Texas Instruments SN74HC595N is an 8-stage binary shift register designed in a 16-pin through hole PDIP package. It operates over a voltage range of 2 to 6 volts, making it suitable for various industrial and electronic applications that demand reliable serial data transfer and storage. The device employs high-speed CMOS technology, combining fast operation with low power consumption, ideal for compact and efficient circuit designs.

This shift register is compatible with CMOS input and output logic levels, ensuring straightforward integration with contemporary digital circuits. It supports asynchronous preset and reset functions, allowing immediate control over the register states without the need for clock synchronization.

The maximum clock frequency varies with supply voltage: 5 MHz at 2 V, 25 MHz at 4.5 V, and up to 29 MHz at 6 V, providing flexibility depending on system requirements. The uni-directional design enables reliable serial data shifting, crucial in applications like data storage, transfer, and digital signal processing.

The component meets RoHS compliance, ensuring that it adheres to environmental safety standards by restricting hazardous substances. Its standard 16-pin PDIP package measures 19.69 mm in length and 4.57 mm in height, facilitating easy mounting via through-hole techniques on printed circuit boards.

With an operating temperature range from -40°C to +85°C, this device is suitable for demanding industrial environments. Common use cases include electronic counters, data storage registers, and digital control systems, widely applicable in industrial manufacturing, laboratory instrumentation, and electronic prototyping.

This device features 8 binary stages for shifting data serially. It supports a maximum clock frequency of up to 29 MHz at 6 V supply voltage. Designed using high-speed CMOS technology for low power consumption and high speed operation.

Compatible with input and output CMOS logic levels for easy interfacing. RoHS compliant ensuring environmental safety and industry standard compliance. Mount type is through hole suitable for easy PCB mounting. Operating temperature ranges from -40°C to +85°C, suitable for industrial applications.

Asynchronous preset and reset allow flexible control of counter states. Uni-directional shift register ensuring reliable data handling. Standard 16-pin PDIP form factor with dimensions of 19.69 mm length and 4.57 mm height.

Explore a broad range of semiconductor components like the SN74HC595N at EnvMart for industrial, laboratory, and manufacturing applications.

Explore more products in our Counter ICs category.
