Molex SPOX Series Right Angle Through Hole PCB Header, 3 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 22-05-7035

Free Delivery in India | Lowest Global Shipping Charges

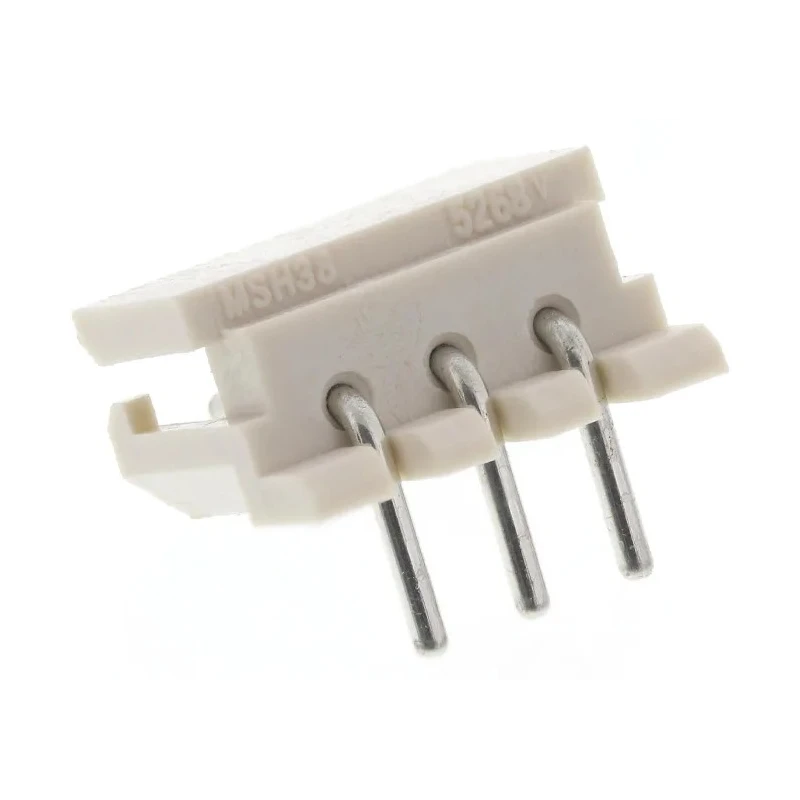

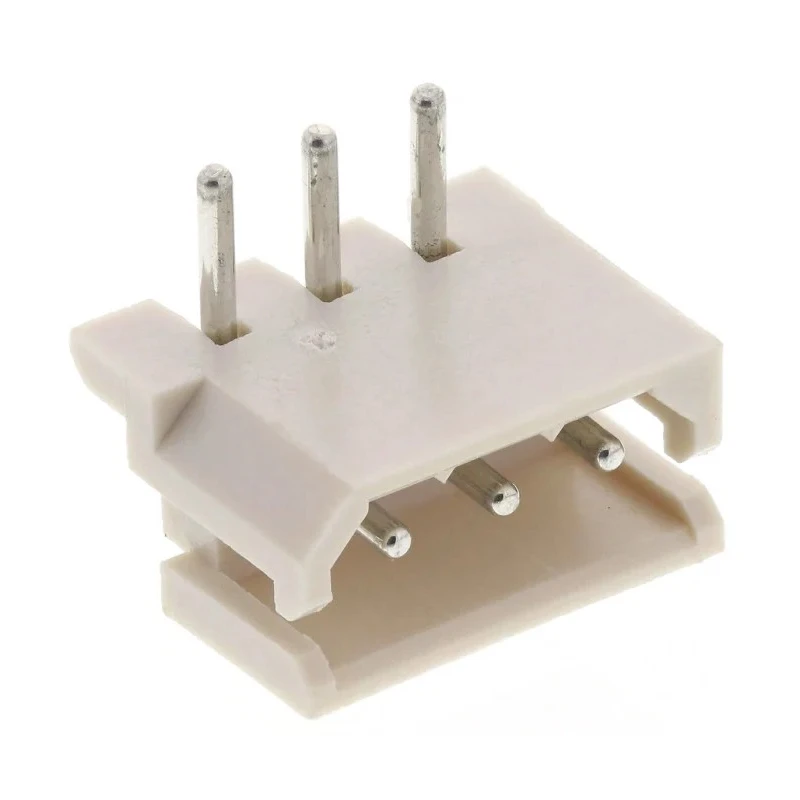

Molex SPOX Series Right Angle Through Hole PCB Header, 3 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 22-05-7035

Name: Molex SPOX Series Right Angle Through Hole PCB Header, 3 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 22-05-7035
Brand: Molex
SKU: 212106
Price: 0.4 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Designed for wire-to-board connection with a right angle solder termination.
Shrouded housing made of durable nylon for protection and reliable mating.
3 brass male contacts plated with tin to ensure good conductivity.
Rated for 3A current and 250V voltage operation.
Operates reliably between temperatures of -40°C to 105°C.
Features a friction lock mechanism for secure mating connectivity.
Tail pins measure 3.5 mm for effective PCB retention.
Low profile design suitable for compact electronic assemblies.

Product Description

Molex 22-05-7035 SPOX Series right angle through hole PCB header features a shrouded design and 3 male contacts arranged in a single row with a 2.5 mm pitch. This connector is engineered for wire-to-board applications requiring reliable electrical connections and mechanical stability.

The nylon housing provides durability and polarization to prevent mismating. Tin-plated brass contacts ensure consistent low-resistance connection and are rated for a current capacity of 3A and voltage rating of 250V. Tail pins of 3.5 mm length facilitate secure solder through hole mounting on printed circuit boards.

Rated for operation across a wide temperature range from -40°C to +105°C, this PCB header is suitable for harsh environments and versatile industrial applications including automotive, data communication, industrial machinery, medical devices, and networking equipment.

The connector includes a friction lock to secure mating with compatible wire housings, enhancing connection integrity in vibration-prone environments. The low profile and right angle orientation support compact PCB designs optimizing space usage.

Designed for wire-to-board connections with secure friction lock. Shrouded nylon housing offers protection and polarization. 3 brass male contacts with tin plating. Rated for 3A current and 250V voltage. Operating temperature range from -40°C to 105°C.

Right angle through hole mounting with 3.5 mm tail pin length. Suitable for automotive, industrial, medical and networking uses. Low profile, high reliability design. Manufactured in China by Molex.
