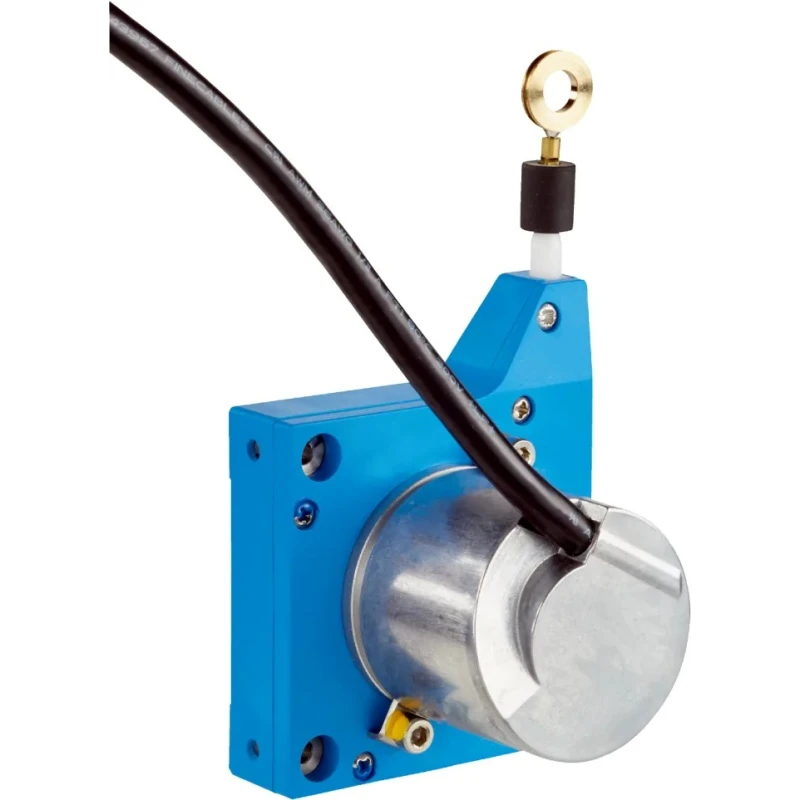

SICK ECOline Series Incremental Linear Measuring Encoder 5.5V, 2500 ppr, TTL Signal, 6 mm Shaft PFG05-A1KM0160 / 1060972

Free Delivery in India | Lowest Global Shipping Charges

SICK ECOline Series Incremental Linear Measuring Encoder 5.5V, 2500 ppr, TTL Signal, 6 mm Shaft PFG05-A1KM0160 / 1060972

Name: SICK ECOline Series Incremental Linear Measuring Encoder 5.5V, 2500 ppr, TTL Signal, 6 mm Shaft PFG05-A1KM0160 / 1060972
Brand: SICK
SKU: 188845
Price: 609.14 USD
Availability: InStock



Category Incremental Encoder Brand SICK Condition New

Specifications

Country of Origin	Germany
Brand	SICK
Model	PFG05-A1KM0160 / 1060972
IP Rating	IP65, IP50
Series	ECOline
Overall Width	55mm
Maximum Operating Temperature	70°C
Stroke	1.25 m
Minimum Operating Temperature	-20°C
Shaft Diameter	6mm
Overall height	55mm
Switching Frequency	300kHz
Terminal type	Cable
Interface Type	TTL
Pulses per Revolution	2500ppr
Standards/Approvals	cULus, CE
Maximum Supply Voltage	5.5V
Overall Depth	50mm
Encoder Technology	Incremental
Output Signal Type	TTL

Key Features

Supports high resolution with 2500 pulses per revolution for precise control.
Operates at a supply voltage of up to 5.5 V for efficient energy use.
Equipped with TTL output signal type and cable terminal for reliable connectivity.
Features IP65 and IP50 ratings for dust and water protection in industrial environments.
Functionally stable with operating temperature range from -20°C to +70°C.
Compact dimensions of 55mm width and height with 50mm depth facilitate versatile installation.
Switching frequency of 300 kHz ensures fast and accurate position feedback.
Constructed to meet cULus and CE standards for safety and quality assurance.

Product Description

SICK PFG05-A1KM0160 / 1060972 ECOline Series Incremental Linear Measuring Encoder is designed for industrial and automation applications requiring precise linear position feedback. It operates on a maximum supply voltage of 5.5 V and generates 2500 pulses per revolution, delivering exceptional resolution and accuracy with a 6 mm shaft diameter. The encoder uses incremental technology with a TTL output signal and features a cable terminal connection, suitable for varied machine interfaces.

With an operating temperature range from -20°C to 70°C and IP65 & IP50 ingress protection ratings, this encoder is robust against dust and water ingress, making it reliable in harsh factory environments. The compact size of 55mm height and width, and 50mm depth supports installation in constrained spaces. The device has a switching frequency rated at 300 kHz enabling responsive and accurate position detection.

This product adheres to recognized safety and quality standards including cULus and CE marking, ensuring compatibility and compliance in multiple regions. Applications include automation systems, robotics for precise movement tracking, packaging machinery for length measurement, material handling systems for operational monitoring, and CNC machines that demand precise linear positioning feedback.

Offers 2500 pulses per revolution for high precision. Includes cable terminal type for secure connections. IP65 and IP50 ratings provide dust and water protection. Switching frequency of 300 kHz enables fast response. Wide operating temperature from -20°C to 70°C ensures versatility.

Compact dimensions allow flexible installation. Meets cULus and CE safety and quality standards. Suitable for automation, robotics, and CNC applications requiring incremental feedback.

This linear measuring encoder is an essential component for industrial, manufacturing, laboratory, and automation environments where precision and durability are critical. It supports advanced positioning control in demanding applications.
