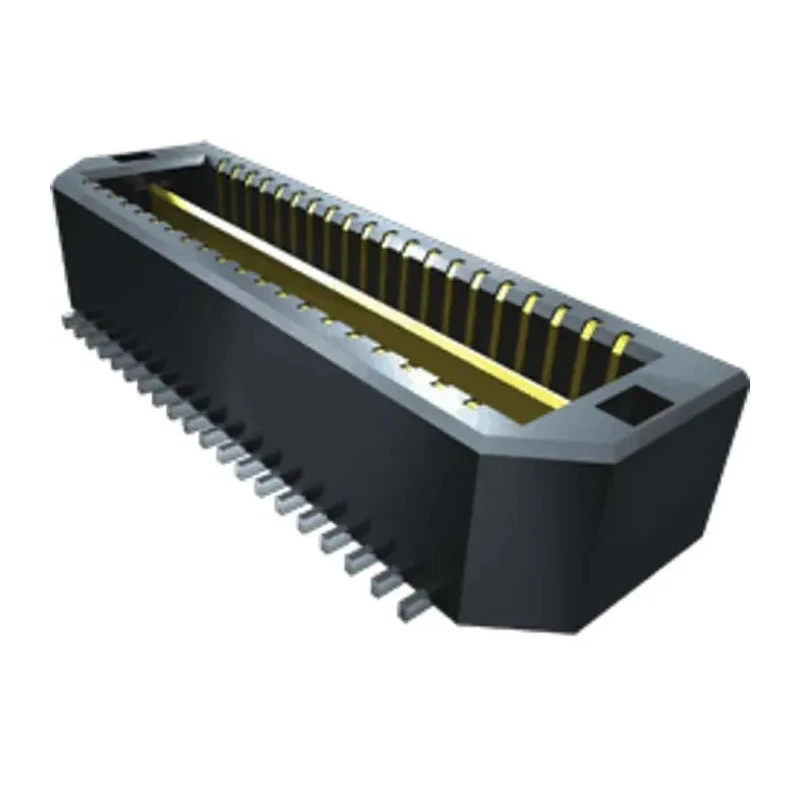

Samtec QTE Series Straight Surface PCB Header 80 Contacts 0.8 mm Pitch 2 Row Shrouded QTE-040-01-L-D-EM2

The Samtec QTE-040-01-L-D-EM2 is a high-performance straight surface PCB Header designed to provide reliable board-to-board connections in electronic assemblies. Featuring 80 phosphor bronze contacts arranged in two rows with a pitch of 0.8 mm, this connector ensures high-density signal integrity for complex circuits.

The housing is constructed using liquid crystal polymer, offering exceptional insulating properties and durability even under rigorous industrial and commercial environments. The gold-plated contacts enhance the electrical performance by preventing corrosion and ensuring low contact resistance over extended use.

Its shrouded design offers mechanical protection and alignment during mating, reducing the risk of bent contacts or misalignment in PCB assemblies. The header supports a voltage rating of 225 VAC and a maximum continuous current rating of 2 Amperes, making it suitable for a wide range of electronic devices and instrumentation equipment.

Operational temperature ranges from -55°C to 125°C, allowing reliable performance in harsh environmental conditions. The connector terminates through solder mounting and features male contact gender for compatibility with corresponding female connectors.

Ideal for applications in industrial electronics, telecommunications, computing hardware, and other high-density electronic systems that require robust and precise board interconnections.

Features a straight orientation with two rows of contacts. Housing is made from liquid crystal polymer for excellent insulation. Contacts are made of phosphor bronze with gold plating for superior conductivity and corrosion resistance.

This surface-mount header is shrouded to enhance connection security. Operates reliably from -55°C up to 125°C. Voltage rating is 225V AC, suitable for diverse electronic applications. Contact termination type is solder, male gender contacts included.

Supports continuous current up to 2 Amperes.

Samtec products are widely recognized for quality and performance in electronic component manufacturing. Explore the Samtec range for additional PCB connector solutions and other high-quality electronic components on EnvMart.
